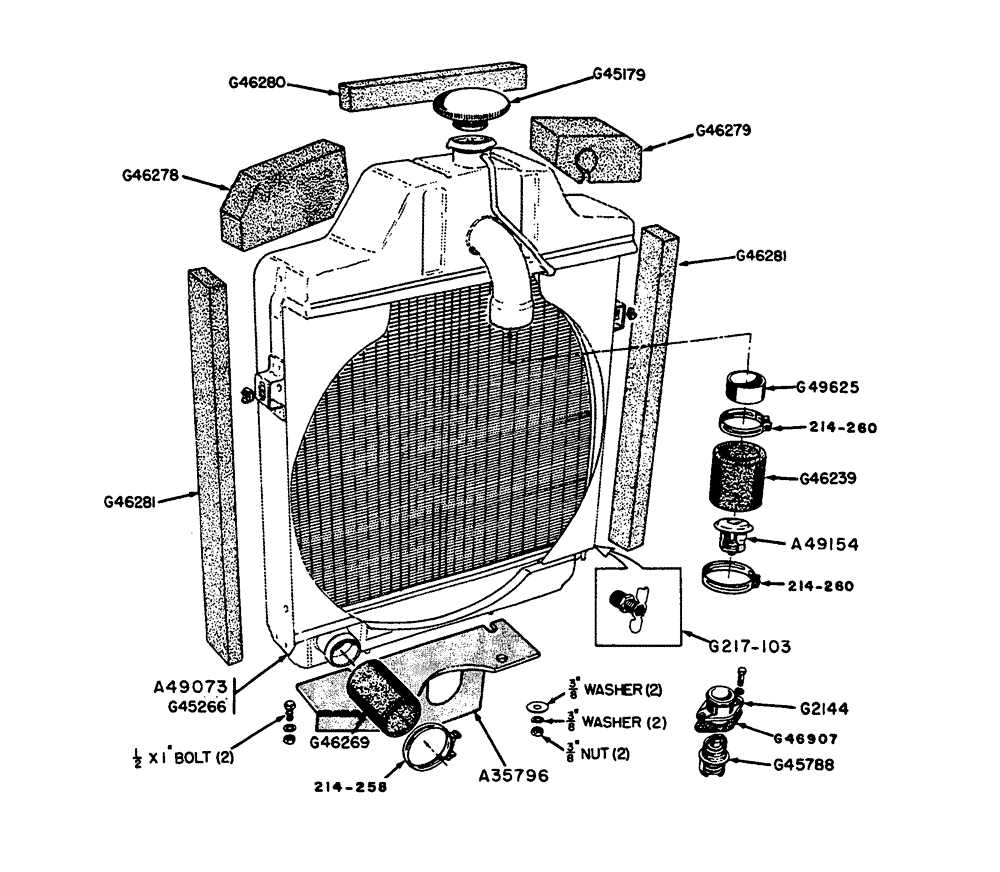

Запчасти Case IH 630 (033) - RADIATOR AND CONNECTIONS (02) - ENGINE

G2144

FITTING

CONNECTION - water outlet (Tractor #8191147 and after)

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

A35796

SUPPORT

- radiator (includes deflectors)

1шт.

1/2" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

A49154

X

THERMOSTAT - 180° (Before Tractor #8191147)

1шт.

G45179

CAP

- radiator (4 lbs. pressure)

1шт.

G45266

RADIATOR - (less cap)

1шт.

3/8" N.C. hex nut, lockwasher and plain washer

2шт.

A49073

RADIATOR - (less cap) w/Case-O-Matic

1шт.

3/8" N.C. hex nut, lockwasher and plain washer

2шт.

G45484

RESERVOIR

TANK - lower, Case-O-Matic radiator (Repairs only)

1шт.

G45788

THERMOSTAT - 180° (Tractor #8191147 and after)

1шт.

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

G46278

BAFFLE

- air, L.H. top

1шт.

G46279

BAFFLE

- air, R.H. top

1шт.

G46280

BAFFLE

- air, center top

1шт.

G46281

BAFFLE - air, side

2шт.

G46907

GASKET

- water outlet (Tractor #8191147 and after)

1шт.

G46925

SUPPORT - hose clamp (inside G46239 hose)

1шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- lower hose #28, 1.31/2.25 Type F Worm

2шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

upper #36, 1.81/2.75 Type F Worm

2шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

upper, Before tractor #8191147 #36, 1.81/2.75 Type F Worm

2шт.

217-103

COCK, DRAIN

VALVE, radiator (321E - 1/4"" P.T.)

1шт.
