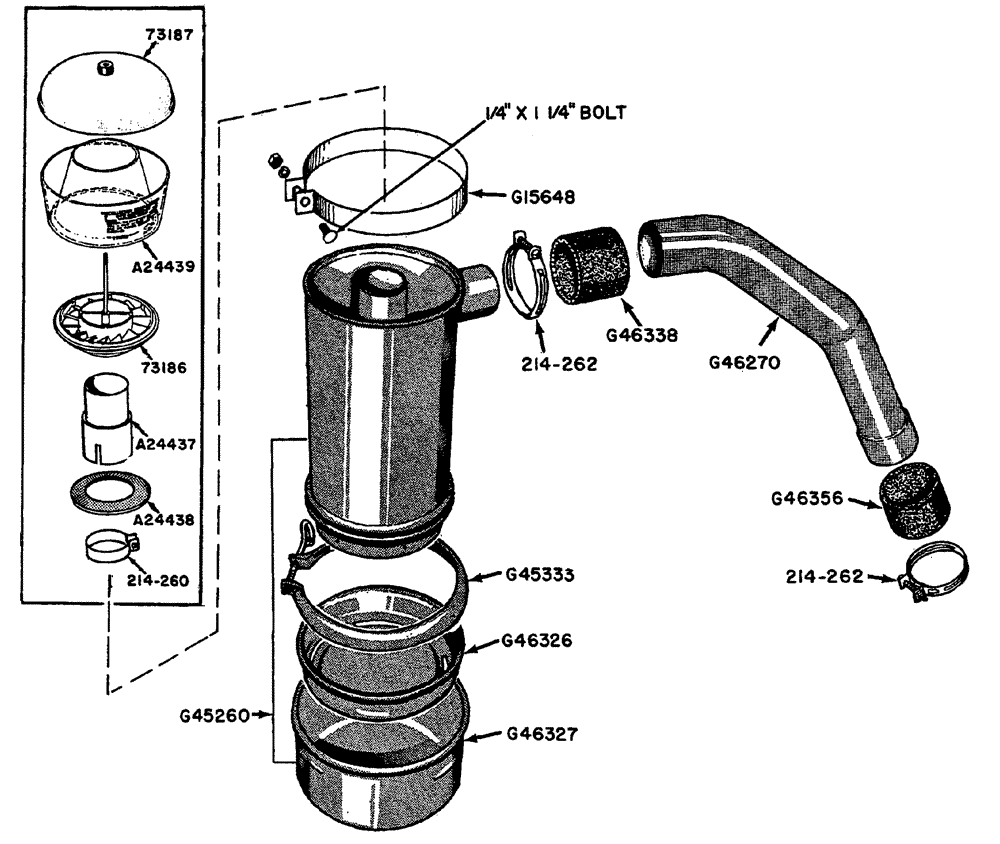

Запчасти Case IH 630 (032) - AIR CLEANER (02) - ENGINE

A24437

EXTENSION

PIPE - pre-cleaner

1шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- pipe #36, 1.81/2.75 Type F Worm

2шт.

A24438

SHIELD

- pre-cleaner pipe

1шт.

A24439

CLEANER

PRE-CLEANER ASSEMBLY (includes 73187 and 73186)

1шт.

73187

COVER

- pre-cleaner

1шт.

365413R1

BOWL

BODY - plastic, pre-cleaner

1шт.

G15648

BAND

CLAMP - air cleaner

1шт.

G45260

AIR CLEANER - complete (includes P/N's G45333, G46326 and G46327)

1шт.

G45333

CLAMP

- oil cup

1шт.

Includes Air Cleaner, P/N G45260

1шт.

G46270

TUBE - air cleaner to manifold 2.25" OD

1шт.

G46326

X

CUP oil - inner

1шт.

Includes Air Cleaner, P/N G45260

1шт.

G46327

X

CUP oil - outer

1шт.

Includes Air Cleaner, P/N G45260

1шт.

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Air cleaner to tube 2.25" ID x 3.00", SAE 20R2

1шт.

G46356

X

HOSE - tube to manifold (2-1/2" I.D. x 2-3/4" long)

1шт.

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.
