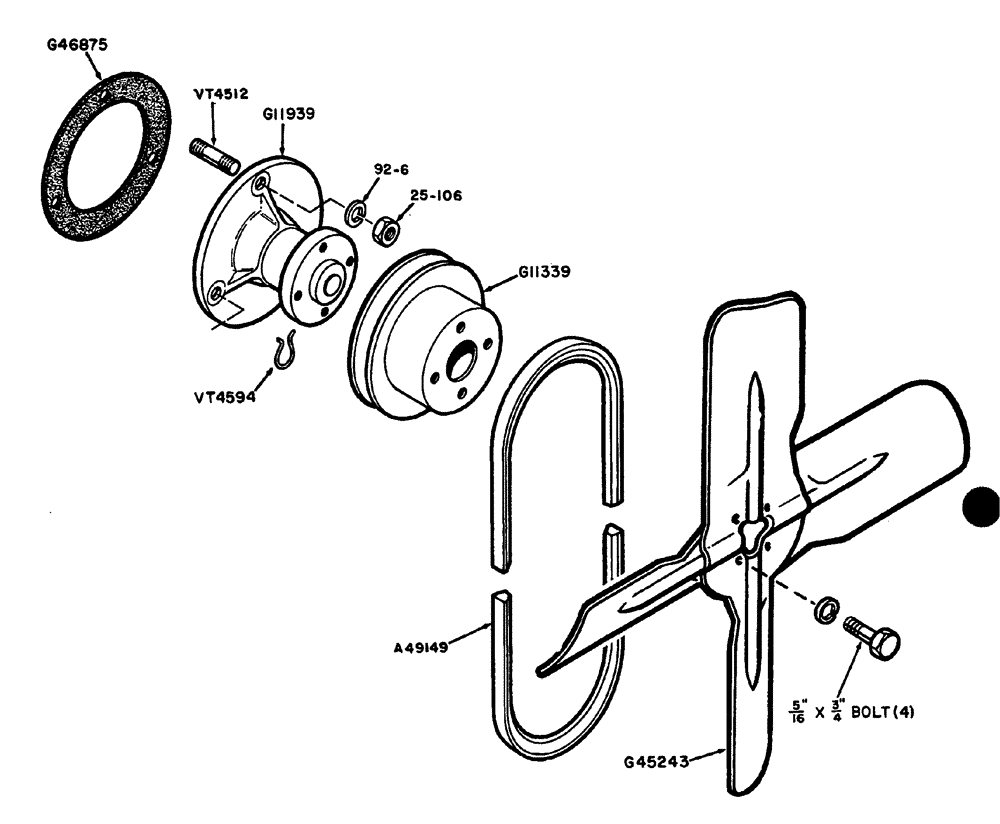

Запчасти Case IH 630 (031) - WATER PUMP AND FAN (02) - ENGINE

A49149

X

"V" BELT - fan drive

1шт.

G2075

SPARE PART BODY - (Use G11939)

1шт.

G11339

PULLEY

PULLEY - drive

1шт.

G11939

PUMP

WATER PUMP, complete (includes G46875 gasket)

1шт.

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Water Pump

1шт.

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

G45243

FAN

1шт.

.

5/16" x 3/4" N.C. hex hd. bolt w/lockwasher

4шт.

G46238

BELT,0.55" W x 17.78" L

Fan Drive, Use A49149

1шт.

G46875

GASKET

GASKET -, Serial Range: pump-head

1шт.

VT4594

X

RING - retainer

1шт.

VT4512

X

STUD - water pump

3шт.

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

3шт.

92-6

LOCK WASHER,3/8"

LOCK WASHER, , std. 3/8"

3шт.
