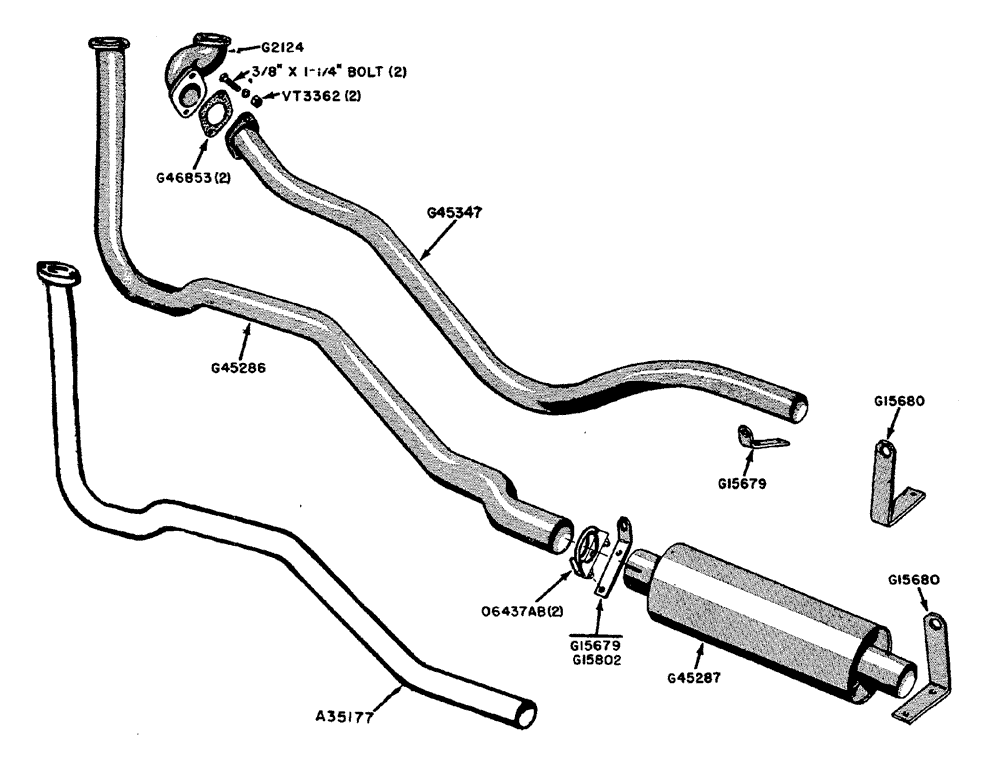

Запчасти Case IH 630 (030) - UNDERNEATH MUFFLER (02) - ENGINE

G2124

ELBOW - exhaust pipe to manifold (w/dry clutch drive only) Before trac. #8191147

1шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

G15679

BRACKET - front, muffler (Before tractor #6165137)

1шт.

G15680

BRACKET - rear, muffler

1шт.

G15802

BRACKET - front, muffler (Tractor #6165137 thru #8191147)

1шт.

G45286

PIPE - exhaust (w/Case-O-Matic drive) (Before tractor #8191147) See A35177

1шт.

G45287

MUFFLER

1шт.

G45347

PIPE CLAMP

PIPE - exhaust (w/dry clutch drive) (Before tractor #8191147) See A35177

1шт.

3/8" x 1-1/4" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

G46853

MANIFOLD GASKET

- pipe to elbow and, Serial Range: elbow-manifold

2шт.

06437AB

CLAMP - muffler (includes "U" bolt and 2-5/16" N.C. hex nuts)

2шт.

VT3362

X

NUT - brass, elbow to manifold (3/8" N.C.)

2шт.

A35177

PIPE - (Tractor #8191147 and after)

1шт.
