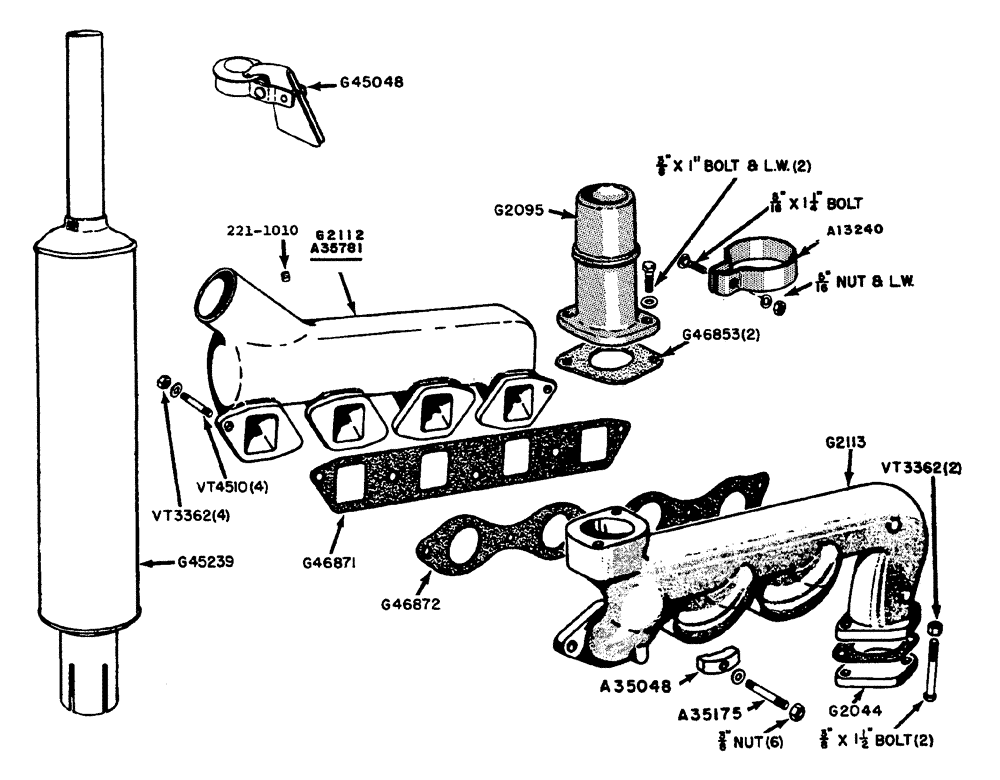

Запчасти Case IH 630 (029) - MANIFOLD AND UPRIGHT MUFFLER (02) - ENGINE

A35781

MANIFOLD - intake (Eng. #2028232 and after)

1шт.

G2044

LARGE PLATE

PLATE - cover, exhaust opening

1шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

G2095

FITTING

OUTLET- exhaust, Serial Range: manifold-muffler

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G2112

MANIFOLD - intake (Before eng. #2028232)

1шт.

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

A35175

STUD

- manifold to head (3/8" x 2-7/16")

6шт.

3/8" N.C. hex nut and lockwasher

6шт.

A35028

CLAMP

-, Serial Range: manifold-bead

6шт.

G45048

CAP

- weather, muffler

1шт.

G45239

MUFFLER

- upright

1шт.

A13240

CLAMP,2-5/8" ID

- muffler (includes 5/16" x 1-1/4" carr. bolt w/hex nut nut and lockwasher)

1шт.

G46853

MANIFOLD GASKET

- exhaust opening

2шт.

G46871

GASKET

- intake manifold

1шт.

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

VT3362

X

NUT - brass, manifold stud and opening cover (3/8" N.C.)

6шт.

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

4шт.

3/8" plain washer

4шт.

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe, intake manifold (1/4" P.T. sq. hd.) (Cadmium plated)

1шт.
