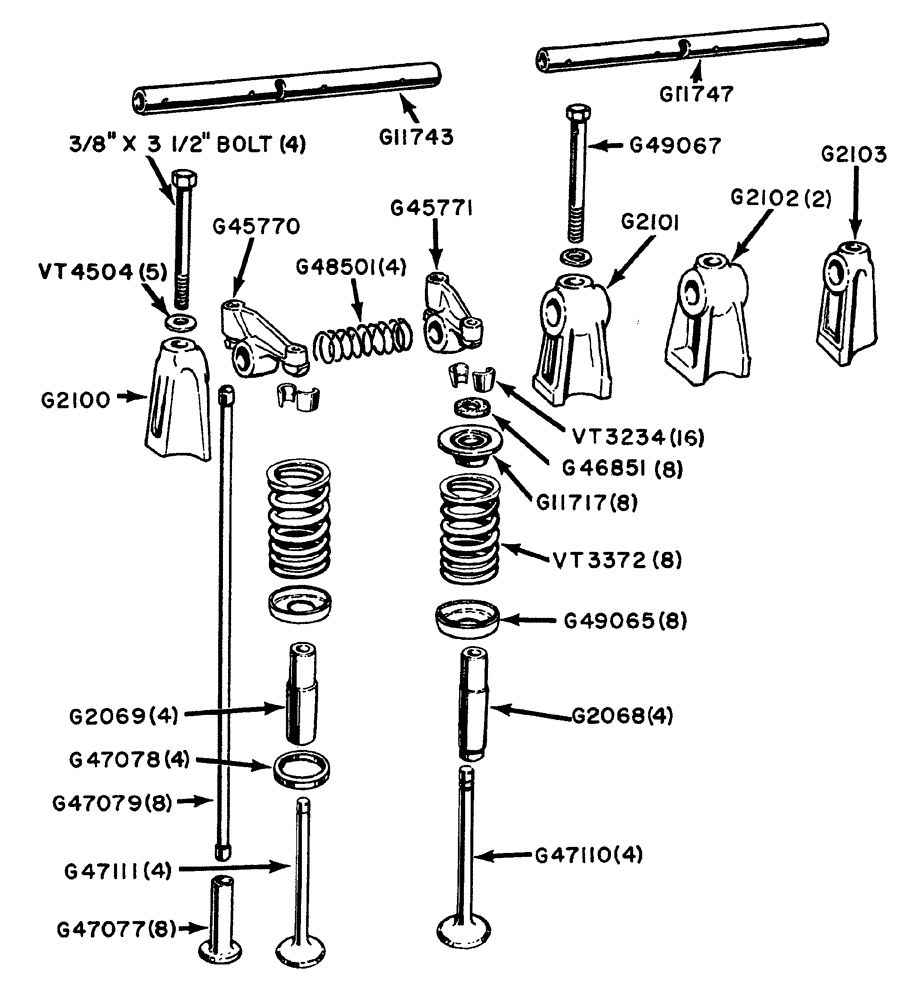

Запчасти Case IH 630 (028) - VALVES, PUSH RODS AND ROCKER ARMS-DIESEL (02) - ENGINE

G2100

BRACKET

- front, rocker arm shaft

1шт.

3/8" x 3-1/2" N.C. hex hd. bolt

1шт.

G2101

BRACKET

- center, rocker arm shaft

1шт.

G2102

BRACKET

- intermediate, rocker arm shaft

2шт.

3/8" x 3-1/2" N.C. hex hd. bolt

2шт.

G2103

X

BRACKET - rear, rocker arm shaft

1шт.

3/8" x 3-1/2" N.C. hex hd. bolt

1шт.

G11743

SHAFT

- rocker arm front

1шт.

G11747

X

SHAFT - rocker arm rear

1шт.

G45770

ARM

- rocker, R.H. (includes G49075 adjusting screw)

4шт.

G45771

ARM

- rocker, L.H. (includes G49075 adjusting screw)

4шт.

G48501

SPRING

- rocker arm shaft

4шт.

G49067

BOLT

- drilled center bracket (3/8" x 3-1/2" N.C. hex hd.)

1шт.

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm (not shown)

8шт.

VT4504

WASHER

- rocker arm bracket

5шт.

G2068

GUIDE

- intake valve stem (Use G11945), and push rods

4шт.

G2069

GUIDE

- exhaust valve stem (Use G11946), and push rods

4шт.

G11717

RETAINER

- valve spring (Use G11927), and push rods

8шт.

G11945

GUIDE

- intake valve stem (set of 4), and push rods

1шт.

G11946

GUIDE

- exhaust valve stem (set of 4), and push rods

1шт.

G11947

VALVE

S - intake (set of 4), valves and push rods

1шт.

G11948

KIT

VALVES - exhaust (set of 4), and push rods

1шт.

G11927

RETAINER

set of 4-G11717 retainers and 8-VT3234 locks, valves and push rods

2шт.

G11929

LOCK

set of 4-VT3234 valve spring retainer locks, and push rods

4шт.

G11986

KIT

set of 4-G47078 exhaust valve seat inserts, and push rods

1шт.

G46851

SEAL

- rubber, intake valve stem, and push rods

4шт.

G47077

TAPPET

- valve and push rods

8шт.

G47078

INSERT - exhaust valve seat (Use G11986), and push rods

4шт.

G47079

ROD

- push, valves and push rods

4шт.

G47110

TUBE

VALVE - intake (Use G11947), and push rods

4шт.

G47111

VALVE - exhaust (Use G11948), and push rods

4шт.

G49065

SEAT

- valve spring, and push rods

8шт.

VT3234

X

LOCK - retaining, valve spring (See G11927 and G11929), and push rods

16шт.

VT3372

SPRING

- valve and push rods

8шт.
