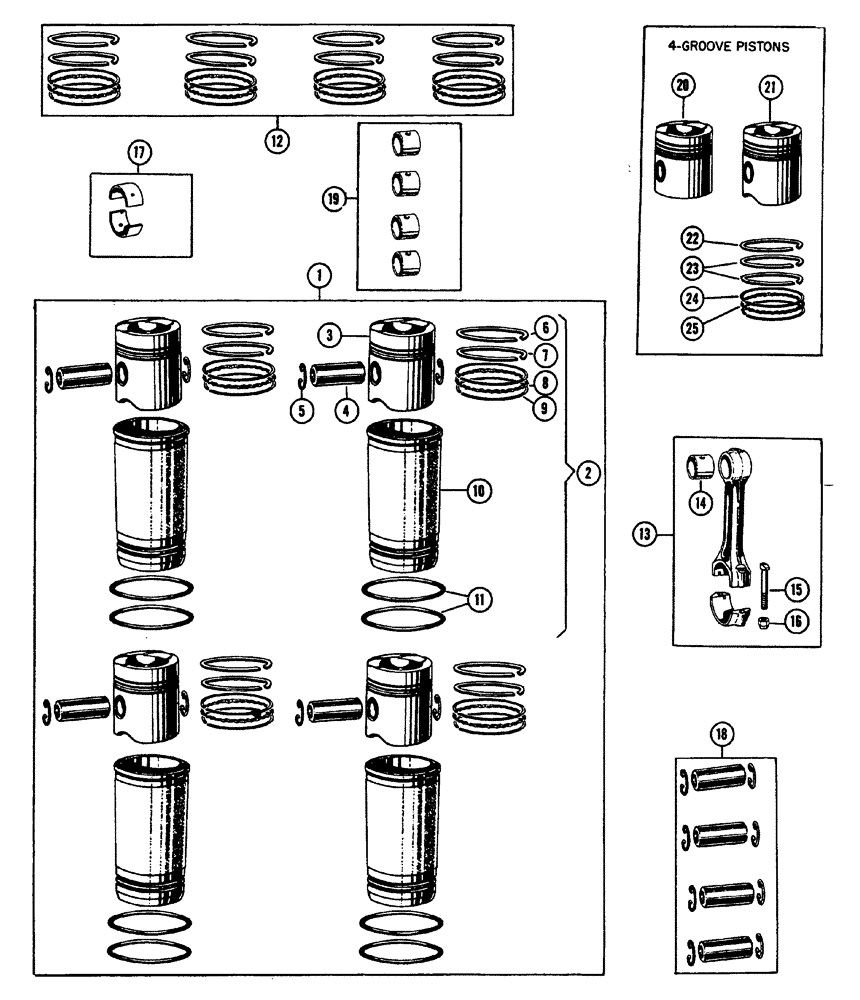

Запчасти Case IH 630 (025) - PISTONS AND CONNECTING RODS (02) - ENGINE

1

A35772

KIT, LINER, PISTON R

PISTON and SLEEVE, matched set of 4 (3 groove)

1шт.

2

A3 6391

PISTON & SLEEVES - matched (3 groove)

4шт.

3

G2137

X

PISTON - (3 grooves)

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - wrist (See ref. 18)

1шт.

5

G46702

RING, LOCKING

RING - retaining (See ref. 18)

8шт.

6

G4819

RING

- top, piston

1шт.

7

G4817

RING

- compression piston

1шт.

8

G47174

SPRING

SPACER - oil rail

1шт.

9

G47155

RAIL

- oil piston

2шт.

10

G2110

SLEEVE

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O"- RING - sleeve packing

2шт.

12

G37075

RING

- set of 4 pistons

1шт.

13

A49023

X

CONNECTING ROD ASSEMBLY

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - (See ref. 19)

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

G11944

BUSHING

LINERS - bearing, conn. (Std.)

4шт.

G37021

X

LINERS - bearing, (.002" undersize)

4шт.

G37022

X

LINERS - bearing, (.010" undersize)

4шт.

G37023

X

LINERS - bearing, (.020" undersize)

4шт.

G37024

X

LINERS - bearing,(.030" undersize)

4шт.

18

A35771

KIT

PIN - set piston (incl. retaining rings)

1шт.

19

G11953

BUSHING

- 4 connecting rods

1шт.

20

G2065

PISTON - (4 groove) Must be used in engines before #515510655 for individual replacement After #515510655 use ref. 2 (A36391)

4шт.

21

NSS

NOT SOLD SEPARAT

PISTON - (4 groove) Use Ref. 1 or 2

1шт.

22

G4813

RING - top (4 groove piston)

4шт.

23

G4812

RING - compression (4 groove piston)

8шт.

24

G47134

RAIL- oil ring (4 groove piston)

8шт.

25

G47133

SPACER - oil ring (4 groove piston)

4шт.
