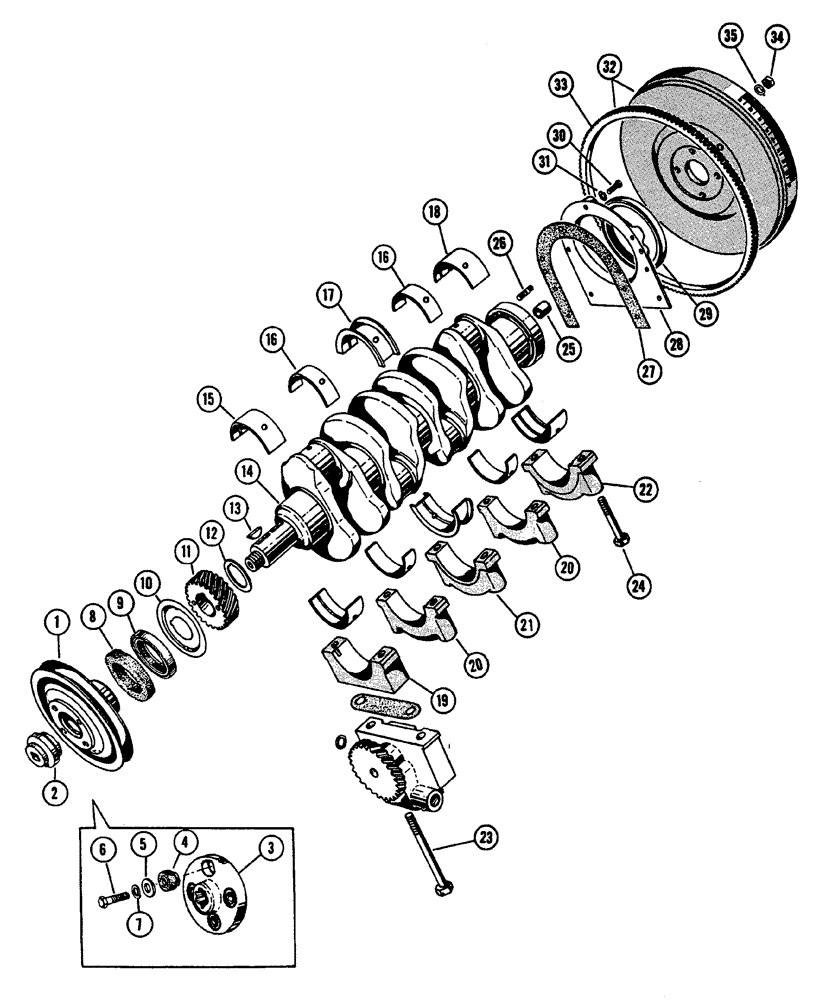

Запчасти Case IH 630 (024) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

G11342

X

PULLEY - fan and generator drive

1шт.

2

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

3

G36217

HUB ASSY.

COUPLING - flexible, pump dive, (incl. Ref. 4)

4шт.

4

G36905

BLOCK

and BUSHING coupling

4шт.

5

VT3340

X

WASHER cplg. bolt (3/4" 0.D. x 29/64" I.D. x 16 ga.

4шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

7

92-7

LOCK WASHER,7/16"

std. 7/16"

4шт.

8

VT3380

PULLEY - dust seal

1шт.

9

VT3373

OIL SEAL, front crankshaft

1шт.

10

VT3220

X

SLINGER - oil

1шт.

11

VT3225

X

GEAR - crankshaft (24 T)

1шт.

12

VT3377

X

SPACER - thrust, crankshaft

1шт.

13

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft

2шт.

14

A49025

CRANKSHAFT - (incl. Ref. 25)

1шт.

15

G11940

X

LINERS - front bearing, upper & lower (std.)

1шт.

G37005

KIT

LINERS - front bearing, upper & lower (.002" undersize)

1шт.

G37006

X

LINERS - front bearing, upper and lower (.010" undersize)

1шт.

G37007

KIT

LINERS - front bearing, upper and lower (.020" undersize)

1шт.

G37008

X

LINERS - front bearing, upper and lower (.030" undersize)

1шт.

16

G11942

JOURNAL

LINERS - intermediate brg upper and lower (std.)

2шт.

G37013

KIT

LINERS - intermediate brg upper & lower (.002" undersize)

1шт.

G37014

X

LINERS - intermediate brg upper & lower (.010" undersize)

2шт.

G37015

KIT

LINERS - intermediate brg upper and lower (.030" undersize)

2шт.

17

G11941

SLEEVE CYLINDER

LINERS - center brg upper and lower (std.)

1шт.

G37009

KIT

LINERS - center brg upper and lower (.002" undersize)

1шт.

G37010

X

LINERS - center brg upper & lower (.010" undersize)

1шт.

G37011

KIT

LINERS - center bearing, upper and lower (.020" undersize)

1шт.

G37012

KIT

LINERS - center brg upper & lower (.030" undersize)

1шт.

18

G11943

X

LINERS - rear brg , upper and lower (std.)

1шт.

G37017

KIT

LINERS - rear brg upper and lower (.002" undersize)

1шт.

G37018

X

LINERS - rear brg upper and lower (.010" undersize)

1шт.

G37019

X

LINERS - rear brg upper and lower (.020" undersize)

1шт.

G37020

KIT

LINERS - rear brg upper and lower (.030" undersize)

1шт.

19

G2126

CAP

- front bearing

1шт.

20

G2128

CAP

- intermediate bearing

2шт.

21

G2127

CAP

- center bearing

1шт.

22

G2129

CAP

- rear bearing

1шт.

23

G49077

BOLT

- oil pump and frt. Brg. cap (1/2" x 5-1/8")

2шт.

24

G49078

BOLT - bearing cap (1/2" x 4-l/2")

8шт.

25

VT3370

X

BUSHING - pilot, crankshaft

1шт.

26

VT4513

X

STUD -, Serial Range: flywheel-crankshaft

4шт.

27

G46802

GASKET

- retainer, rear oil seal

1шт.

28

G2017

RETAINER

- rear oil seal

1шт.

29

G13824

RUBBER SEAL

SEAL - oil, rear

1шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

32

G11859

FLYWHEEL

- w/11" H.D. clch. (includes ref. 33)

1шт.

G11860

FLYWHEEL

- w/Torque Converter drive (incl. Ref. 33)

1шт.

G11864

FLYWHEEL, w/10" clutch (incl. Ref. 33)

1шт.

33

A49020

X

GEAR - ring, starting motor (135T)

1шт.

34

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, flywheel to crankshaft

4шт.

35

92-7

LOCK WASHER,7/16"

N.F. hex flywheel to crankshaft 7/16"

4шт.
