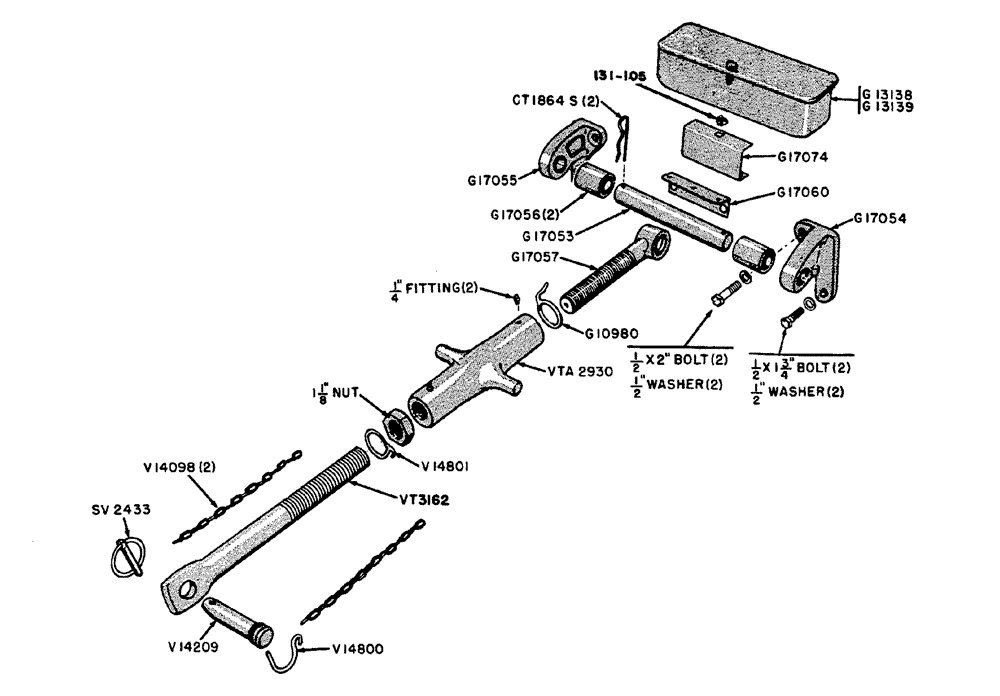

Запчасти Case IH 630 (125) - EAGLE HITCH TURNBUCKLE AND TOOL BOX (08) - HYDRAULICS

G10980

HOOK - carrying, turnbuckle

1шт.

G13138

BOX tool - (w/o Eagle Hitch)

1шт.

G13139

BOX - tool, w/brackets (w/Eagle Hitch)

1шт.

G17053

SHAFT - turnbuckle pivot

1шт.

G17054

BRACKET - R.H. pivot, turnbuckle

1шт.

1/2" x 1-3/4" N.C. hex hd. bolt w/lockwasher

1шт.

G17055

BRACKET - L.H. pivot, turnbuckle

1шт.

1/2" x 1-3/4" N.C. hex hd. bolt w/lockwasher

1шт.

G17056

SPACER - pivot shaft

2шт.

G17057

EYE - front, adjusting link

1шт.

G17060

BRACKET - hook-up, turnbuckle

1шт.

1/2" x 2" N.C. hex hd. bolt w/lockwasher

2шт.

G17074

SUPPORT - tool box

1шт.

3/8" x 1-3/4" N.C. hex hd. bolt w/lockwasher

2шт.

1502286C2

NUT,Floating Cage, 5/16"-18

- tool box bracket (5/16" cage nut)

1шт.

VT600

TURNBUCKLE, (Use VTA2930)

1шт.

VT3162

EYE - rear, adjusting link

1шт.

1-1/8" N.C. hex nut

1шт.

VTA2930

TURNBUCKLE (Includes 1/4" str. drive fittings Lincoln #5029)

1шт.

V14098

CHAIN - pin retaining

2шт.

V14209

X

PIN - mast

1шт.

V14800

"S" HOOK - small

1шт.

V14801

SET OF BELTS

"S" Hook - large

1шт.

CT1864S

X

PIN - spring, pivot shaft retaining

2шт.

SV2433

X

PIN - retaining and RING ASSEMBLY, (Klick Pin)

1шт.
