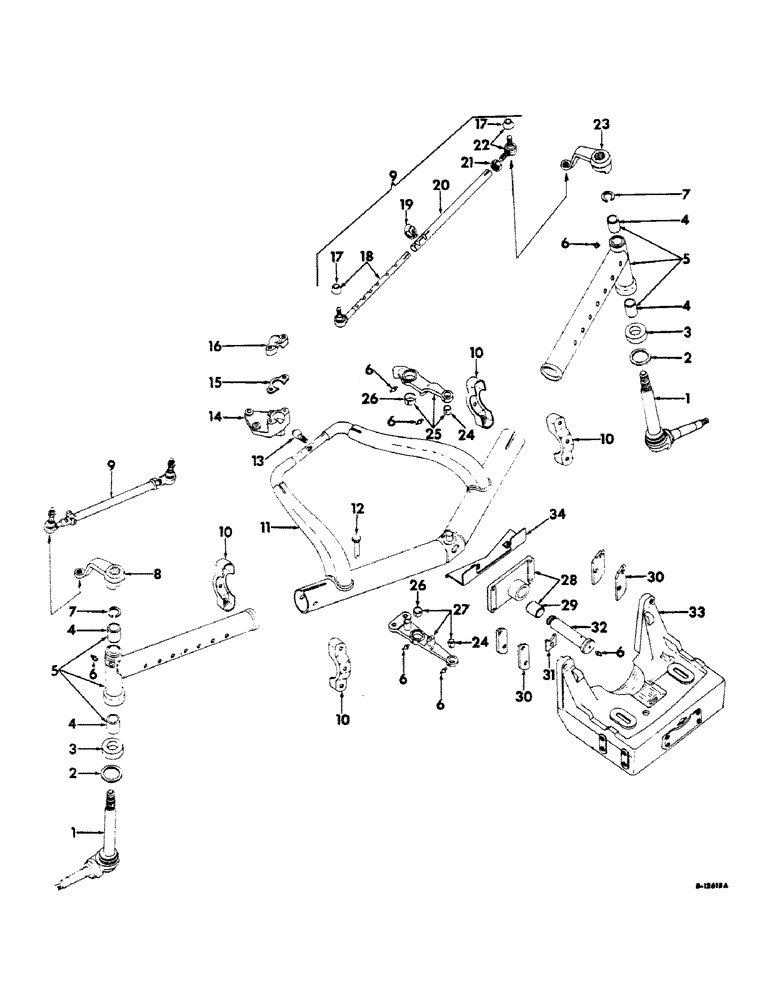

Запчасти Case IH 606 (122) - FRONT AXLE, STEERING KNUCKLES, ADJUSTABLE FRONT AXLE AND SUPPORTS (04) - FRONT AXLE

1

406265R92

STEERING KNUCKLE

KNUCKLE ASSEMBLY, steering (composed of (1) knuckle 369143R1 (NSS), (1) oil seal 48539DA, (1) post 379547R1 (NSS), (1) shield 48541D) (Replaces 379546R91)

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" slotted

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

3

369131R91

THRUST BEARING

steering knuckle thrust

2шт.

4

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle post

4шт.

5

379641R91

EXTENSION

ASSEMBLY, front axle

2шт.

6

110161

FITTING, 3/16" straight drive type lubrication (optional with 125617)

7шт.

6

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 110161)

7шт.

7

361850R1

RING

steering knuckle arm snap

2шт.

8

379643R1

LEVER

ARM, steering knuckle RH

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8NF jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4" x .0478 ga

1шт.

9

379549R91

ROD

TIE ROD ASSEMBLY, adjustable

2шт.

10

361851R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8 x 4" cap, Course Threads

4шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

11

379556R91

AXLE W/BALL, 369136R1 and nut 19441R1 assembly, front

1шт.

12

385151R1

PIN

cylinder mounting bracket

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

Q3501

WASHER

25/32 x 1-1/4" x 16 ga

1шт.

13

369136R1

BALL

stay rod socket

1шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8" Esna elastic stop

1шт.

14

380620R1

BRACKET, stay rod ball

1шт.

377871R1

SCREW, 5/8 x 1-1/2" cap

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

15

368613R1

SHIM

stay rod ball bracket cap (.0149")

1шт.

16

368614R2

CAP

stay rod ball bracket

1шт.

375492R1

SCREW,Hex, 1/2"

1/2 x 2" cap

2шт.

103329

WASHER,1/2"

LOCK, 1/2"

2шт.

365455R1

WIRE, cap screw lock

1шт.

17

382562R1

SEAL

COVER, tie rod end dust

4шт.

18

379552R91

END

W/COVER, 382562R1 and nut, 451079 assembly, tie rod (adjustable)

2шт.

451079

NUT, 5/8"NF lock

2шт.

578274R1

WASHER

21/32 x 1" x 11 ga.

2шт.

19

375620R1

CLAMP

tie rod

2шт.

25-118

NUT,1/2"-20, G5

1/2NF

2шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2NF x 2-1/2" cap

2шт.

106500

WASHER, 1/2" light lock

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16" x .095 ga.

2шт.

20

379550R1

TUBE,0.948" ID, .333" OD, 17" Length

tie rod

2шт.

21

374062R1

JAM NUT

NUT, tie rod end

2шт.

22

379551R91

SOCKET

END W/COVER, 382562R1 and nut, 451079 assembly, tie rod (threaded)

2шт.

451079

NUT, 5/8NF lock

2шт.

578274R1

WASHER

21-32 x 1" x 11 ga

2шт.

23

379642R1

LEVER

ARM, steering knuckle LH

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8NF jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4" x 0478 ga.

1шт.

24

379554R1

BUSHING,25.43mm ID x 28.57mm OD x 19.05mm L

BUSHING, cylinder support arm-small

2шт.

25

379553R11

LEVER

ARM SUPPORT, upper cylinder support

1шт.

26

379748R1

BUSHING

cylinder support arm-large

2шт.

27

379555R11

LEVER

ARM ASSEMBLY, lower cylinder support

1шт.

179891

SHAFT

SCREW, 1/2 x 2-1/2" cap

2шт.

28

379557R11

BRACKET ASSEMBLY, front axle pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

29

379531R1

BUSHING,44.48mm ID x 47.65mm OD x 50.8mm L

front axle pivot

1шт.

30

379559R1

STOP, front axle

4шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8 x 4-1/4" cap, Course Threads

4шт.

31

379533R1

STOP

LOCK, front axle pivot pin (used with pin, 379532R1)

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

31

383181R11

LOCK ASSY

LOCK ASSEMBLY, front axle pivot pin (used with pin, 379532R2)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

32

379532R2

HITCH PIN

PIN, front axle pivot (for service replacement on pin, 379532R1, also order lock assembly, 383181R11)

1шт.

33

375251R4

BOLSTER, front

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8 x 2-3/4" cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

387357R11

SHIELD ASSEMBLY, air deflector international 606 series with serial no. 4444 and above

1шт.
