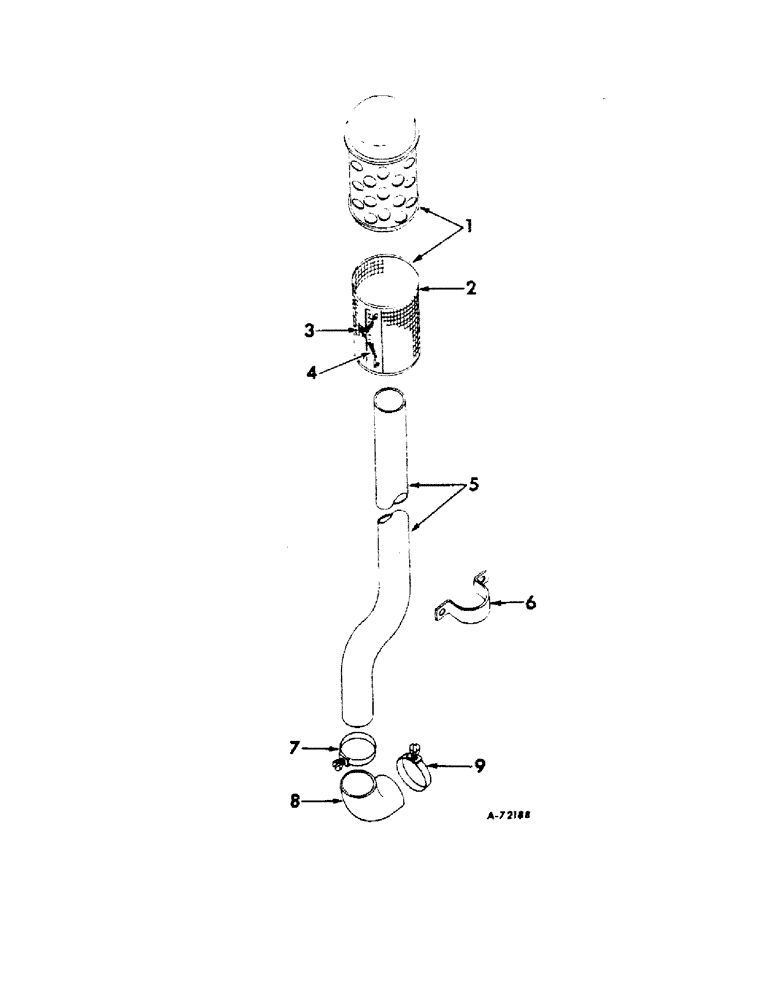

Запчасти Case IH 606 (043) - FUEL SYSTEM, PRE-SCREENER (02) - FUEL SYSTEM

1

353413R92

PRE-SCREENER ASSEMBLY

1шт.

2

353638R91

SCREEN

ASSEMBLY, pre-screener

1шт.

3

353758R1

CLIP

screen lock spring

1шт.

4

353639R1

VALVE SPRING

SPRING, screen lock tension

1шт.

5

382399R1

PIPE, pre-screener 2.5" OD, 25.8, 2.9" Length

1шт.

6

380907R1

SUPPORT, pre-screener pipe

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 3/4" cap

2шт.

7

39240H

CLAMP

hose upper

1шт.

8

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

9

29976D

CLAMP, hose lower

1шт.
