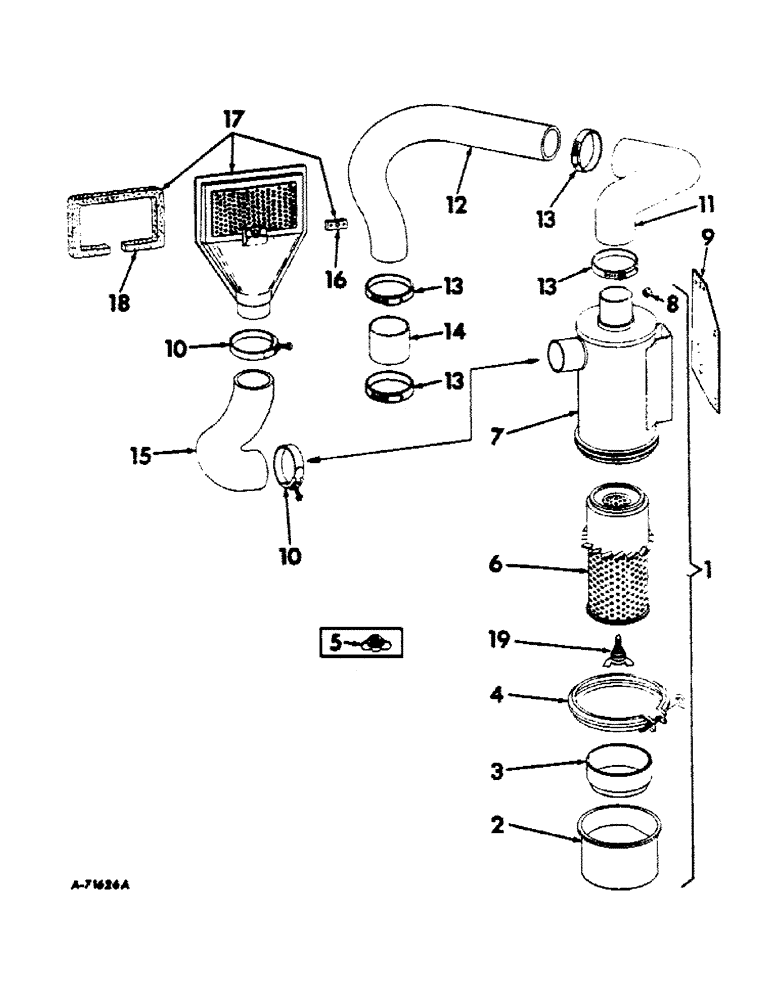

Запчасти Case IH 606 (040) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

1

380347R92

CLEANER ASSEMBLY, air

1шт.

2

381341R91

CUP

ASSEMBLY

1шт.

3

381346R1

BAFFLE

SKIRT, baffle

1шт.

4

377953R91

CLAMP

ASSEMBLY

1шт.

5

381342R92

WING NUT

NUT W/GASKET ASSEMBLY (serial no., Serial Range: 501-5569)

1шт.

6

389567R91

FILTER, ELEMENT

ELEMENT ASSEMBLY

1шт.

7

BODY, air cleaner (not serviced separately-order-air cleaner assembly)

1шт.

8

893431R1

CAP, service indicator outlet

1шт.

9

379874R1

BRACKET, air cleaner and service indicator

1шт.

SCREW, 3/8 x 3/4" cap

2шт.

SCREW, 5/8 x 1-1/2" cap

2шт.

10

29978D

CLAMP

air cleaner inlet hose

2шт.

11

379875R1

HOSE, air cleaner outlet

1шт.

12

369495R1

PIPE, air cleaner outlet (gasoline)

1шт.

12

371684R2

PIPE, air cleaner outlet (L.P. Gas)

1шт.

13

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner hose

4шт.

14

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

15

379880R1

HOSE, air cleaner inlet

1шт.

16

381366R1

PLATE, air intake lock

1шт.

381367R1

RIVET, .088 x 23/64" oval-hd tubular

2шт.

17

379877R91

INTAKE ASSEMBLY, air

1шт.

18

369503R1

GASKET, air intake chamber

1шт.

19

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSEMBLY, element (serial no. 5570 and above)

1шт.
