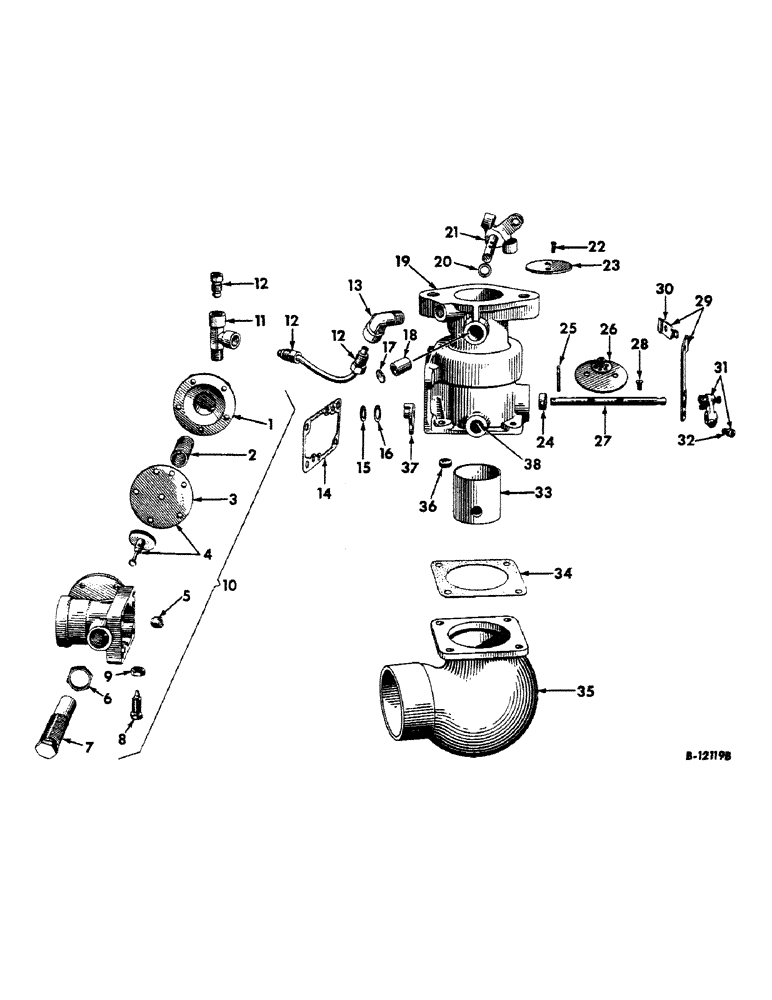

Запчасти Case IH 606 (038) - FUEL SYSTEM, CARBURETOR, L.P. GAS (02) - FUEL SYSTEM

382043R91

CARBURETOR ASSEMBLY

1шт.

359623R1

COVER, economizer

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

no. 8 x 5/8" slt fil-hd-pltd mach

5шт.

131182

WASHER, LOCK

WASHER, no. 8 cd-pltd lock

5шт.

2

128071R1

SPRING, economizer

1шт.

3

113504R1

DIAPHRAGM, economizer

1шт.

4

359621R91

DIAPHRAGM ASSEMBLY, economizer

1шт.

5

373189R1

SCREW, economizer bleed (not included in reference 10)

1шт.

6

56430D

NUT, fuel adjusting screw lock

1шт.

7

56429D

SCREW, fuel adjusting

1шт.

8

359620R1

SCREW, starting adjusting

1шт.

9

113506R1

NUT, starting adjusting screw lock

1шт.

10

373537R91

INLET AND ECONOMIZER ASSEMBLY, gas (less Ref. 5)

1шт.

132203

SCREW, no. 12 x 7/8" slt-fil-hd cd-pltd mach Slotted Fil Hd, #12-24 x 7/8"

4шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd light

1шт.

11

19272R1

TEE, 1/8 x 90" two-way (for 3/16 tube)

1шт.

12

19983R1

NUT, coupling

3шт.

13

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8 x 90" (for 3/16 tube)

1шт.

14

359624R1

GASKET, inlet and economizer

1шт.

15

37183D

WASHER, valve lever

1шт.

16

359615R1

WASHER, spring

1шт.

17

47856H

PLUG, 1/2" brs. expansion

1шт.

18

37024D

BUSHING, throttle bearing

2шт.

19

374859R91

BODY AND THROTTLE ASSEMBLY, partial (composed of (1) body (NSS), (2) bushing 37024D, (1) disc 374860R1, (1) nozzle 64835D, (1) oil seal 64837D, (1) plug 13123D, (1) plug 47856H, (2) screw 56370D, (1) shaft and stop 373536R91

1шт.

20

64837D

OIL SEAL, throttle shaft

1шт.

21

373536R91

SHAFT AND STOP ASSEMBLY, throttle

1шт.

NLS

NO LONGER SERVICED

no. 10NF x 5/8" slt-fil-hd cd-pltd mach

1шт.

22

56370D

SCREW, throttle shaft

2шт.

23

374860R1

DISC, throttle

1шт.

24

58899D

WASHER, dust

1шт.

25

359616R1

PIN, valve lever

1шт.

26

128068R91

DISC ASSEMBLY, spring loaded choke

1шт.

27

128069R1

SHAFT, choke

1шт.

28

56365D

SCREW, choke shaft

2шт.

29

58889D

SUPPORT ASSEMBLY, choke tube

1шт.

443799

SCREW, no. 8 x 1/4" slt binding hd cd-pltd mach

2шт.

30

56389D

CLAMP, choke tube

1шт.

120611

NUT,#10 - 32

no. 10NF

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

no. 10NF x 3/8" slt-fil-hd cd-pltd mach

1шт.

31

275583R91

LEVER ASSEMBLY, choke

1шт.

32

36756D

SCREW, choke lever set

1шт.

33

382045R1

VENTURI

1шт.

132198

SCREW, no. 12 x 3/4" slt-fil-hd cd-pltd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd light lock

1шт.

34

128073R1

GASKET, air intake elbow

1шт.

35

373538R1

ELBOW, air intake

1шт.

NLS

NO LONGER SERVICED

SCREW, no. 12 x 5/8" slt-fil-hd cd-pltd mach

4шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd light lock

4шт.

36

13123D

PLUG, 3/16" brs. expansion

1шт.

37

359614R1

LEVER, valve

1шт.

38

64835D

NOZZLE, balance tube

1шт.

387444R92

PACKAGE, carburetor gasket (consists of (1) gasket 66453H, (1) gasket 128073R1, (1) gasket 359624R1, (1) gasket 383376R1, (1) seal 58899D, (1) seal 64837D)

1шт.
