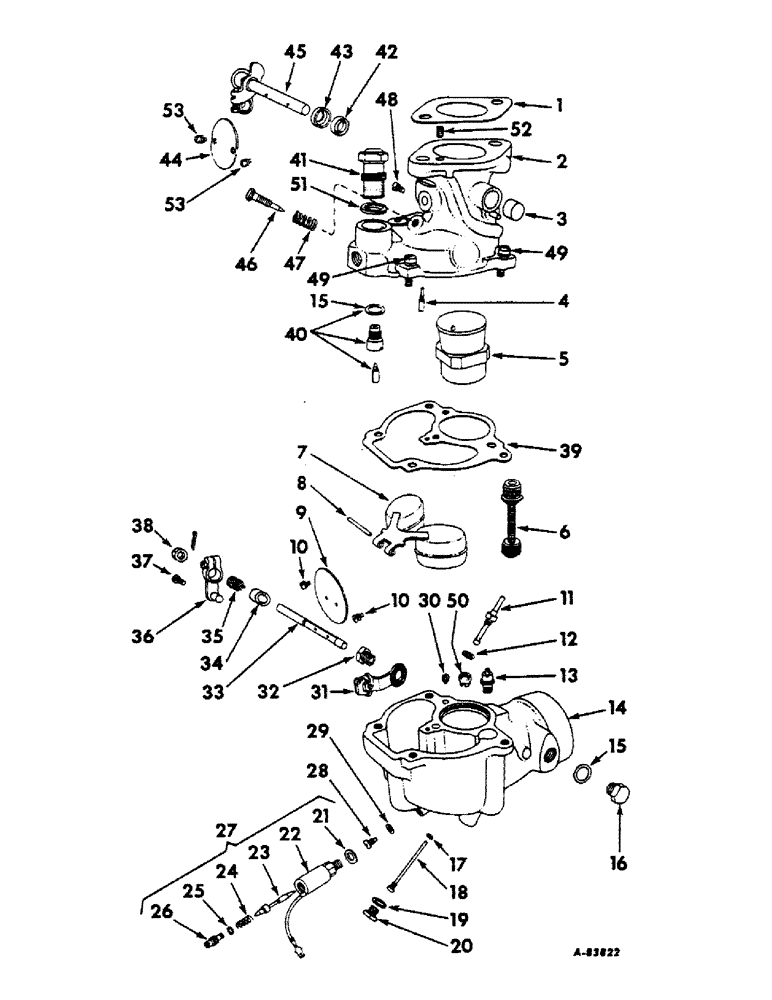

Запчасти Case IH 606 (036) - FUEL SYSTEM, CARBURETOR, GASOLINE, ZENITH 1-1/4 IN. UPDRAFT 63AW10, ENGINE SERIAL NO. 42884 & ABOVE (02) - FUEL SYSTEM

389511R92

CARBURETOR

ASSEMBLY (gasoline)

1шт.

103026

NUT,3/8"-24, G5

2шт.

1

66453H

GASKET

flange

1шт.

2

BODY, throttle (not serviced separately)3

1шт.

FOR444613

PLUG

1/8" auto hex-hd pipe

1шт.

3

392419R1

PLUG, cup

1шт.

4

392417R1

JET, idle

1шт.

5

392390R1

VENTURI

1шт.

6

392435R91

PUMP ASSEMBLY, accelerating

1шт.

7

55589D

FLOAT

ASSEMBLY

1шт.

8

55521D

AXLE, float

1шт.

9

392434R1

PLATE, air shutter

1шт.

10

455153

SCREW W/SPRING LOCK WASHER, 6-32 x 1/4 C-Z slt-rd-hd mach

2шт.

11

392449R91

JET ASSEMBLY, discharge

1шт.

12

22846D

WASHER, discharge jet fibre

1шт.

13

392448R91

VALVE ASSEMBLY, power jet

1шт.

14

392422R91

BOWL ASSEMBLY, fuel

1шт.

15

12433D

WASHER

fibre

2шт.

16

31860D

PLUG

choke shaft hole

1шт.

17

12430D

WASHER

accelerating jet fibre

1шт.

18

392436R91

JET ASSEMBLY, accelerating

1шт.

19

13895D

GASKET

WASHER, fuel bowl plug fibre

1шт.

20

24648D

PLUG, fuel bowl (8 MM Pl)

1шт.

21

NOT USED

1шт.

22

NOT USED

1шт.

23

NOT USED

1шт.

24

NOT USED

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

NOT USED

1шт.

28

392413R1

JET, main

1шт.

29

12435D

SEALING WASHER

WASHER, main jet fibre

1шт.

30

392450R1

VENT, well

1шт.

31

392430R91

CLAMP ASSEMBLY, bracket and tube

1шт.

19404R1

NUT, 8-36 C-Z sq mach, screw

1шт.

392431R1

SCREW, 8-36 x 5/8" special mach

1шт.

32

392433R1

SCREW, bracket retaining

1шт.

33

392424R91

SHAFT ASSEMBLY, air shutter

1шт.

20747R1

PIN,3/32" x 5/16", Coiled

1шт.

34

392427R1

BUSHING, driver

1шт.

35

392428R1

SPRING, air shutter return

1шт.

36

392426R91

CLAMP, lever and swivel assembly

1шт.

12439D

SCREW, choke clamp lever

1шт.

37

19403R1

SCREW, 8/36 x 1/2" C-Z slt-hex-hd mach

1шт.

38

392429R1

RETAINER, spring

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

39

55591D

GASKET

, Serial Range: body-bowl

1шт.

40

392420R91

VALVE

SEAT ASSEMBLY, fuel valve

1шт.

41

392421R91

FILTER

FITTING AND SCREEN ASSEMBLY

1шт.

421578

SCREW, 5-40 x 1" C-Z rd-hd mach

1шт.

42

392418R1

SEAL

rubber

2шт.

43

392389R1

RETAINER, seal

2шт.

44

392432R1

PLATE, throttle

1шт.

45

392451R91

THROTTLE SHAFT AND LEVER ASSEMBLY

1шт.

46

55518D

NEEDLE, idle adjusting

1шт.

47

12472D

SPRING

idle adjusting screw

1шт.

48

454689

SCREW W/SPRING LOCK WASHER, 8-36 x 3/8" C-Z slt-fil-hd mach

1шт.

49

19542R91

SCREW W/SPRING LOCK WASHER, 12-24 x 3/4 C-Z slt-fil-hd mach

4шт.

50

392423R91

VALVE ASSSEMBLY, check

1шт.

51

13759D

WASHER, fitting and screen fibre

1шт.

52

23974D

SCREW, vacuum channel

1шт.

53

19582R91

SCREW W/SPRING LOCK WASHER, 5-40 x 5/16" C-Z slt-rd-hd mach

2шт.

135656H

GASKET

gasket (consists of Ref. nos. 12, 15, 17, 19, 29, 39 and 51)

1шт.

392416R91

KIT

carburetor repair (consists of Ref. nos. 1, 3, 6, 8, 40, 42, 43, 46 and gasket kit 135656H)

1шт.
