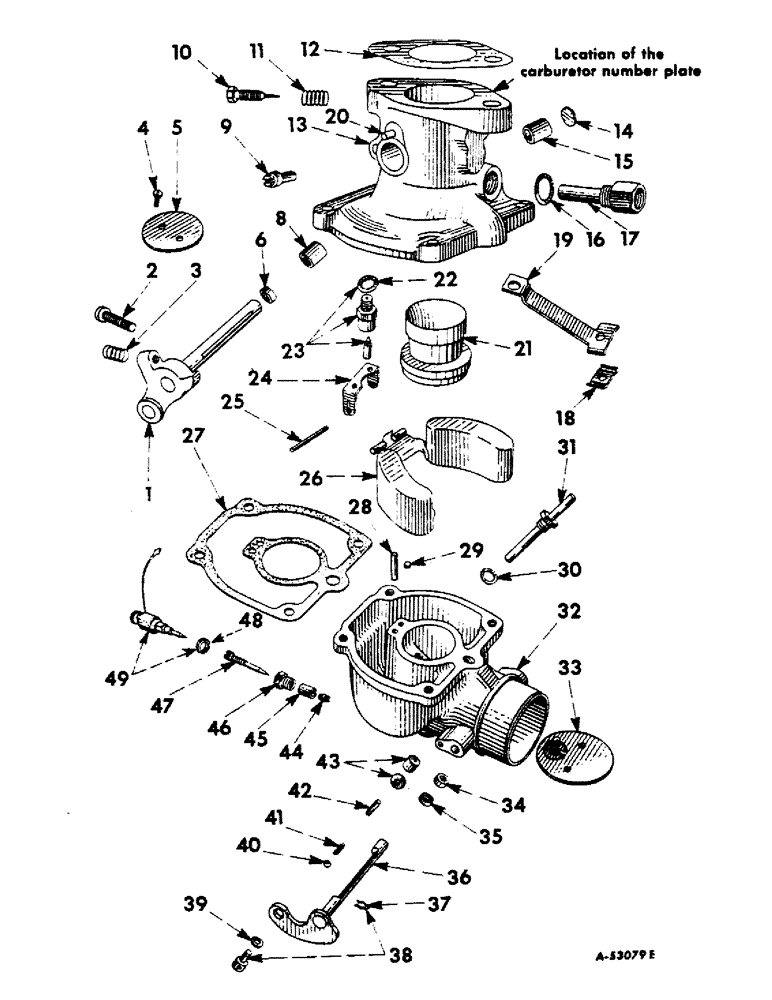

Запчасти Case IH 606 (034) - FUEL SYSTEM, CARBURETOR, GASOLINE, I.H. 1-1/4 INCH UPDRAFT, ENGINE SERIAL NO. UP TO 42883 (02) - FUEL SYSTEM

380956R94

CARBURETOR

ASSEMBLY, gasoline (order Carburetor, 389511R92)

1шт.

NUT, 3/8NF

2шт.

WASHER, 3/8" lock

2шт.

1

368139R91

SHAFT

AND LEVER ASSEMBLY, throttle

1шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

idle throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

370862R1

BUTTERFLY, throttle

1шт.

6

379598R1

SEAL

throttle shaft dust

1шт.

7

NOT USED

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

31336D

GASKET

carburetor (not included in carburetor assembly)

1шт.

13

368147R21

BODY ASSEMBLY, throttle (used only with 380956R91 carburetor) (composed of (1) body 368147R2 (NSS), (2) bushing 47390D, (1) pin 45110D, (1) plug 32611D (NSS), (1) plug 47393D (NSS), (1) plug 57956D, (1) seal 379598R1)

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

2шт.

16

18377D

GASKET

strainer screen retainer

1шт.

17

29902DX

SCREEN

RETAINER ASSEMBLY, strainer screen

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120611

NUT,#10 - 32

no. 10NF square cd-pltd

1шт.

NLS

NO LONGER SERVICED

no. 10NF x 5/8" slt-fil-hd mach cd-pltd

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

368146R11

SUPPORT

BRACKET, w/clamp, 32956D assembly starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

47407D28

VENTURI, single (used only with 380956R91 and R92 carburetors)

1шт.

21

47407D27

MAKING-UP

VENTURI, single (used only with 380956R93 and R94 carburetors)

1шт.

22

25948D

GASKET

needle valve cage

1шт.

23

47396DAX40

NEEDLE

GAGE ASSEMBLY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86983776

no. 4 x 5/16" slt-rd-hd mach cd-pltd

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

AND LEVER ASSEMBLY

1шт.

27

47388DA

GASKET

fuel bowl

1шт.

28

49798D75

JET

idle metering "75

1шт.

29

35606D52

BLEED, main air (used only with 380956R91 carburetor)

1шт.

29

35606D50

BLEED, main air (used only with 380956R92 carburetor)

1шт.

29

35606D44

VALVE

BLEED, main air (used only with 380956R93 and R94 carburetors)

1шт.

30

251583R1

WASHER

GASKET, metering nozzle

1шт.

31

376441R1

NOZZLE INJECTION

NOZZLE, metering (used only with 380956R91 carburetor)

1шт.

31

374328R1

NOZZLE, metering (used only with 380956R92 carburetor)

1шт.

31

384024R1

NOZZLE CAP

NOZZLE, metering (used only with 380956R93 and R94 carburetors)

1шт.

32

372720R12

BOWL ASSEMBLY, fuel (composed of (1) bowl 372720R1 (NSS), (1) filler 27445DB (NSS), (1) pin 351588R1, (1) plug 57957D (NSS), (1) plug 32611D (NSS), (1) retainer 45148D, (1) seal 45149DA)

1шт.

120021

SCREW, 1/4 x 7/8" cd-pltd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117243

BOTTOM

PLUG, 1/8" sq-hd cd-pltd pipe

1шт.

33

357002R12

SHUTTER

ASSEMBLY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4" slt-rd-hd mach cd-pltd

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

34

45149DA

SEAL

butterfly dust

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

352642R91

LEVER

SHAFT AND LEVER ASSEMBLY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8" fil-hd mach cd-pltd

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSEMBLY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

381191R1

SEAT, fuel adjustment screw-.057 (used only with 380956R91 carburator)

1шт.

44

384020R1

SEAT, fuel adjustment screw (used only with 380956R92 carburetor)

1шт.

44

374331R1

SEAT, fuel adjustment screw (used only with 380956R93 and R94 carburetors)

1шт.

45

24703DA

PACKING

fuel adjusting screw (optional with 67266DX)

1шт.

45

67266DX

PACKING

fuel adjusting screw (optional with 24703DA)

1шт.

46

24687DA

NUT,7/16" - 32 NPT

NUT, fuel adjusting screw packing

1шт.

47

374327R1

ADJUSTMENT SCREW,Sl Str Knurled Hd, 1/4" - 32 x 1.54", SST

fuel adjusting

1шт.

48

NOT USED

1шт.

49

NOT USED

1шт.

369834R2

DEFLECTOR, carburetor drip SCREW, 1/4 x 1/2" cap NUT, 1/4"

2шт.

387454R92

PACKAGE

carburetor gasket (used only with 380956R93 carburetor) (consists of ref. nos. 6, 12, 16, 22, 27, 30, 34, 43, fuel shut-off valve gasket 381955R1, and fuel shut-off valve o-ring 384820R1)

1шт.

387455R92

PACKAGE

carburetor overhaul (used only with 380956R93 and R94 carburetors) (consists of ref. nos. 1 through 4, 10, 11, 14, 15, 17, 23, 25, 26, 35, 40 through 42 and 47)

1шт.
