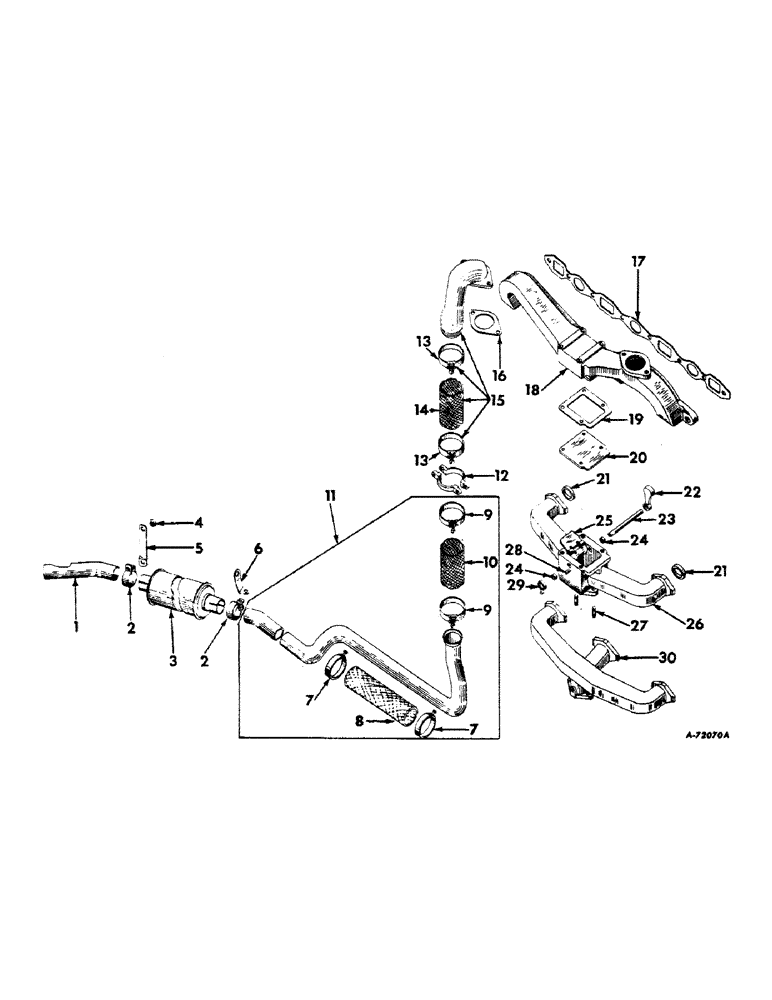

Запчасти Case IH 606 (020) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE

1

369288R1

PIPE

tail

1шт.

2

48889DA

CLAMP

exhaust muffler

2шт.

.

93082H

NUT

exhaust muffler clamp

2шт.

.

SCREW, 3/8NF x 1-1/2" cap

2шт.

3

371039R91

MUFFLER

exhaust

1шт.

3

371039R91GV

MUFFLER

Value, Muffler

1шт.

4

369324R1

SPACER, muffler rear support

1шт.

5

369287R1

SUPPORT

muffler rear

1шт.

6

369286R1

SUPPORT

muffler front

1шт.

7

29979D

CLAMP

sleeve

2шт.

8

381817R2

SLEEVE

exhaust pipe asbestos (20" long)

1шт.

9

29979D

CLAMP

sleeve

2шт.

10

382291R2

SLEEVE

exhaust pipe asbestos (6" long)

1шт.

11

369284R12

PIPE

ASSEMBLY, exhaust

1шт.

12

369283R1

CLAMP

exhaust pipe

2шт.

.

NUT, 5/16"

2шт.

.

SCREW, 5/16 x 1-3/4" cap

2шт.

13

29978D

CLAMP

gasketing tape

2шт.

14

372772R1

TAPE, exhaust pipe elbow gasketing

1шт.

15

369280R11

ELBOW ASSEMBLY, exhaust

1шт.

.

SCREW, 3/8 x 1" cap

2шт.

.

WASHER, 3/8" lock

2шт.

16

369282R2

GASKET

exhaust pipe elbow

1шт.

17

69752R1

GASKET

intake and exhaust manifold

1шт.

18

368550R11

MANIFOLD

ASSEMBLY, exhaust

1шт.

.

PIN, 3/16 x 1/2" taper groove (manifold drain hole)

1шт.

.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

.

NLS

NO LONGER SERVICED

2шт.

.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Not for L.P. Gas) Hex, 3/8"-16 x 3", G5

4шт.

.

127507H

WASHER

13/32 x 7/8 x 7 ga

8шт.

19

85868R1

GASKET

intake to exhaust manifold

1шт.

20

371098R1

COVER, exhaust manifold (L.P. Gas)

1шт.

.

NUT, 3/8"

4шт.

.

SCREW, 3/8 x 3-1/8" cap

4шт.

21

98573HA

GUIDE

PILOT, intake manifold

2шт.

22

85699R1

WEIGHT

manifold heat control

1шт.

23

82959R1

SHAFT

manifold heat control valve

1шт.

24

69443R1

BUSHING

manifold heat control

2шт.

25

85700R1

VALVE

manifold heat control

1шт.

26

367261R11

MANIFOLD

ASSEMBLY, intake (gasoline) (composed of (2) bushing 69443R1, (1) manifold 367261R1 (NSS), (1) pin 141159, (1) plug 103865, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1)

1шт.

27

12215D

STUD

carburetor

2шт.

.

NUT, 3/8NF

2шт.

28

141159

SPARE PART

PIN, 3/16 x 1" dowel

1шт.

29

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

30

371097R11

MANIFOLD, w/plug assembly, intake (L.P. Gas)

1шт.

.

103865

PLUG, 1/8" sq-hd. pipe

1шт.
