Запчасти Case IH 606 (019) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/VERTICALLY MOUNTED EXHAUST MUFFLER (01) - ENGINE

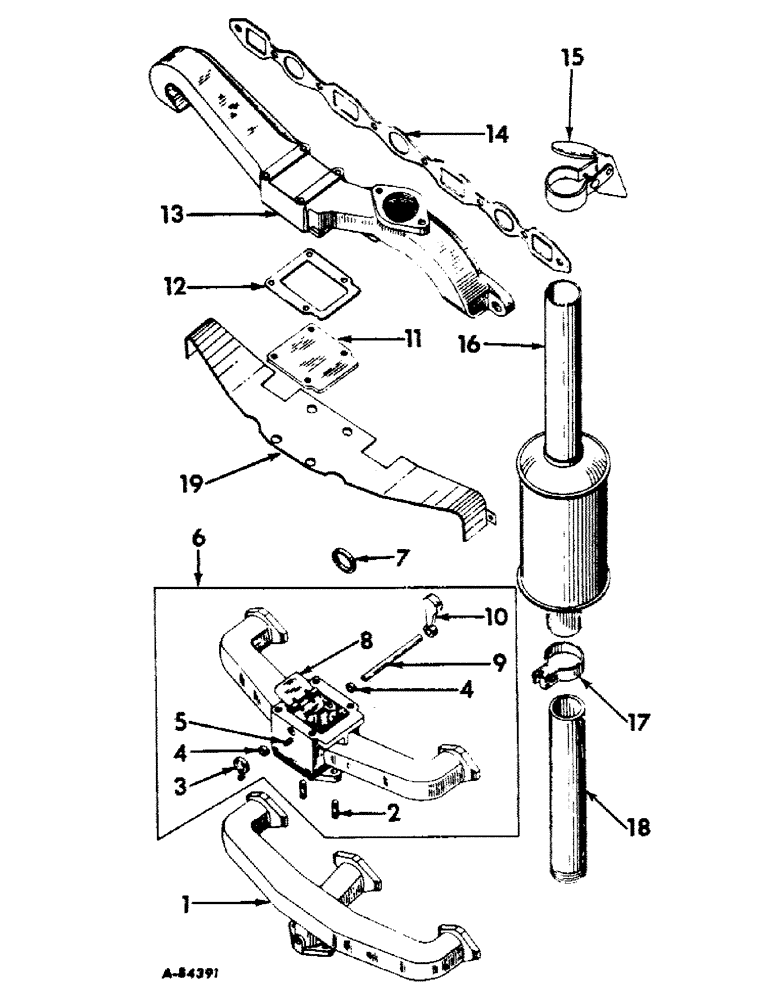

Схема запчастей Case IH 606 - (019) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/VERTICALLY MOUNTED EXHAUST MUFFLER (01) - ENGINE
15
4
2
3
1
4
9
10
17
14
16
7
11
19
8
13
12
18
5
6

Артикул

Название

Примечание

Количество

1

371097R11

MANIFOLD, w/plug assembly, intake (L.P. Gas)

1шт.

103865

PLUG, 1/8" sq-hd. pipe

1шт.

2

12215D

STUD

carburetor

2шт.

NUT, 3/8NF

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

141159

SPARE PART

PIN, 3/16 x 1" dowel

1шт.

6

367261R11

MANIFOLD

ASSEMBLY, intake (composed of (2) bushing 69443R1, (1) manifold 367261R1 (NSS), (1) pin 141159, (1) plug 103865, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1)

1шт.

103865

PLUG, 1/8" sq-hd pipe

1шт.

7

98573HA

GUIDE

PILOT, intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold (L.P. Gas)

1шт.

102635

NUT,3/8"-16, G5

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8 x 3-1/8" hex-hd cap

4шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

ASSEMBLY, exhaust

1шт.

PIN, 3/16 x 1/2" taper groove (manifold drain hole)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Not for L.P. Gas) Hex, 3/8"-16 x 3", G5

1шт.

127507H

WASHER

13/32 x 7/8 x 7 ga.

8шт.

14

69752R1

GASKET

intake and exhaust manifold

1шт.

15

321574R91

PLUG

CAP ASSEMBLY, exhaust (L.P. Gas)

1шт.

16

370644R92

MUFFLER

exhaust

1шт.

17

350602R1

CLAMP

exhaust muffler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8 x 1-3/8" cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

370643R1

PIPE

exhaust

1шт.

19

384509R11

SHIELD ASSEMBLY, intake manifold heat (L.P. Gas)

1шт.

Выбрано товаров: 33
