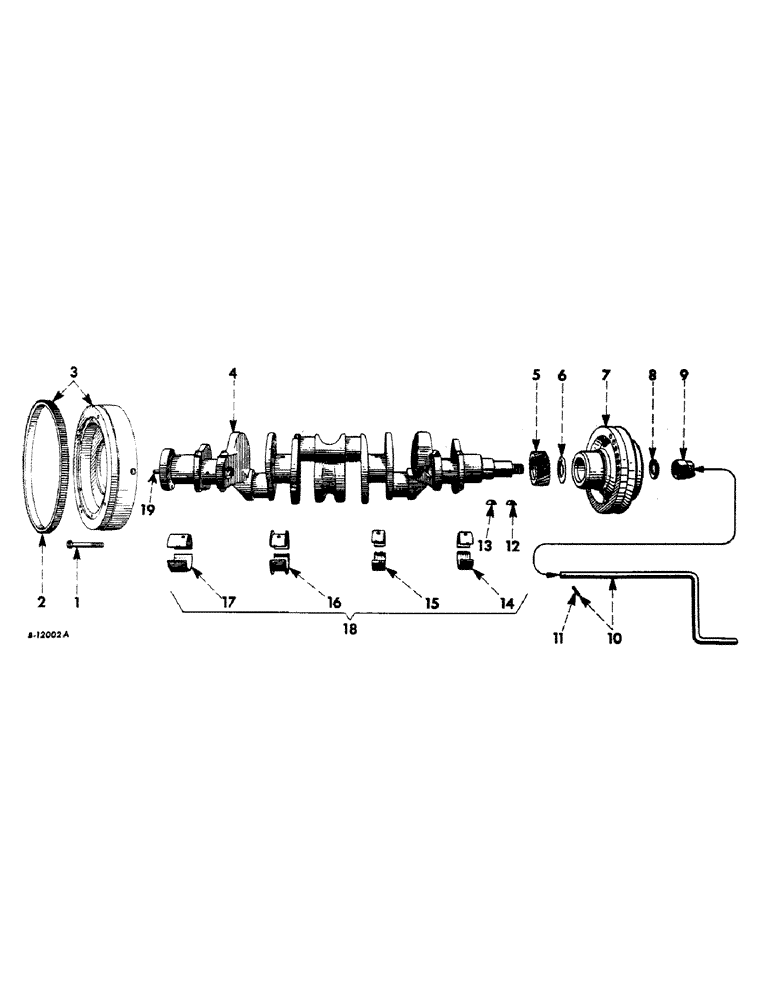

Запчасти Case IH 606 (017[A]) - CARBURETED ENGINE, CRANKSHAFT, FLYWHEEL AND BEARINGS (01) - ENGINE

1

9409050

BOLT,Hex, 7/16" - 20 x 3", Gr 8

, Serial Range: flywheel-crankshaft

6шт.

2

367042R1

GEAR

flywheel ring (134-T)

1шт.

3

367505R21

FLYWHEEL ASSEMBLY

1шт.

4

367268R91

CRANKSHAFT

ASSEMBLY (standard) (composed of (1) bearing 367276R91, (1) bearing 367279R91, (1) bearing 367282R91, (1) bearing 367285R91, (6) bearing 367408R11, (1) crankshaft 367266R1 (NSS), (1) pin 82970R1)

1шт.

4

367270R92

CRANKSHAFT W/BEARINGS FIELD PACKAGE (undersize) (consists of six connecting rod bearings, four crankshaft bearings and crankshaft)

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

371573R2

PULLEY

fan drive

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

35667H

NUT

crankshaft

1шт.

10

361924R11

CRANK ASSEMBLY, starting

1шт.

11

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , starting crank 5/16" x 1 1/2", Slotted

1шт.

12

117984

BUCKET TOOTH KEY

KEY, no. 23 Woodruff (fan pulley)

1шт.

13

103462

KEY

no. 13 Woodruff (crankshaft gear)

1шт.

14

367276R91

BEARING LINER

BEARING ASSEMBLY, crankshaft front (2 halves) (standard)

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING ASSEMBLY, crankshaft front (2 halves) (.002" undersize)

1шт.

14

376670R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft front (2 halves) (.010" undersize)

1шт.

14

376683R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft front (2 halves) (.020 undersize)

1шт.

14

367288R91

BEARING ASSY

ASSEMBLY, crankshaft front (2 halves) (.030" undersize)

1шт.

15

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSEMBLY, crankshaft intermediate front (2 halves) (standard)

1шт.

15

367303R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.002" undersize)

1шт.

15

376673R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.010" undersize)

1шт.

15

376686R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.020" undersize)

1шт.

15

367291R91

BEARING

ASSEMBLY, crankshaft intermediate (2 halves) (.030" undersize)

1шт.

16

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSEMBLY, crankshaft intermediate rear (2 halves) (standard)

1шт.

16

367306R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (.002" undersize)

1шт.

16

376676R91

JOURNAL

BEARING ASSEMBLY, crankshaft intermediated rear (2 halves) (.010" undersize)

1шт.

16

376689R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (.020" undersize)

1шт.

16

367294R91

BEARING ASSY

ASSEMBLY, crankshaft intermediate rear (2 halves) (.030" undersize)

1шт.

17

367285R91

BEARING

ASSEMBLY, crankshaft rear (2 halves) (standard)

1шт.

17

367309R91

BEARING ASSY

ASSEMBLY, crankshaft rear (2 halves) (.002" undersize)

1шт.

17

376679R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.010" undersize)

1шт.

17

376692R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves( (.020" undersize)

1шт.

17

367297R91

BEARING ASSY

ASSEMBLY, crankshaft rear (2 halves) (.030" undersize)

1шт.

18

367275R91

KIT

BEARING SET, crankshaft, standard (consists of (1) bearing 367276R91, (1) bearing 367279R91, (1) bearing 367282R91, (1) bearing 367285R91)

1шт.

18

377286R91

KIT

BEARING SET, crankshaft (.002" undersize) (consists of (1) bearing 367300R91, (1) bearing 367303R91, (1) bearing 367306R91, (1) bearing 367309R91)

1шт.

18

376669R91

KIT

BEARING SET, crankshaft (.010" undersize) (consists of (1) bearing 376670R91, (1) bearing 376673R91, (1) bearing 376676R91, (1) bearing 376679R91)

1шт.

18

376682R91

KIT

BEARING SET, crankshaft (.020" undersize) (consists of (1) bearing 376683R91, (1) bearing 376686R91, (1) bearing 376689R91, (1) bearing 376679R91)

1шт.

18

372444R91

KIT

BEARING SET, crankshaft (.030" undersize) (consists of (1) bearing 367288R91, (1) bearing 367291R91, (1) bearing 367294R91, (1) bearing 367297R91)

1шт.

19

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.
