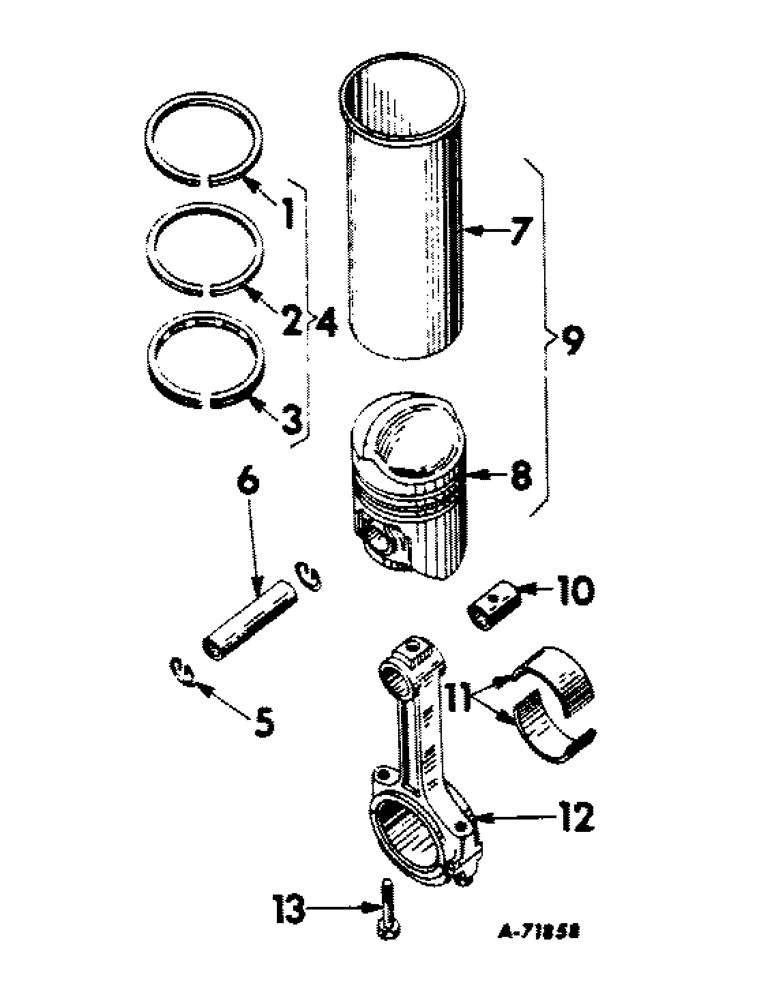

Запчасти Case IH 606 (016) - CARBURETED ENGINE, CONNECTING RODS AND SLEEVES (01) - ENGINE

1

389747R1

RING

compression piston (top or first groove) chrome

6шт.

2

389751R1

RING

compression piston (second groove)

6шт.

3

388355R91

RING, oil piston (third or bottom groove)

6шт.

4

367649R92

RING SET, piston (consists of twelve compression and six oil regulating rings)

1шт.

5

19-517D

RING, piston pin retaining

12шт.

6

278271R1

PISTON PIN

PIN, piston (standard)

6шт.

6

278326R1

PIN

piston (.005" oversize)

6шт.

7

SLEEVE, cylinder order sleeve, piston and rings assembly, for proper fuel and altitude)

6шт.

8

PISTON, (order sleeve, piston and rings assembly, for proper fuel and altitude)

6шт.

9

378600R94

PISTON ASSY.

SLEEVE SET, crankcase (consists of six sleeves, 378601R94) (gasoline-standard altitude)

1шт.

9

380646R94

SLEEVE ASSY

SLEEVES SET, crankcase (consists of six sleeves, 380647R94) (gasoline-high altitude, L.P. Gas)

1шт.

9

378601R94

SLEEVE

ASSEMBLY, cylinder (gasoline-standard altitude) (composed of (1) pin 278271R1, (1) piston 378602R3 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)

1шт.

9

380647R94

SLEEVE ASSY

SLEEVE ASSEMBLY, cylinder (Gasoline-high altitude) (L.P. Gas), (composed of (1) pin 278271R1, (1) piston 380643R3 (NSS), (2) ring 19517D, (1) ring 389747R1, (1) ring 389751R1, (1) ring 388355R91, (1) sleeve 367645R1 (NSS)

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSEMBLY, connecting rod (2 halves) (standard)

6шт.

11

367632R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod (2 halves) (.002" undersize)

6шт.

11

376666R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.010" undersize)

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSEMBLY, connecting rod (2 halves) (.020" undersize)

6шт.

11

367631R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.030" undersize)

6шт.

11

367630R91

BEARING SET, connecting rod (standard) (consists of six bearings, 367408R11)

1шт.

11

377285R91

KIT

BEARING SET, connecting rod (.002" undersize) (consists of six bearings, 367632R11)

1шт.

11

376665R91

BEARING

SET, connecting rod (.010" undersize) (consists of six bearings, 376666R11)

1шт.

11

376667R91

KIT

BEARING SET, connecting rod (.020" undersize) (consists of six bearings, 376668R11)

1шт.

11

372443R91

KIT

BEARING SET, connecting rd (.030" undersize) (consists of six bearings, 367631R11)

1шт.

12

367406R12

ROD

w/two bolts, 316366R1 and bushing, 364913R1, assembly, connecting

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
