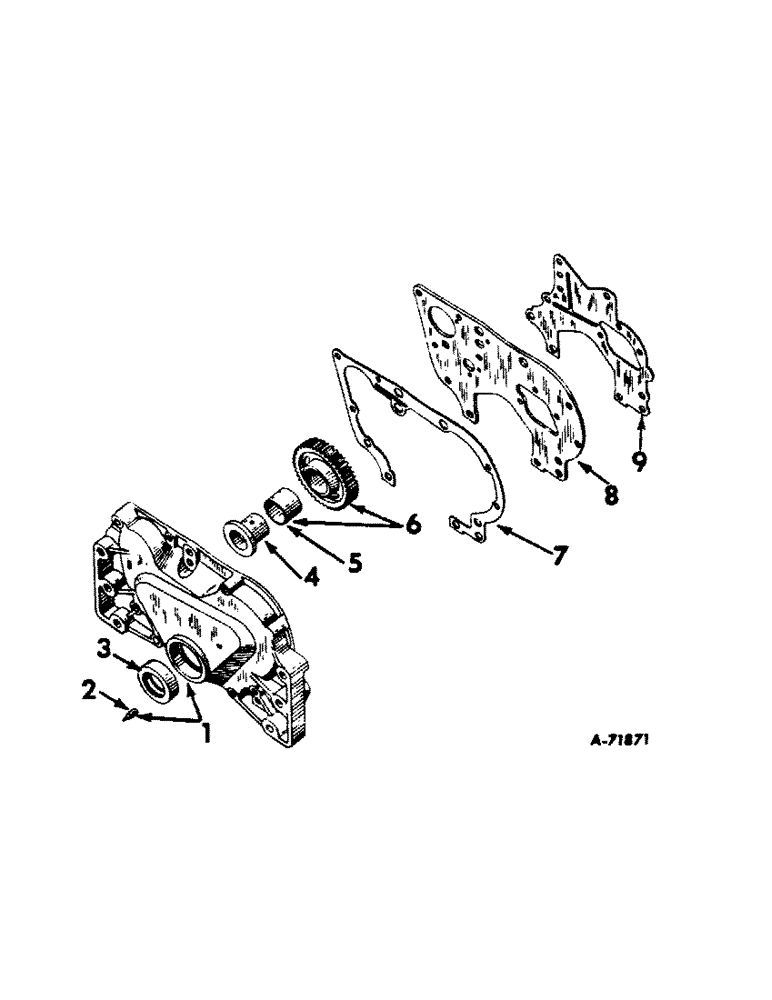

Запчасти Case IH 606 (015) - CARBURETED ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

390043R11

COVER ASSEMBLY, crankcase front

1шт.

20068R1

SCREW, 1/2 x 2-3/4 cap

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

OIL SEAL, crankshaft

1шт.

4

367580R11

HUB

SHAFT ASSEMBLY, idler gear

1шт.

NLS

NO LONGER SERVICED

3/16 x 7/16" dowel

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2 x 2-1/4"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

367578R1

BUSHING

idler gear

1шт.

6

367577R11

PINION

GEAR ASSEMBLY, idler

1шт.

7

367574R1

GASKET

crankcase front cover

1шт.

8

367524R1

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

367570R1

GASKET

crankcase front plate

1шт.
