Запчасти Case IH 606 (014) - CARBURETED ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE

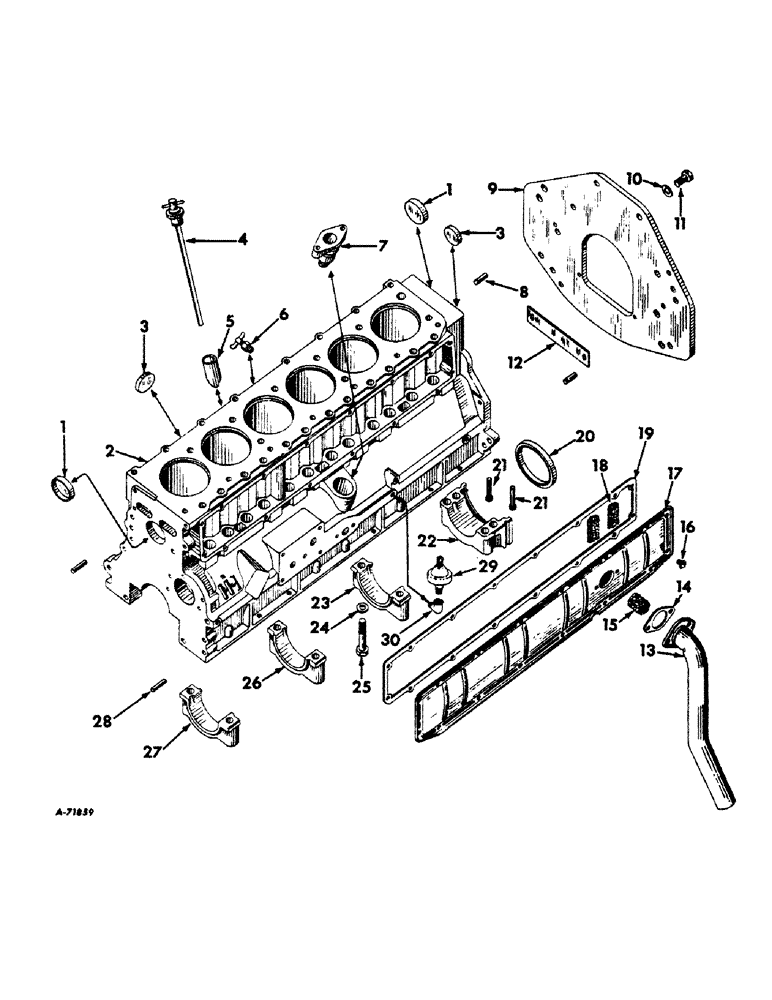

Схема запчастей Case IH 606 - (014) - CARBURETED ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE
9
14
3
27
1
24
4
10
28
8
13
26
6
17
15
21
7
21
22
2
30
29
1
25
12
20
18
23
19
11
3
5
16

Артикул

Название

Примечание

Количество

1

70129R1

PLUG,Cup, 2"

core hole

2шт.

2

367512R94

CRANKCASE ASSEMBLY (composed of (1) adapter 367513R1, (10) bolt 70133R1, (1) bushing 70259R2, (1) bushing 70260R1, (1) bushing 70261R2, (1) bushing 70262R1, (1) cap 367516R2 (NSS), (1) cap 367517R2 (NSS), (1) cap 367518R2 (NSS), (1) cap 367519R2 (NSS), (1

1шт.

2

367512R94

CRANKCASE ASSEMBLY (composed of (2) dowel 141285, (2) dowel 371699R2, (1) gasket 128868H, (6) plug 70128R1, (2) plug 70129R1, (2) plug 126045, (3) plug 444852, (2) ring 371315R1, (2) screw 179814, (1) tube 378102R1, (10) washer 58516H, (2) washer 103320)

1шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8" automotive hex. socket pipe

3шт.

3066422R1

PLUG

3/8" short sq. socket pipe

2шт.

3

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

4

312051R91

GAGE ASSEMBLY, oil level (up to serial no. 38423)

1шт.

4

387347R91

GAUGE

GAGE ASSEMBLY, oil level (serial no. 38424 and above)

1шт.

5

378102R1

TUBE, oil filler 1.187" OD, 3.66" Length

1шт.

6

103647

VALVE

COCK, 1/4" type C drain

1шт.

7

367513R1

ADAPTER

distributor mounting

1шт.

8

371699R2

STUD

DOWEL, engine rear support (std)

2шт.

8

376353R1

DOWEL, engine rear support (.030" oversize)

2шт.

9

367223R1

SUPPORT, engine rear

1шт.

SCREW, 5/8 x 1-1/2" cap

7шт.

SCREW, 5/8 x 2" cap

1шт.

WASHER, 5/8" lock

8шт.

10

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

17/32 x 1" x .092

4шт.

11

9409086

BOLT, 1/2 x 1-1/4" type AA hex. lock

4шт.

12

367225R1

BAR

SEAL, engine rear support dust

1шт.

SCREW, 5/16 x 5/8" cap

2шт.

WASHER, 11/32 x 11/16" x no. 16 ga.

2шт.

13

381197R11

PIPE ASSEMBLY, breather

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, breather pipe

2шт.

14

369981R1

GASKET

breather pipe

1шт.

15

369442R1

ELEMENT

breather pipe

1шт.

16

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, push rod cover

16шт.

17

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1 assembly, push rod

1шт.

18

315849R1

FILTER CARTRIDGE

ELEMENT, push rod cover (supplied as part of cover, 315970R91)

1шт.

19

369982R1

GASKET

push rod cover

1шт.

20

393180R91

SEAL

OIL SEAL, crankshaft rear

1шт.

21

310665R1

PLUG

rear bearing cap filler

2шт.

22

CAP, crankshaft rear bearing (not serviced separately - order crankcase assembly)

1шт.

23

CAP, crankshaft rear intermediate bearing (not serviced separately, order crankcase assembly)

1шт.

24

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

10шт.

25

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

26

CAP, crankshaft front intermediate bearing (not serviced separately-order crankcase assembly)

1шт.

27

CAP, crankshaft front bearing (not serviced separately - order crankcase assembly)

1шт.

28

NLS

NO LONGER SERVICED

DOWEL, crankcase front plate and cover

2шт.

29

392249R92

SWITCH

oil pressure

1шт.

30

444162

ELBOW

1/8" street (oil pressure switch)

1шт.

Выбрано товаров: 41
