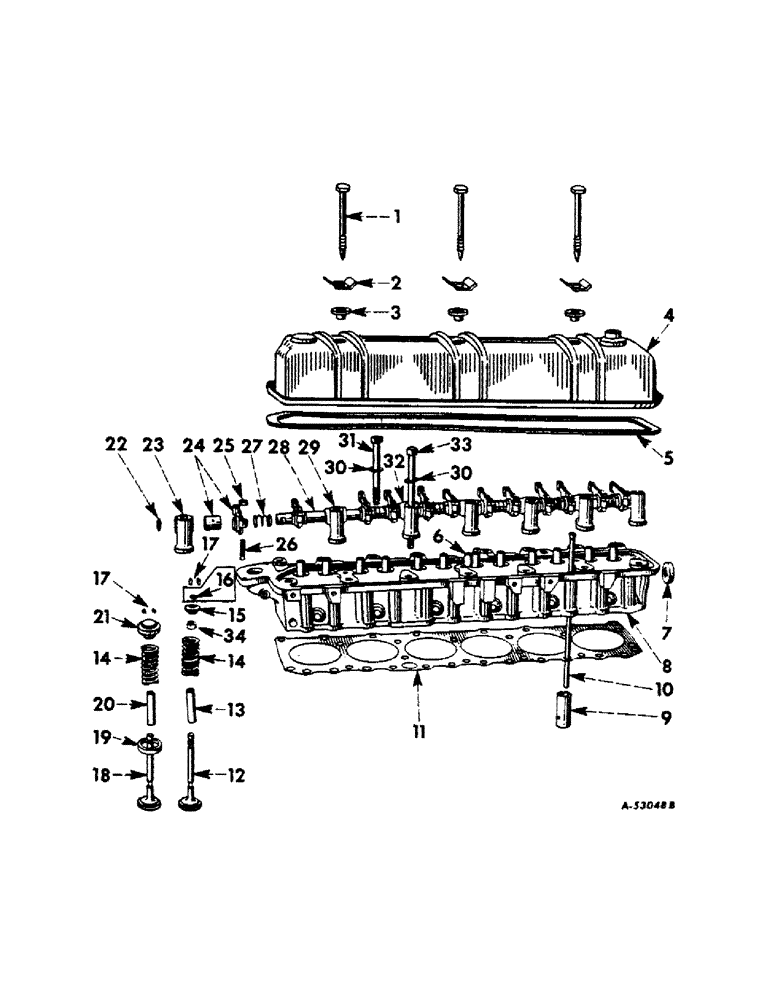

Запчасти Case IH 606 (012) - CARBURETED ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

4

378617R91

COVER

ASSEMBLY, valve

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

PIPE PLUG, 1/4 sq-hd

1шт.

5

369983R1

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate #2, #4, #6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

378242R92

HEAD

W/VALVES ASSEMBLY, cylinder (composed of (12) deflector 866834R1, (1) head 380812R91, (24) key 41339D, (6) retainer 151167R3, (6) roto coil 375604R91, (12) spring 367192R1, (6) valve 234275R1, (6) valve 372699R1)

1шт.

8

380812R91

HEAD ASSEMBLY, cylinder (composed of (12) guide 237247R1 (NSS), (1) head 380938R1 (NSS), (1) plug 70128R1, (6) seat 126273R1, (2) screw 179812)

1шт.

9

75524R3

TAPPET

valve

12шт.

10

164436R91

PUSH ROD

ROD, valve push

12шт.

11

392926R1

GASKET

cylinder head

1шт.

12

234275R1

VALVE

intake

6шт.

13

237248R1

GUIDE

intake valve stem

6шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

NOT USED

1шт.

17

41339D

KEY

valve spring retainer

24шт.

18

367191R2

LOCK VALVE

VALVE, exhaust (gasoline)

6шт.

18

372699R2

STD EXHAUST VALVE

VALVE, exhaust (stellite faced) (L.P. Gas) (See NOTE)

6шт.

19

126373R1

SEAT

exhaust valve

6шт.

19

126231R1

SEAT

exhaust valve (.015" oversize)

6шт.

19

126231R1

SEAT

exhaust valve (.015" oversize)

6шт.

19

83488R2

SEAT, exhaust valve (.030" oversize)

6шт.

20

237248R1

GUIDE

exhaust valve stem

6шт.

21

375604R91

SEAT

ROTOCOIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4" dia. expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER W/NUT, 133093R1 and screw, 16067 DA assembly, valve

12шт.

25

16067DA

ADJUSTMENT SCREW,3/8" - 24

NUT, valve lever adjusting screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17-244R1

PIN, 5/16 x 1-1/4" roll

2шт.

29

164423R11

BRACKET

w/dowel, 69500R1 assembly, valve lever shaft intermediate #2, #4, #6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

31

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cylinder head-short

8шт.

32

164425R1

BRACKET

valve lever shaft intermediate #3 and #5

2шт.

33

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cylinder head-long

7шт.

34

866834R1

BAFFLE

DEFLECTOR, intake valve stem oil

1шт.
