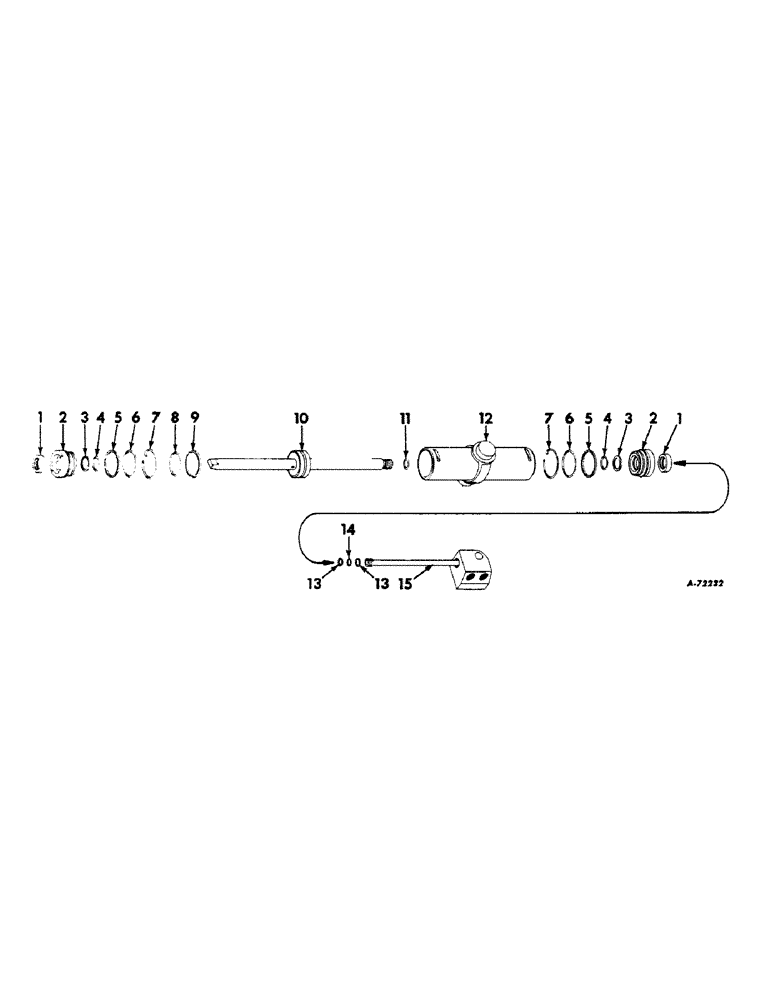

Запчасти Case IH 606 (120) - STEERING MECHANISM, POWER STEERING CYLINDER Steering Mechanism

379562R92

CYLINDER

ASSEMBLY, power steering (order cylinder 391982R91) up to serial no. 5936 (consists of all unmarked parts and those marked unit A)

1шт.

391982R91

CYLINDER

ASSEMBLY, power steering serial no. 5937 and above (consists of all unmarked parts and those marked unit B)

1шт.

1

378587R91

OIL SEAL

piston rod wiper

2шт.

2

379567R1

HEAD, cylinder (unit A)

2шт.

380940R1

WIRE, cylinder head locking

2шт.

2

391984R1

HEAD, cylinder (unit B)

2шт.

3

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod seal back-up

2шт.

4

680794R1

O-RING, piston rod seal (1 x 1-1/4 x 1/8")

2шт.

5

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

cylinder head o-ring back-up

2шт.

6

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

cylinder head (2-3/16 x 2-3/8 x 3/32")

2шт.

7

379568R1

RETAINER

cylinder head (unit A)

2шт.

7

391985R1

SPRING

RETAINER, cylinder lead (unit B)

2шт.

8

382432R1

O-RING,1.984" ID x 0.139" Width

piston seal (2 x 2-1/4 x 1/8")

1шт.

9

379570R1

SEALING RING

RING, piston

1шт.

10

379563R11

PISTON

ASSEMBLY, steering cylinder

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

piston rod (3/4 x 15/16 x 3/32")

1шт.

12

379565R11

TUBE ASSEMBLY, steering cylinder (unit A)

1шт.

12

391983R11

SLEEVE W/TRUNNION, steering cylinder (unit B)

1шт.

13

382236R1

BACK-UP RING

WASHER, tube seal o-ring back-up

2шт.

14

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

inner piston rod tube seal (3/8 x 1/2 x 1/16")

1шт.

15

379569R12

ANCHOR

ASSEMBLY, piston rod

1шт.

386694R91

KIT

cylinder service (consists of ref. nos., 1, 3, 4, 5, 6, 8, 9, 11, 13 and 14)

1шт.
