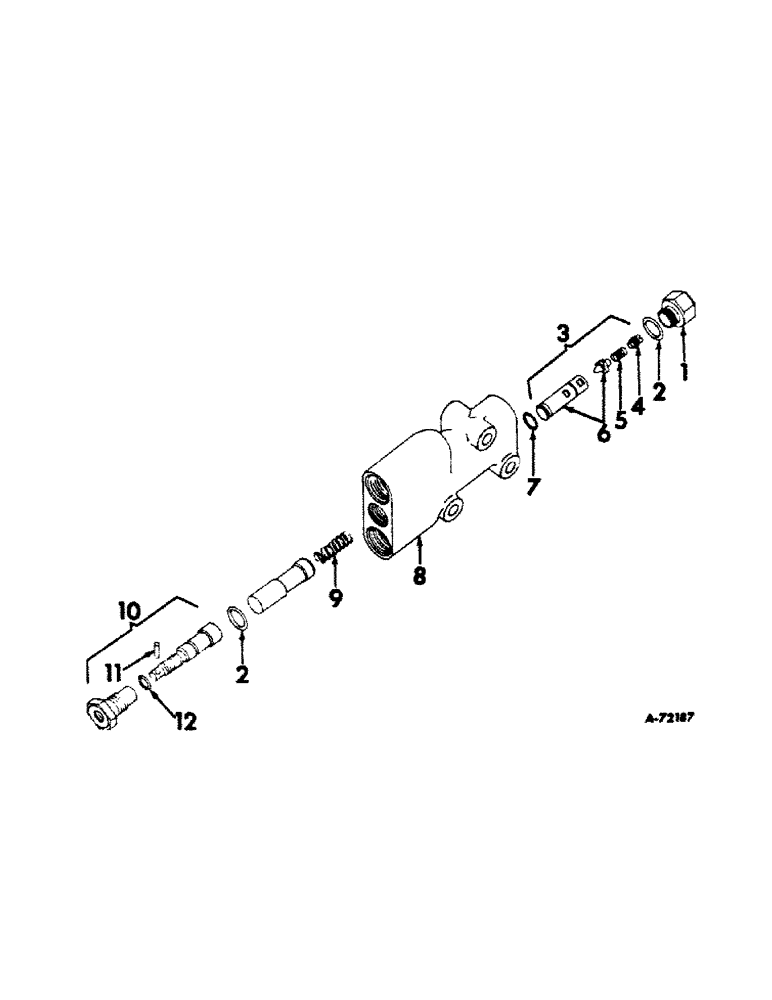

Запчасти Case IH 606 (119) - STEERING MECHANISM, POWER STEERING FLOW DIVIDER VALVE Steering Mechanism

381353R92

VALVE ASSEMBLY, power steering flow divider (order valve assembly, 392665R91)

1шт.

392665R91

VALVE ASSEMBLY, power steering flow divider

1шт.

1

381336R1

STOP, safety valve

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

safety valve stop (3/4 x 15/16 x 3/32")

2шт.

3

384444R91

VALVE

ASSEMBLY, safety

1шт.

4

SCREW, spring adjusting (not serviced separately, order 384444R91)

1шт.

5

SPRING, safety valve (not serviced separately, order 384444R91)

1шт.

6

VALVE, safety (not serviced separately, order 384444R91)

1шт.

7

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

safety valve (3./8 x 9/16 x 3/32")

1шт.

8

381354R91

VALVE ASSEMBLY, flow divider

1шт.

9

379211R1

SPRING

flow divider valve

1шт.

10

383124R91

LOCKOUT ASSEMBLY, flow divider

1шт.

11

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, , ESNA 1/8" x 1", Slotted

1шт.

12

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Adjusting screw

1шт.
