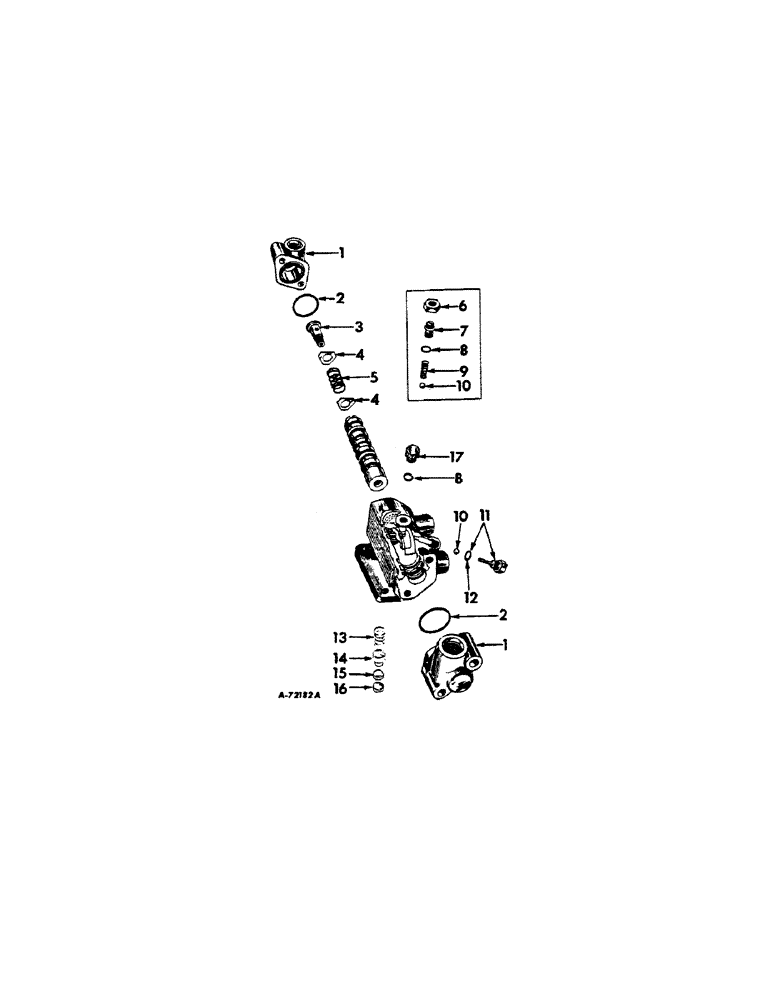

Запчасти Case IH 606 (118[A]) - STEERING MECHANISM, POWER STEERING PILOT VALVE Steering Mechanism

379645R93

VALVE

ASSEMBLY, power steering pilot

1шт.

1

379894R1

CAP

end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

1шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

379905R1

SPRING

valve centering

1шт.

6

25-118

NUT,1/2"-20, G5

adjusting screw lock

1шт.

Used only with valve 379645R92

1шт.

7

383756R91

SCREW

adjusting w/o-ring assembly

1шт.

Used only with valve 379645R92

1шт.

8

369384R91

O-RING, 13/32 x 9/16 x 5/64"

1шт.

9

379898R1

SPRING, pressure relief

1шт.

Used only with valve 379645R92

1шт.

10

16008R1

BALL,1/4" Dia, Steel

1/4" stl

2шт.

Steel Ball located between the Ref #12 and the Valve in the Artwork should be changed to Ref #18. The description for Ref #18 Would be the same as for 10. The note at the bottom of that page would still apply.

1шт.

Used only with valve 379645R92

1шт.

11

379901R91

PLUG

ASSEMBLY

1шт.

12

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Plug

1шт.

13

382125R1

SPRING

pressure check

1шт.

14

382126R1

NO LONGER SERVICED

VALVE, check

1шт.

15

379810R1

SEAL

ball set

1шт.

16

382127R1

WASHER

SPACER, check valve

1шт.

17

9410357

PLUG

o-ring boss

1шт.

379793R91

O-RING

PACKAGE, pilot valve service (consists of (1) o-ring 369384R1, (1) o-ring 379795R1, (1) seal 379810R1, (2) seal 387088R1)

1шт.
