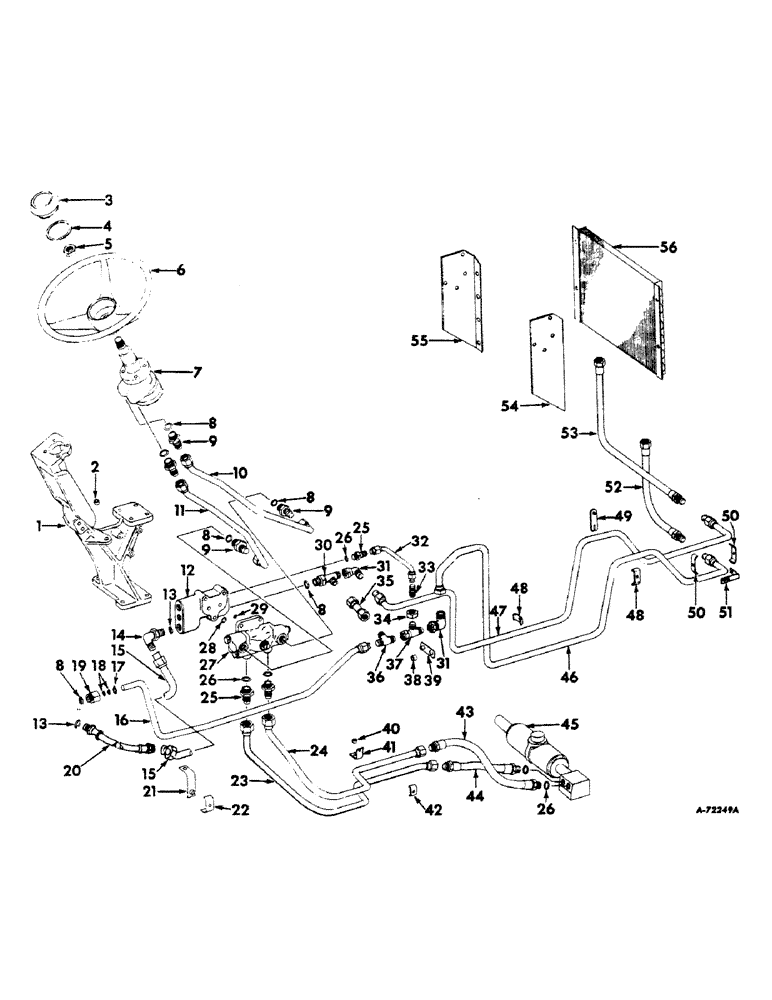

Запчасти Case IH 606 (116) - STEERING MECHANISM, POWER STEERING Steering Mechanism

1

379347R1

SUPPORT, steering

1шт.

.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8 x 1-3/8" cap

1шт.

2

373091R1

BUSHING

governor control shaft

1шт.

3

378395R1

CAP

steering wheel monogrammed

1шт.

4

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RETAINER, steering wheel cap o-ring

1шт.

5

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

6

385156R1

WHEEL (STEERING)

WHEEL, steering (16" dia)

1шт.

6

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

7

378578R93

HYDRAULIC STEERING

PUMP ASSEMBLY, power steering hand (for components see list of parts under details of "Hydrastatic Power Steering Hand Pump")

1шт.

.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

connector and tee (41/64 x 13/16 x 5/64")

6шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, hand pump LH and RH tubes

4шт.

10

379648R11

TUBE ASSEMBLY, hand pump LH

1шт.

11

379649R11

TUBE ASSEMBLY, hand pump RH

1шт.

12

392665R91

VALVE ASSEMBLY, flow divider (for components see list of parts under details of "Power Steering Flow Divider Valve")

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

flow divider to transfer block tube (59/64 x 1-1/16 x 7/64")

2шт.

14

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

flow divider to transfer block tube

1шт.

15

379646R11

TUBE ASSEMBLY, flow divider to transfer block (order hose 383446R91 and tube 383445R11) up to serial no. 1940

1шт.

.

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, transfer block tube

1шт.

15

383445R11

TUBE ASSEMBLY, flow divider to transfer block, serial no. 1941 and above

1шт.

16

381444R21

TUBE W/ADAPTER AND RETAINER ASSEMBLY, return

1шт.

17

381750R1

RETAINER, return tube adapter

1шт.

18

381756R91

PACKAGE, adapter o-ring and back-up washer service

1шт.

19

381748R1

ADAPTER, return tube

1шт.

20

383446R11

HOSE ASSEMBLY, flow divider to transfer block, serial no. 1941 and above

1шт.

21

381764R11

BRACKET ASSEMBLY, rear return tube, up to serial no 1940

1шт.

21

383447R11

BRACKET ASSEMBLY, rear return tube serial no. 1941 and above

1шт.

22

381426R1

CLAMP, return tube bracket, up to serial no. 2437

1шт.

22

384972R1

CLAMP, return tube bracket, serial no. 2438 and above

1шт.

.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

23

379651R11

LINE

TUBE ASSEMBLY, power steering cylinder no. 2

1шт.

24

379650R11

LINE

TUBE ASSEMBLY, power steering cylinder no. 1

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg. hyd flared tube

3шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector and hose

5шт.

27

379645R93

VALVE

ASSEMBLY, power steering pilot (for components see list of parts under details of "Power Steering Pilot Valve")

1шт.

.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

362796R1

O-RING,0.924" ID x 0.103" Width

pilot valve-large (15/16 x 1-1/8 x 3/32")

1шт.

29

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

pilot valve-small (13/16 x 1 x 3/32")

1шт.

30

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

flow divider

1шт.

31

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

oil tooler inlet and return tube

2шт.

32

381454R11

TUBE ASSEMBLY, flow divider return

1шт.

33

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

return tube

1шт.

34

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, return tube reducer

1шт.

35

383887R92

PIPE FITTING

VALVE ASSEMBLY, oil cooler relief

1шт.

36

9402982

TEE,3/4"-16, 37 Degree

return tube

1шт.

37

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

oil cooler return tube

1шт.

38

23501S

SPACER, oil cooler tube bracket, up to serial no. 1584

1шт.

39

381449R11

BRACKET ASSEMBLY, oil cooler tube engine mounting rear, up to serial no. 1584

1шт.

39

382772R11

BRACKET ASSEMBLY, oil cooler tube engine mounting rear, serial no. 1585 and above

1шт.

40

379791R1

SPACER, tube support

1шт.

.

SCREW, 5/16 x 3/4" cap

1шт.

41

381894R11

SUPPORT ASSEMBLY, front tubes (diesel engine tractors)

1шт.

42

381394R1

CLAMP

front tube bracket

1шт.

.

SCREW, 1/4 x 7/8" cap

1шт.

.

WASHER, 1/4" lock

1шт.

43

379652R92

HOSE ASSY.

HOSE ASSEMBLY, power steering cylinder (3/8 ID x 18" long)

1шт.

44

382030R91

HOSE ASSY.

HOSE ASSEMBLY, power steering cylinder (3/8 ID x 16" long)

1шт.

45

391982R91

CYLINDER

ASSEMBLY, power steering (will work for cylinder 379562R92) (for components see list of parts under details of "Power Steering Cylinder")

1шт.

46

381745R11

TUBE ASSEMBLY, oil cooler return

1шт.

47

381744R11

TUBE ASSEMBLY, oil cooler inlet

1шт.

48

381448R1

CLAMP

oil cooler tube bracket

2шт.

.

179795

TILLAGE BLADE

SCREW, 1/4 x 3/4" cap

2шт.

49

381899R11

BRACKET ASSEMBLY, oil cooler tube engine mounting front

1шт.

.

SCREW, 1/2 x 3/4" cap

1шт.

50

382226R1

CLAMP, oil cooler tube front bracket

2шт.

.

109084

NUT,1/4"-20, G5

1шт.

.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

51

382227R1

BRACKET, oil cooler tube front

1шт.

52

384183R91

HOSE ASSEMBLY, oil cooler outlet (1/2 ID x 13-1/2" long)

1шт.

53

381452R91

HOSE ASSEMBLY, oil cooler inlet (1/2 ID x 22" long)

1шт.

54

380710R11

BRACKET ASSEMBLY, oil cooler RH

1шт.

55

380709R11

BRACKET ASSEMBLY, oil cooler LH

1шт.

56

380485R91

COOLER ASSEMBLY, oil

1шт.

.

377681R1

SCREW, oil cooler mounting

4шт.
