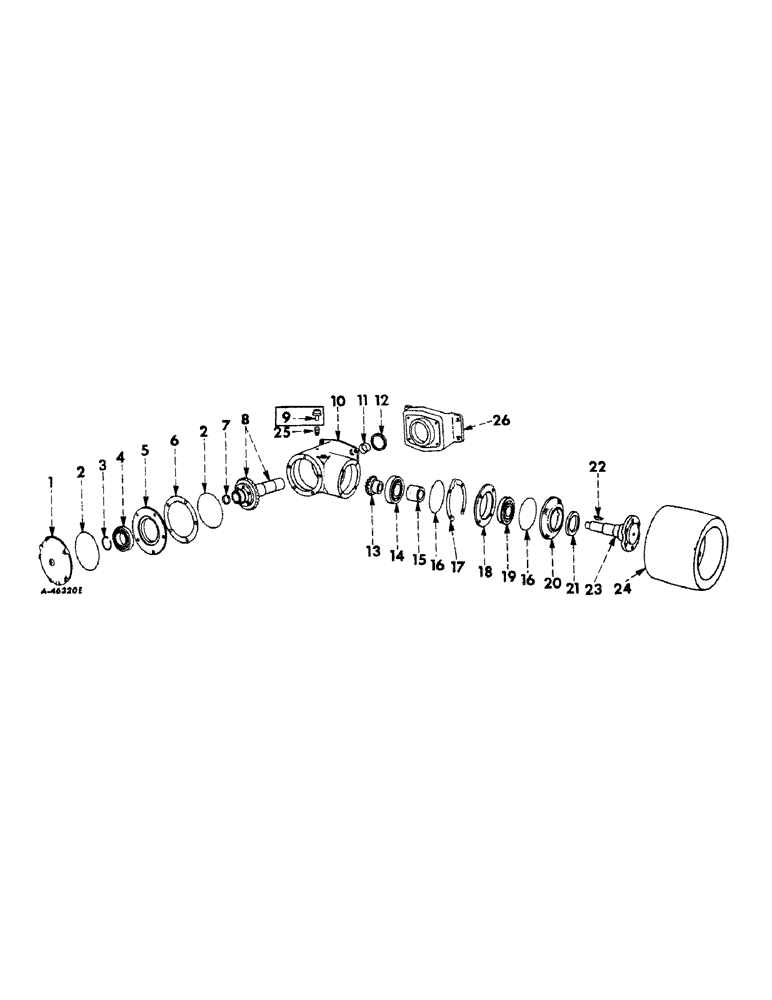

Запчасти Case IH 606 (113) - REAR FRAME AND DRIVING MECHANISMS, REAR MOUNTED BELT PULLEY Rear Frame & Driving Mechanisms

ATTACHMENT, belt pulley (for tractors equipped with independent power take-off (364702R92) (when it is desired to mount this belt pulley unit on a power take-off w/o provision for mounting the belt pulley, order separately and install the following parts

1шт.

1

373059R1

RETAINER, pulley drive gear bearing

1шт.

103878

PLUG

1/4" sq-hd pipe

1шт.

SCREW, 3/8 x 1-3/8" cap

1шт.

2

252741R1

O-RING

bearing retainer or cage (5-3/4 x 6 x 1/8")

2шт.

3

358236R1

RING

pulley drive gear bearing snap

1шт.

4

ST382

BEARING, BALL

BALL BEARING, pulley drive gear

1шт.

5

373055R11

CAGE, pulley drive gear bearing

1шт.

6

373056R1

SHIM, pulley drive gear bearing cage, light (.007")

1шт.

6

373057R1

SHIM, pulley drive gear bearing cage, medium (.012")

1шт.

6

373058R1

SHIM, pulley drive gear bearing cage, heavy (.030")

1шт.

7

145201R1

PLUG

cup

1шт.

8

364727R91

GEAR W/PLUG, 145201R1 assembly, bevel pulley drive (28 teeth)

1шт.

9

NOT USED

1шт.

10

384320R11

HOUSING ASSEMBLY, pulley drive (composed of (1) bushing 364725R2, (1) housing 384320R1, (2) plug 103878, (1) plug 103881)

1шт.

103878

PLUG

1/4" sq-hd pipe (drain plug)

2шт.

9409949

DRAIN PLUG

3/4" sq-hd pipe (filler plug)

1шт.

SCREW, 1/2 x 1-3/8" cap

4шт.

WASHER, 1/2" lock

4шт.

11

364725R2

BUSHING, pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

OIL SEAL, pulley drive gear hub

1шт.

13

364736R1

GEAR, pulley shaft (16 teeth)

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, pulley shaft gear retainer 1/8 x 1-1/4" cotter

1шт.

358235R1

WASHER, pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

pulley shaft inner

1шт.

15

364744R1

SPACER, pulley shaft bearing

1шт.

16

293729R1

RING

O-RING, pulley shaft bearing cage or retainer (4-3/4 x 5 x 1/8")

2шт.

17

364741R2

SHIM, pulley shaft bearing cage, light (.007")

1шт.

17

364742R2

SHIM, pulley shaft bearing cage, medium (.012")

1шт.

17

364743R2

SHIM, pulley shaft bearing cage, heavy (.030")

1шт.

18

364740R1

CAGE, pulley shaft bearing

1шт.

19

ST294

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

pulley shaft outer

1шт.

20

364737R1

RETAINER, pulley shaft bearing

1шт.

SCREW, 3/8 x 1-1/2" cap

4шт.

WASHER, 3/8" lock

4шт.

21

365434R91

OIL SEAL

pulley shaft bearing retainer

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, no. 127 Woodruff aly stl

1шт.

23

384326R1

SHAFT, pulley

1шт.

24

364748R91

PULLEY, belt (11" dia. x 7-1/2" face)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd cap

6шт.

WASHER, 1/2" lock

6шт.

25

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

26

NOT USED

1шт.
