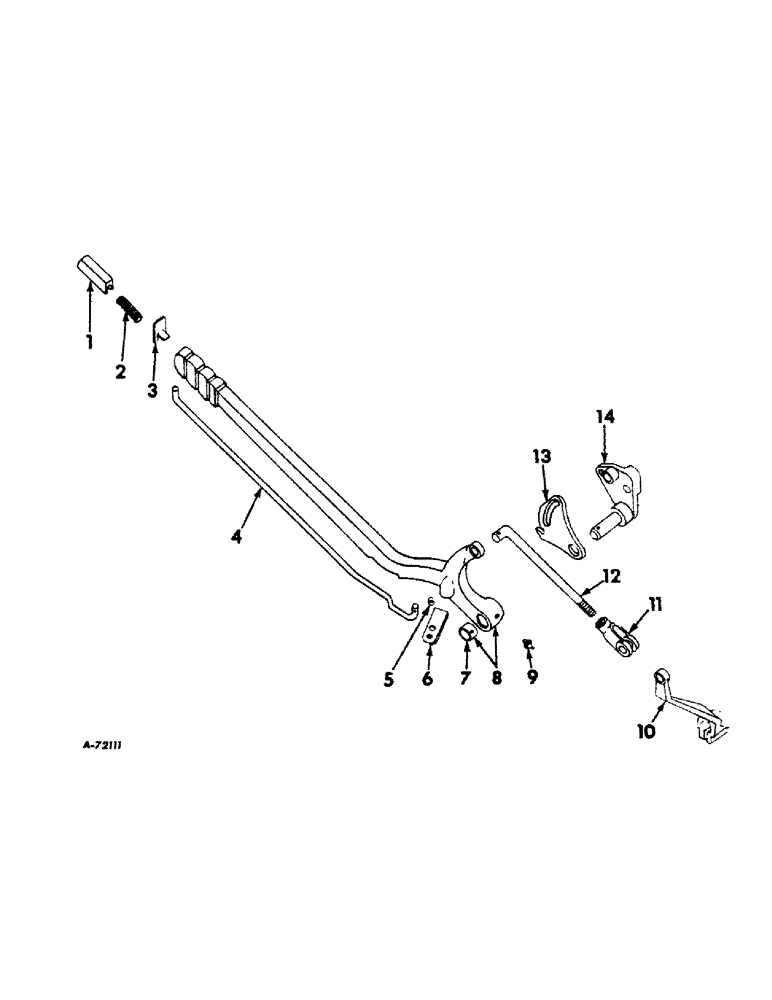

Запчасти Case IH 606 (111) - REAR FRAME AND DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, CLUTCH TYPE, LEVER AND CONNECTIONS Rear Frame & Driving Mechanisms

1

373449R1

BUTTON

control handle

1шт.

2

373448R1

SPRING

control handle

1шт.

3

373447R1

RETAINER, control handle

1шт.

4

379099R1

ROD, control handle, international series tractors up to serial no. 1512

1шт.

4

382404R1

ROD, control handle, international series tractors serial no. 1513 and above

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8" x .065 ga

1шт.

5

373679R1

SPACER

control handle pawl

1шт.

6

377388R1

BAR

PAWL, control handle

1шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 ga) 3/8"

1шт.

7

379093R1

BUSHING

control handle

1шт.

8

379098R11

LEVER

HANDLE ASSEMBLY, control (order handle, 379098R21, rod, 382404R1 and quadrant, 382405R1), international series tractors up to serial no. 1512

1шт.

8

379098R21

HANDLE ASSEMBLY, control international series tractors serial no. 1513 and above

1шт.

9

110161

FITTING, 3/16" straight drive type lubrication (optional with 125617)

1шт.

9

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 110161)

1шт.

10

379097R1

LEVER, cross shaft

1шт.

271500

SOCKET

7/16"

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16 x 2" cap

1шт.

11

213-318

CLEVIS

1/2" short adjustable rod end, international series tractors up to serial no. 1512

1шт.

11

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2" light adjustable rod end, international series tractors serial no. 1513 and above.

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2" rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

379096R1

ROD, control

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2NF jam

1шт.

PIN, 1/8 x 1" cotter

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16" x .095 ga

2шт.

13

379095R1

QUADRANT, control handle, international series tractors up to serial no. 1512

1шт.

13

382405R1

VALVE BLOCK

QUADRANT, control handle, international series tractors serial no. 1513 and above

1шт.

14

379094R11

BRACKET ASSEMBLY, control handle pivot

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

18514R1

BOLT,1/4" - 28 x 2 17/64", Gr 5

SCREW, 5/8 x 2-3/8" cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

370451R1

WASHER

7/8 x 1-1/4" x 22 ga

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.
