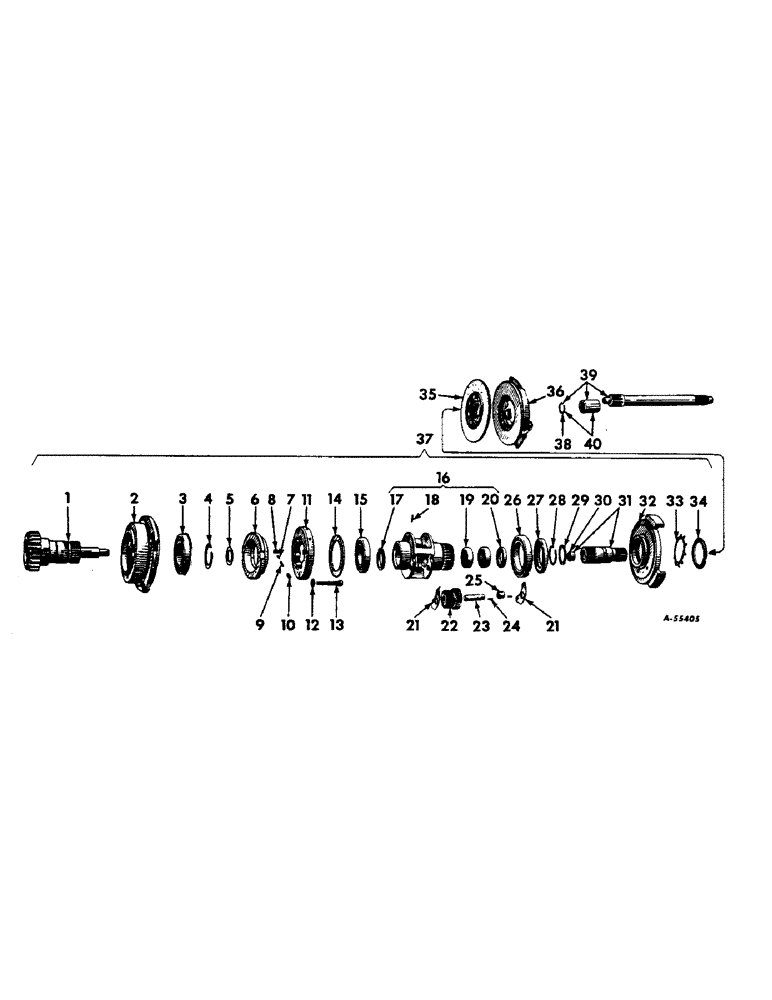

Запчасти Case IH 606 (108) - REAR FRAME AND DRIVING MECHANISMS, TORQUE AMPLIFIER Rear Frame & Driving Mechanisms

1

378824R1

SPARE PART SHAFT, transmission drive and secondary sun gear (20 and 28 teeth) (not included in torque amplifier service package)

1шт.

2

360643R1

BEARING ASSY,3.9366" ID x 3"

CAGE, transmission drive shaft bearing 3/8 x 1-1/2" cap

4шт.

3

ST343

BEARING

BALL BEARING, transmission drive shaft rear

1шт.

4

358059R1

SNAP RING

SNAP RING, transmission drive shaft bearing

1шт.

5

359891R1

THRUST WASHER,29.21mm ID x 45.97mm OD x 2.39mm Thk

WASHER, driving primary and driven secondary sun gear thrust

1шт.

6

360651R2

SPACER

WASHER, overrunning clutch roller rear thrust

1шт.

7

361287R1

PIN,4.37mm OD x 25.4mm L

PIN, overrunning clutch

8шт.

8

365403R1

ROLL

ROLLER, overrunning clutch

8шт.

9

361286R1

SPRING

SPRING, overrunning clutch

8шт.

10

361285R1

PLUG

PLUG, overrunning clutch

8шт.

11

365402R11

RAMP

RAMP ASSEMBLY, bearing carrier and overrunning clutch (composed of (8) pin 361287R1, (8) plug 361285R1, (1) ramp 365402R1 (NSS), (8) roller 365403R1, (8) spring 361286R1)

1шт.

12

360232R1

RING

RING, bearing carrier screw retaining

4шт.

13

360652R1

SPARE PART SCREW, bearing carrier (optional with 365615R1)

4шт.

13

365615R1

SCREW

SCREW, bearing carrier (optional with 360652R1)

4шт.

14

363666R1

THRUST WASHER

WASHER, overrunning clutch roller front thrust

1шт.

15

ST589

BALL BEARING,73.12mm ID x 106.36mm OD x 13.16mm W

BALL BEARING, planet carrier rear

1шт.

16

361281R12

CARRIER

CARRIER ASSEMBLY, planet

1шт.

17

359882R1

WASHER

SPACER, planet carrier

1шт.

18

17046R1

LOCK PIN,1/8" x 1 1/8", Slotted

Pin, (planet gear shaft lock) 1/8" x 1 1/8", Slotted

3шт.

19

359950R91

NEEDLE BEARING

BEARING, planet carrier needle

2шт.

20

359951R92

SEAL

OIL SEAL, planet carrier

1шт.

21

359890R2

SUPPORT

PLATE, planet gear thrust

6шт.

22

362005R92

WHEEL

SET, planet gear (23 and 28 teeth) (consists of three gears)

1шт.

23

361282R2

SHAFT

SHAFT, planet gear

3шт.

24

364634R91

PIN

PACKAGE, planet gear bearing needle roller service (consists of 138 rollers)

1шт.

25

359888R1

SPACER

SPACER, planet gear bearing

3шт.

26

ST562

BALL BEARING,75mm ID x 115mm OD x 20mm W

BALL BEARING, planet carrier front

1шт.

27

361248R92

OIL SEAL

OIL SEAL, planet carrier front bearing

1шт.

28

359894R1

RING, SNAP

RING SNAP SNAP RING, primary sun gear washer

1шт.

29

359893R1

THRUST WASHER,43.66mm ID x 57.15mm OD x 2.39mm Thk

WASHER, primary sun gear thrust

1шт.

30

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

BEARING, primary sun gear needle

1шт.

31

361283R32

SHAFT

GEAR W/BEARING ASSEMBLY, primary sun (23 teeth)

1шт.

32

359895R3

RETAINER

CARRIER, torque amplifier clutch (not included in torque amplifier service package)

1шт.

33

359896R2

LOCK NUT

LOCK, torque amplifier clutch carrier nut

1шт.

34

359897R1

NUT

NUT, torque amplifier clutch carrier

1шт.

35

375701R91

DISC

DISC ASSEMBLY, clutch driven (for components see list of parts under details of "Clutch 7")

1шт.

36

360215R94

COVER

PLATE ASSEMBLY, clutch pressure (for components see list of parts under details of "Clutch 7")

1шт.

36

360215R94R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate-7 in.

1шт.

36

360215R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

359899R1

BOLT,1/4" - 20 x 9/16", Gr 2

SCREW, clutch back plate

6шт.

.

WASHER, 1/4" lock

6шт.

37

363854R94

SPARE PART PACKAGE, torque amplifier service (composed of reference nos. 1-34 inclusive with attaching parts, less reference no. 32)

1шт.

38

364411R1

SPRING

SNAP RING, torque amplifier drive shaft coupling

1шт.

39

360676R41

SHAFT

SHAFT ASSEMBLY, torque amplifier drive

1шт.

40

364432R91

SLEEVE CYLINDER

COUPLING ASSEMBLY, torque amplifier drive shaft

1шт.

373337R92

GASKET

GASKET SET, torque amplifier overhaul (for components see "Package Assorted Gaskets")

1шт.
