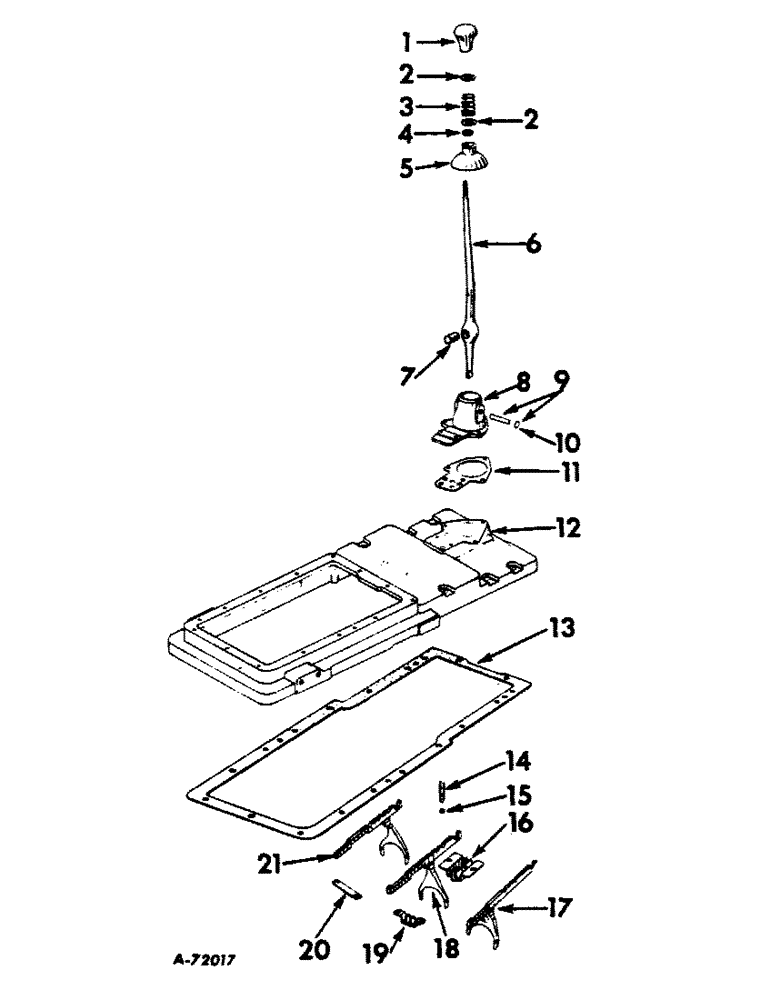

Запчасти Case IH 606 (107) - REAR FRAME AND DRIVING MECHANISMS, GEAR SHIFT MECHANISM AND REAR FRAME SPACER Rear Frame & Driving Mechanisms

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

557270R1

WASHER

29/32 x 1-1/4" x 11 ga (gear shift lever spring stop)

2шт.

PIN, 3/16 x 1-1/4" cotter

1шт.

3

29547D

SPRING

gear shift lever

1шт.

4

375355R1

O-RING,0.869" ID x 0.66" Width

RING, gear shift lever sealing

1шт.

5

355889R3

SHIELD

gear shift lever swivel housing

1шт.

6

361669R92

LEVER

ASSEMBLY, gear shift

1шт.

7

256918R11

DOWEL

SHAFT W/TWO PLUG, 172529 assembly, gear shift swivel large

1шт.

8

375357R92

HOUSING

ASSEMBLY, gear shift swivel

1шт.

SCREW, 3/8 x 1" cap

5шт.

WASHER, 3/8" lock

5шт.

9

256919R11

HITCH PIN

SHAFT W/TWO PLUGS, 172529, gear shift swivel small

1шт.

10

172529

PLUG

5/8" dia. expansion

2шт.

11

361673R1

GASKET

gear shift swivel housing

1шт.

12

377059R11

SPACER ASSEMBLY, rear frame

1шт.

106644

PLUG, 1-1/4 sq socket pipe

1шт.

375124R1

PIN, spacer dowel

2шт.

SCREW, 7/16 x 1-1/2" cap

3шт.

SCREW, 7/16 x 2" cap

10шт.

SCREW, 7/16 x 2-1/2" cap

2шт.

SCREW, 1/2 x 2" cap

3шт.

SCREW, 1/2 x 2-1/2" cap

2шт.

13

360556R2

GASKET

rear frame cover

1шт.

14

41058DA

SPRING

shift rail poppet

4шт.

15

D2616

BALL

1/2" chrome stl (shift rail poppet) (optional with 13722D)

1шт.

15

13722D

BALL

1/2" chrome stl (shift rail poppet) (optional with D2616)

4шт.

16

361663R91

GUIDE ASSEMBLY, gear shift rail front

1шт.

59473DA

LOCK

gear shift rail guide attaching screw

2шт.

SCREW, 3/8 x 3/4" cap

2шт.

17

368891R11

FORK

AND RAIL ASSEMBLY, first and reverse speed shifter

1шт.

18

368892R11

FORK

AND RAIL ASSEMBLY, second and third speed shifter

1шт.

19

361666R91

GUIDE ASSEMBLY, gear shift rail rear

1шт.

59473DA

LOCK

gear shift rail guide attaching screw

2шт.

SCREW, 3/8 x 3/4" cap

2шт.

20

48391D

PLATE, gear shift rail stop

1шт.

21

368893R11

RAIL ASSY.

FORK AND RAIL ASSEMBLY, fourth and fifth speed shifter

1шт.
