(106) - REAR FRAME AND DRIVING MECHANISMS, DIFFERENTIAL

Запчасти Case IH 606 (106) - REAR FRAME AND DRIVING MECHANISMS, DIFFERENTIAL Rear Frame & Driving Mechanisms

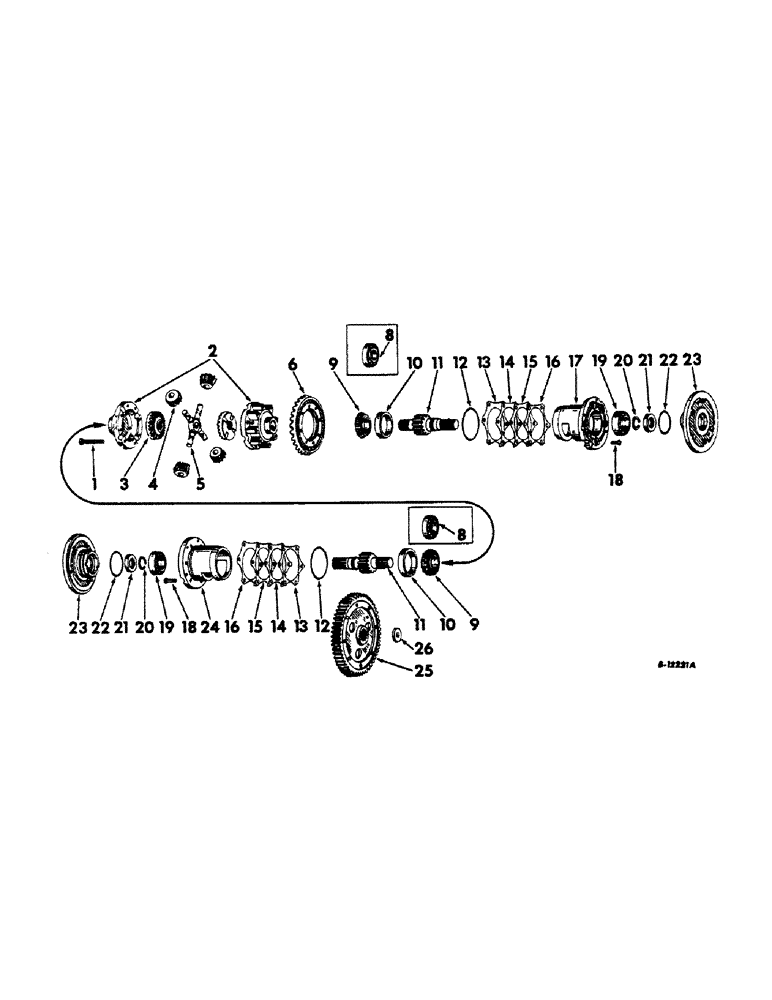

Схема запчастей Case IH 606 - (106) - REAR FRAME AND DRIVING MECHANISMS, DIFFERENTIAL Rear Frame & Driving Mechanisms
16
12
16
19
18
12
10
19
22
21
13
24
20
9
9
23
17
2
14
4
10
20
11
3
26
8
23
18
21
1
8
22
6
15
5
25
14
15
13
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48471D

BOLT (SPREADER),7/16" - 20 x 4"

BOLT, differential case

8шт.

381915R1

NUT,7/16"-20, G8

7/16NF

8шт.

2

374388R92

CASE, differential (2 halves)

1шт.

3

360962R2

GEAR

differential bevel (28 teeth)

2шт.

4

360961R1

GEAR

PINION, differential bevel (15 teeth)

4шт.

5

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

6

360536R1

GEAR, bevel drive (49 teeth)

1шт.

8

NOT USED

1шт.

9

379859R91

BEARING

CONE, differential bearing

2шт.

10

379858R1

BEARING CUP

CUP, differential bearing

2шт.

11

374577R2

SHAFT

bull pinion and brake (25 deg. pressure angle teeth)

2шт.

12

4222D

SEAL

O-RING, bull pinion shaft bearing cage (5-1/16 x 5-17/32 x 15/64")

2шт.

13

392772R1

SHIM

bull pinion shaft bearing cage, extra light (.004") (will work for 376541R1)

1шт.

14

392773R1

SHIM

bull pinion shaft bearing cage, light (.007") (will work for 47847D)

1шт.

15

392774R1

SHIM

bull pinion shaft bearing cage, medium (.015") (will work for 47848D)

1шт.

16

392775R1

SHIM

bull pinion shaft bearing cage, heavy (.030") (will work for 47849D)

1шт.

16

380972R1

SHIM

bull pinion shaft bearing cage tapered - RH

1шт.

17

379777R1

CAGE, RH bull pinion shaft bearing

1шт.

18

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, bull pinion shaft bearing cage

12шт.

19

279454R91

BEARING ASSY,2.3622" ID x 4.3275" OD x 0.8661"

bull pinion and brake shaft roller

2шт.

20

357194R1

RING

bull pinion and brake shaft snap

2шт.

21

383159R91

OIL SEAL

OIL SEAL, bull pinion shaft

2шт.

22

254690R1

OIL SEAL

O-RING, bull pinion shaft bearing retainer (4-1/8 x 4-1/2 x 3/16")

2шт.

23

374396R11

BEARING W/OIL SEAL, 383159R91 assembly, bull pinion shaft bearing

2шт.

24

379776R1

CAGE, LH bull pinion shaft bearing

1шт.

25

374575R91

HUB

BULL GEAR AND HUB ASSEMBLY (25 deg. pressure angle teeth)

2шт.

26

49673DA

WASHER, bull gear retainer

2шт.

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

SCREW, 3/4NF x 1-3/4" cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
