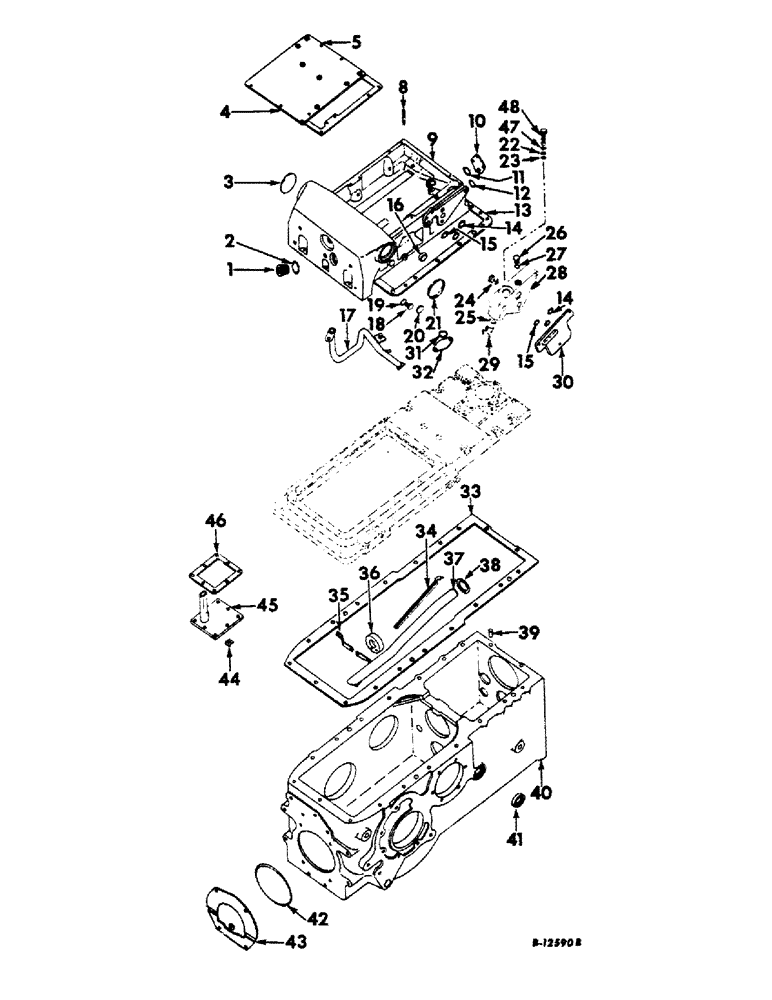

Запчасти Case IH 606 (102) - REAR FRAME AND DRIVING MECHANISMS, REAR FRAME, REAR FRAME COVER AND CONNECTIONS Rear Frame & Driving Mechanisms
№
Артикул
Название
Примечание
Количество
1
381196R1
PLUG, draft control
1шт.
2
307915R1
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
draft control shaft plug (1-15/32 x 1-23/32 x 1/8")
1шт.
3
378086R1
PLUG, rockshaft core LH
1шт.
4
376016R11
COVER ASSEMBLY, hydraulic unit housing
1шт.
376885R1
SCREW,Hex, 5/16" - 18 x 3/8", Nylon
5/16 x 3/8" nylock cap (tractors w/deluxe cushion seat)
2шт.
379757R1
SCREW, 5/16 x 3/4" nylock cap
2шт.
114663
SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"
5/16 x 3/4" f-hd mach
6шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
5
376018R1
GASKET
hydraulic unit housing cover
1шт.
6
378030R2
FLANGE, hydraulic diverting
1шт.
Tractors equipped with backhoe and not equipped with draft control.
1шт.
179844
BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5
SCREW, 3/8 x 1-5/8" cap
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
7
364879R1
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
hydraulic diverting flange (7/8 x 1-1/16 x 3/32")
2шт.
Tractors equipped with backhoe and not equipped with draft control.
1шт.
8
381747R1
PLUG, housing drain
1шт.
9
389524R91
HOUSING ASSEMBLY, hydraulic unit (composed of (1) bearing 376011R11, (1) bushing 376009R1, (1) bushing 376010R1, (1) bushing 389525R1, (1) bushing 389526R1, (1) housing 375576R2 (NSS), (1) retainer 376015R1 (NSS), (1) tube 376007R1 (NSS)
1шт.
Not used on tractors with draft control (see "Draft Control" section for comparable part)
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8 x 1-1/8" cap
5шт.
179846
LEVER
4шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
4шт.
10
378083R2
COVER, manifold
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8 x 1-1/8" cap
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
11
356005R1
O-RING,1.109" ID x 0.139" Width
manifold cover-large (1-1/8 x 1-3/8 x 1/8)
1шт.
12
355965R1
O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro
manifold cover-small (15/16 x 1-3/16 x 1/8")
1шт.
13
375577R1
GASKET
hydraulic unit housing
1шт.
14
381885R1
O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro
transfer block and end cover-large (1-3/8 x 1-9/16 x 3/32")
2шт.
15
381884R1
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
transfer block and end cover-small (1 x 1-3/16 x 3/32")
4шт.
16
378085R1
PLUG, quadrant shaft core
1шт.
17
380375R11
TUBE ASSEMBLY, differential lubricating
1шт.
179814
SPACER
1шт.
615031R1
WASHER
3/8 x 7/8" x .083 ga
2шт.
18
9410358
PLUG
drain
1шт.
19
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, drain plug
1шт.
20
378084R1
PLUG, eccentric shaft core
1шт.
21
378087R1
PLUG, rockshaft core RH
1шт.
22
378985R2
BACK-UP RING
relief valve backup
1шт.
23
364879R1
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
7/8 x 1-1/16 x 3/32" (relief valve outer)
1шт.
24
383440R91
LOCK VALVE
VALVE ASSEMBLY, check
1шт.
25
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
transfer block return port plug (1-11/64 x 1-23/64 x 3/32")
1шт.
26
9410358
PLUG
transfer block-small
1шт.
27
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, transfer block plug
1шт.
28
381795R2
BLOCK, transfer
1шт.
29
9410363
PLUG
transfer block return port
1шт.
30
376023R3
COVER
control valve end
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
SCREW, 3/8 x 2-3/4" cap
3шт.
31
372764R1
O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro
suction line cover plate (1-1/8 x 1-5/16 x 3/32")
1шт.
32
381443R1
COVER, suction line
1шт.
179814
SPACER
2шт.
33
360556R2
GASKET
rear frame
1шт.
34
374959R1
TROUGH, oil
1шт.
370345R2
SCREW, oil trough mounting
1шт.
114607
LOCK, Ext Tooth, 7/16"
1шт.
35
368214R1
REATINER, suction tube bracket support
1шт.
102635
NUT,3/8"-16, G5
1шт.
Used only on tractors with forward and reverse drive.
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
Used only on tractors with forward and reverse drive.
1шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, 3/8 x 1-3/4" cap
1шт.
Used only on tractors with forward and reverse drive.
1шт.
3944B
SPACER, suction tube support retainer
1шт.
Used only on tractors with forward and reverse drive.
1шт.
311246R1
WASHER, suction tube support retainer (note B)
2шт.
Used only on tractors with forward and reverse drive.
1шт.
36
370339R21
SUPPORT ASSEMBLY, suction tube bracket
1шт.
36
388999R1
SUPPORT, suction tube bracket (tractors with transmission-driven PTO)
1шт.
37
368210R11
TUBE ASSEMBLY, oil suction 13.32, 4.36" Length
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
38
368548R1
RING
oil suction tube seal
1шт.
39
48651D
PIN, rear fram cover dowel
2шт.
40
378804R21
FRAME ASSEMBLY, rear (composed of (1) frame 378804R2 (NSS), (2) oil seal 380959R91, (2) pin 48651D, (1) plug 444678, (1) plug 103879, (1) plug 372350R1, (1) screw 372349R1, (1) washer Q5001)
1шт.
372350R1
PLUG, 1/2" hex-hd pipe
1шт.
444678
PLUG
1-11-1/2 auto sq-soc-hd pipe
1шт.
103879
PLUG, 3/8" sq-hd pipe
1шт.
372349R1
SCREW,Hex, 1/4" - 20 x 7/16", W/ Nylon Pellet
1/4 x 7/16" cap
1шт.
Q5001
WASHER
9/32 x 3/4" x 11 ga
1шт.
41
380959R91
OIL SEAL,26.67mm ID x 46.53mm OD x 6.5mm Thk
OIL SEAL, break pedal shaft
2шт.
42
384398R1
SEALING RING,0.551" ID x 0.07" Width
O-RING, power take-off opening cover (7-1/8 x 7-17/32 x 13/64")
1шт.
43
358841R11
COVER ASSEMBLY, power tak-off opening
1шт.
179881
BOLT,1/2" - 13 x 1", Gr 5
4шт.
44
378514R1
WASHER, cover screw lock
8шт.
45
376040R11
COVER ASSEMBLY, hydraulic unit housing bottom
1шт.
313941R1
BOLT
SCREW, 5/16 x 5/8" nylock cap
8шт.
46
376983R1
GASKET
hydraulic unit housing bottom cover
1шт.
47
383219R1
O-RING,0.924" ID x 0.103" Width
relief valve inner (15/16 x 1-1/8 x 3/32")
1шт.
48
389033R91
VALVE
ASSEMBLY, pilot operated relief (1600 PSI) (for components refer to list of parts under details of "Pilot Relief Valve" in the hydraulic section)
1шт.
Выбрано товаров: 88
