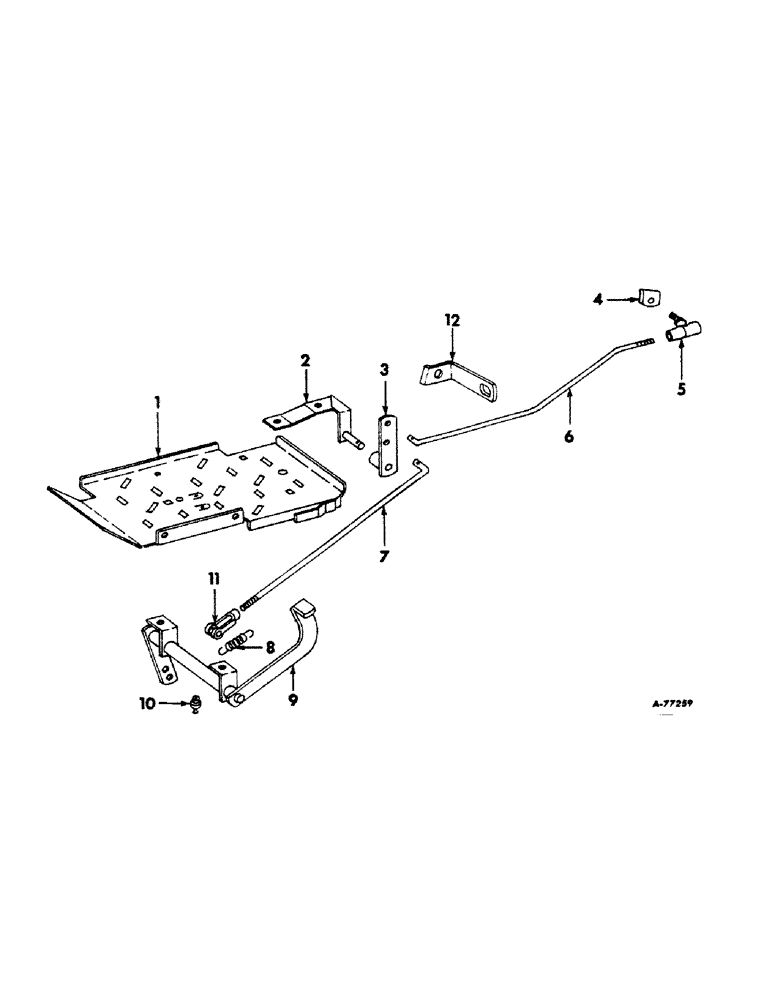

Запчасти Case IH 606 (070) - GOVERNOR, FOOT PEDAL ACCELERATOR, TOE OPERATED Governor
№
Артикул
Название
Примечание
Количество
1
385594R11
PLATFORM ASSY, RH
1шт.
14993R1
BOLT, 1/4 x 3/4" crg
1шт.
15069R1
BOLT, 1/4 x 2" crg
2шт.
109084
NUT,1/4"-20, G5
3шт.
2
385604R11
SHAFT ASSY, bellcrank pivot
1шт.
280250
COTTER PIN,3/32" OD x 3/4" L
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8
1шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, 3/8 x 1-3/4" cap
1шт.
11002VA
WASHER
17/32 x 7/8" x 16 ga
1шт.
3
385603R11
BELLCRANK ASSY, foot accelerator
1шт.
4
371505R1
CLIP, foot accelerator governor front rod
1шт.
5
393353R91
JOINT TURNING
JOINT, 5/16NF type "SP" ball
1шт.
6
382986R1
ROD, foot pedal accelerator upper (unit A)
1шт.
6
380671R1
ROD, foot pedal accelerator upper (unit B)
1шт.
114493
JAM NUT,Jam, 5/16"-24, G5
1шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16" x 16 ga
1шт.
7
385602R1
ROD, foot accelerator lower
1шт.
114493
JAM NUT,Jam, 5/16"-24, G5
1шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16" x 16 ga
1шт.
8
15015E
SPRING, foot accelerator
1шт.
9
385596R91
SHAFT AND TUBE ASSY, foot accelerator 7.06" Length
1шт.
109084
NUT,1/4"-20, G5
2шт.
157732
SCREW, 1/4 x 3/4" cr-rec-truss hd
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
271432
LUBE NIPPLE,1/4" x .47 lg, Drive
FITTING, 1/4" drive type str lub (foot accelerator shaft pilot tube)
1шт.
11
213-315
CLEVIS
5/16NF short adj rod end
1шт.
114784
PIN
5/16 x 31/32" rod end
1шт.
PIN, 3/32 x 5/8" cotter
1шт.
12
NOT USED
1шт.
370982R21
ARM ASSEMBLY, governor control rear rod (illustrated with "Governor Controls")
1шт.
PIN, 1/16 x 5/8" cotter
1шт.
WASHER, 1/32 x 11/16 x .065"
2шт.
370983R1
SHAFT, governor controls (illustrated with "Governor Controls")
1шт.
364437R1
PIN,3/16" x 7/8", Coiled
2шт.
Выбрано товаров: 37
