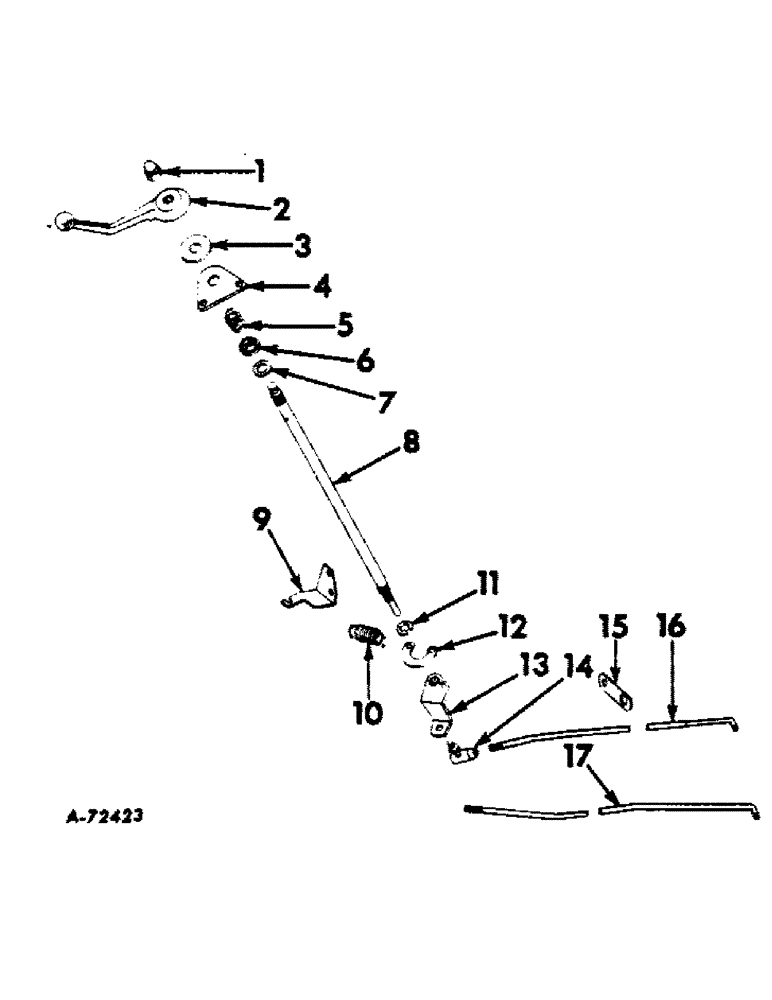

Запчасти Case IH 606 (068) - GOVERNOR, ENGINE SPEED CONTROLS Governor

1

369478R1

NUT

engine speed control lever

1шт.

2

369464R2

LEVER

engine speed control lever

1шт.

496-21047

WASHER

15/32" ID x 59/64" OD x .056 cd-pltd washer

1шт.

3

369463R1

GASKET

DISC, governor control friction

1шт.

4

369465R1

SUPPORT

PLATE, governor control friction

1шт.

NUT, 1/4" hi-crown-hex-cd-pltd

2шт.

SCREW, 1/4 x 3/8" cd-pltd cap

1шт.

SCREW, 1/4 x 1/2" cd-pltd cap

1шт.

5

370629R1

SPRING

governor control

1шт.

6

370628R1

RETAINER

RETAINER, governor control spring

1шт.

7

370627R2

SPACER

governor control spring

1шт.

8

369460R1

SHAFT, governor control (tractors w/o foot accelerator)

1шт.

8

370983R1

SHAFT, governor control (tractors w/foot accelerator)

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

9

370632R1

ANCHOR, governor control balance spring (carbureted engine tractors)

1шт.

10

369470R1

VALVE SPRING

SPRING, governor balance (carbureted engine tractors)

1шт.

11

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , governor control #50, .392" Dia, E-Type

1шт.

12

369468R1

SUPPORT

LINK, governor control spring anchor (carbureted engine tractors)

1шт.

13

370982R21

ARM ASSEMBLY, governor control (tractors w/foot accelerator)

1шт.

13

369466R21

ARM ASSEMBLY, governor control (tractors w/o foot accelerator)

1шт.

NUT, 7/16NF jam (tractors w/o foot accelerator)

1шт.

PIN, 1/16 x 5/8" cotter

1шт.

WASHER, 11/32 ID x 11/16 OD

1шт.

14

393353R91

JOINT TURNING

JOINT, 5/16NF type SP ball

1шт.

425-115

NUT,5/16"-24, G5

5/16NF

1шт.

15

380707R1

SUPPORT, governor control rod (carbureted engine tractors)

1шт.

SCREW, 1/2 x 3/4" cap

1шт.

16

380708R1

ROD, governor control (carbureted engine tractors)

1шт.

PIN, 1/16 x 5/8" cotter

1шт.

17

380834R1

ROD, governor control (diesel engine tractors)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
