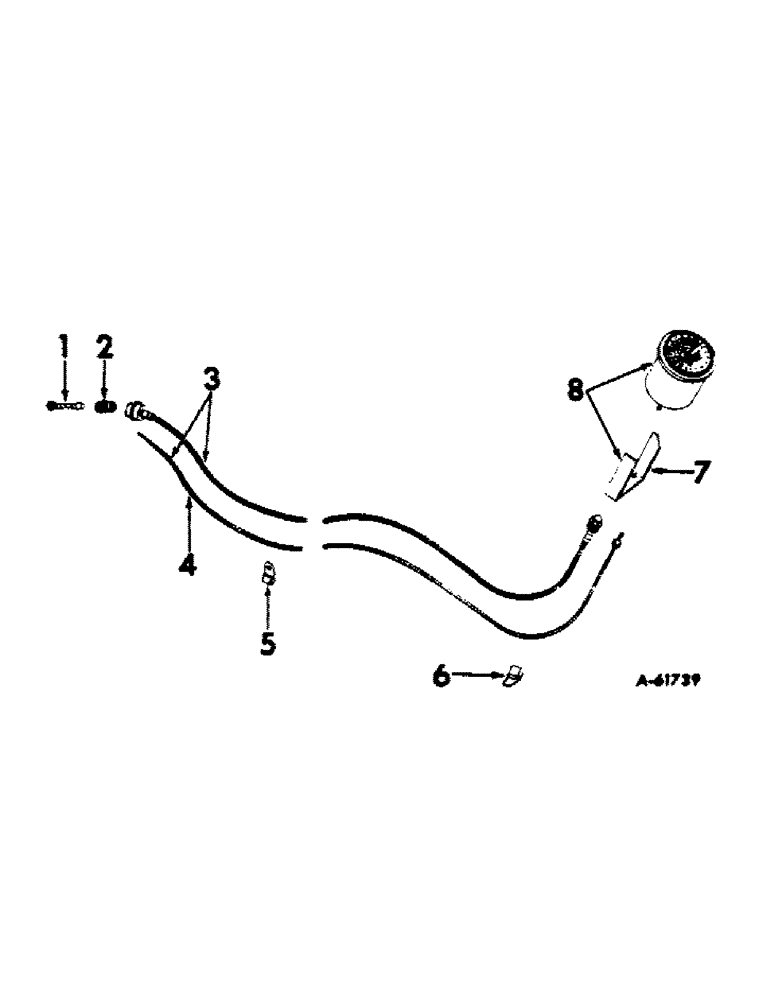

Запчасти Case IH 606 (170) - ENGINE CONTROLS, INSTRUMENTS, AND INSTRUMENT PANEL, TACHOMETER Engine Controls

1

368245R12

PINION

GEAR ASSEMBLY, tachometer drive

1шт.

2

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.

3

370197R91

CABLE

SHAFT ASSEMBLY, tachometer flexible drive

1шт.

4

370215R91

CORE

ASSEMBLY, tachometer flexible drive shaft

1шт.

5

(Not used)

1шт.

6

363812R1

CLIP, tachometer flexible drive shaft

1шт.

SCREW, 7/16 x 3/4" cap

1шт.

WASHER, 7/16" lock

1шт.

7

364482R1

CLAMP, tachometer mounting no. 10NF cd-pltd nut

2шт.

WASHER, no. 10 cd-pltd external-tooth lock

2шт.

8

383091R91

TACHOMETER ASSEMBLY

1шт.
