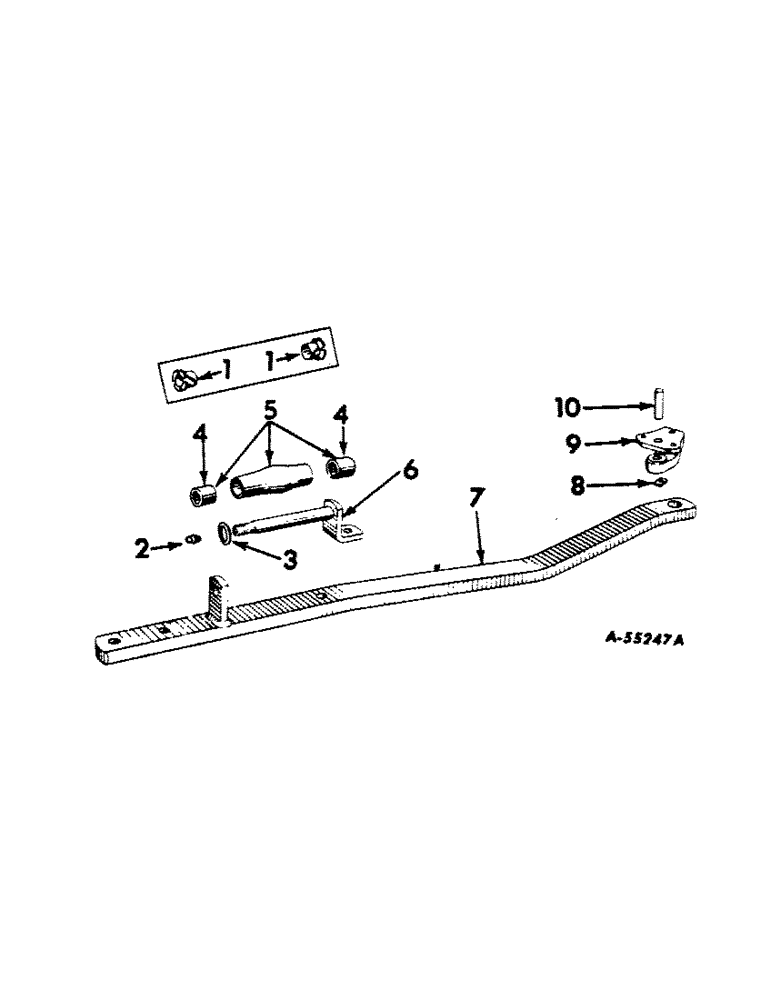

Запчасти Case IH 606 (159) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, FOR TRACTORS EQUIPPED WITH FIXED DRAWBAR Drawbar & Hitches

ATTACHMENT, swinging drawbar (383337R91)

1шт.

1

(Not used)

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

1шт.

3

358002R1

WASHER

drawbar roller shaft

2шт.

4

356564R1

BUSHING

drawbar roller

2шт.

5

356562R31

ROLLER

ASSEMBLY, swinging drawbar

1шт.

6

368512R11

SHAFT

AND SUPPORT ASSEMBLY, swinging drawbar roller

1шт.

102639

NUT,5/8"-11, G5

1шт.

425-1012

NUT,3/4"-10, G5

3/4"

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

7

383338R11

DRAWBAR ASSEMBLY, swinging

1шт.

105611

NUT

3/4" sq

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2" cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

57655D

PLATE

swinging drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

383256R1

PIVOT

SUPPORT, swinging drawbar pivot

1шт.

20671R1

BOLT

3/4 x 4-1/4" mach

1шт.

374336R1

BOLT,Hex, 3/4" - 10 x 1 7/8", Gr 2

swinging drawbar pivot support

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

10

57654D

PIVOT PIN

PIN, swinging drawbar pivot

1шт.

ATTACHMENT, swinging drawbar (376095R91) for tractors equipped with three point hitch)

1шт.
