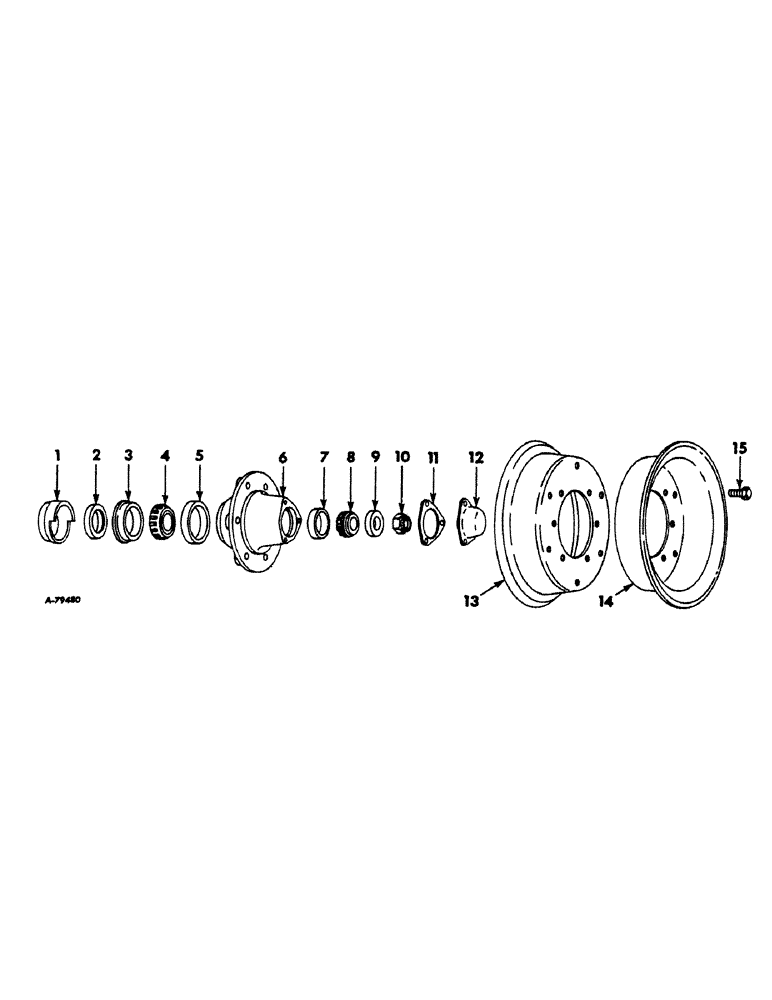

Запчасти Case IH 606 (128) - WHEELS, FRONT WHEELS, FOR ORCHARD AND MOWING OPERATIONS (11) - WHEELS

1

48541D

SHIELD

front wheel dust

2шт.

2

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

3

48548D

WASHER

front wheel oil seal wear

2шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, front wheel inner cone

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner

2шт.

6

386088R11

HUB

ASSY, front wheel (composed of (1) cup 371883R1, (1) cup 618024R1, (1) hub 368088R1 (NSS), (1) retainer 48548D)

1шт.

7

371883R1

BEARING CUP

Front wheel outer

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Front wheel outer

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" slt-hex (front wheel outer bearing retainer)

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8" C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

386081R1

WHEEL

front inner half (double disc type 6.00F-10 for 9.00-10 tire)

1шт.

14

386082R1

WHEEL

front outer half (double disc type 6.00F-10 for 9.00-10 tire)

2шт.

120371

NUT,1/2"-20, G5

12шт.

181696

1/2 x 1" C-Z hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul (consists of one each of ref nos. 2 through 5, 7, 8 and 11)

1шт.
