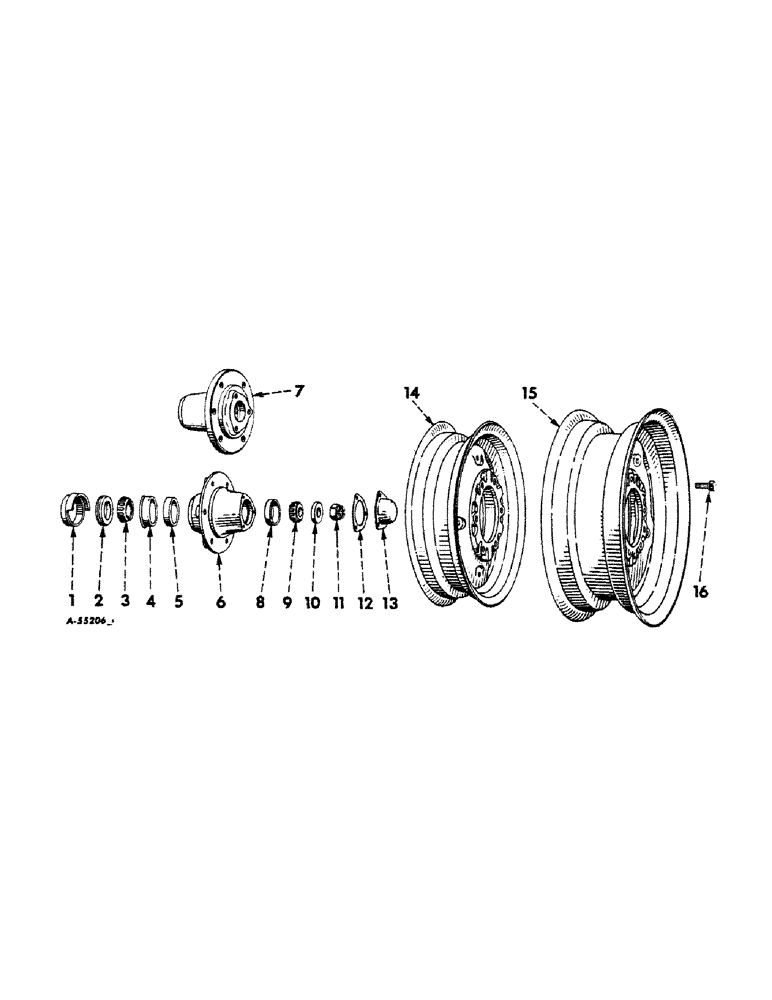

Запчасти Case IH 606 (127) - WHEELS, FRONT WHEELS, FOR STANDARD OR HEAVY-DUTY AXLES (11) - WHEELS

1

48541D

SHIELD

front wheel dust (2 for unit A)

1шт.

1

48701D

SHIELD

front wheel dust (2 for unit B)

1шт.

2

48539DA

PACKING RING

OIL SEAL, front wheel (2 for unit A)

1шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

OIL SEAL, front wheel (2 for unit B)

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front wheel inner bearing (2 for unit A)

1шт.

3

G15215

ROLLER BEARING

CONE, front wheel inner bearing (2 for unit B)

1шт.

4

48548D

WASHER

front wheel oil seal wear (2 for unit A)

1шт.

4

48703D

RETAINER

front wheel oil seal (2 for unit B)

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner (2 for unit A)

1шт.

5

619387R1

BEARING CUP

CUP, front wheel inner bearing (2 for unit B)

1шт.

6

369141R11

HUB

ASSEMBLY, front wheel (2 for unit A) (composed of (1) cup 371883R1, (1) cup 618024R1, (1) hub 369141R1 (NSS), (1) ring 48548D)

1шт.

7

391823R11

HUB

ASSEMBLY, front wheel (2 for unit B) (also order fitting, 19700R91) (composed of (1) cup 619387R1, (1) cup 618024R1, (1) hub 370256R2 (NSS), (1) retainer 48703D)

1шт.

7

391823R11GV

HUB

Value, Hub Assy.

1шт.

.

19700R91

FITTING

3/16 45 degree angle drive type lubrication

2шт.

8

371883R1

BEARING CUP

Front wheel outer (2 for unit A)

1шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer (2 for unit B)

1шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Front wheel outer (2 for unit A)

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front wheel outer bearing (2 for unit B)

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer (2 for unit A)

1шт.

10

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer (2 for unit B)

1шт.

11

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" slt (front wheel outer bearing retainer) (2 for unit A)

1шт.

11

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8NF alt hex (front wheel outer bearing retainer) (2 for unit B)

1шт.

.

PIN, 5/32 x 1-3/8" cotter

2шт.

12

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

13

369859R1

CAP

front wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8" C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

380065R91

WHEEL

ASSEMBLY, front (disc type 4.25 KA-16DC rim for 5.50-16 or 6.00-16 tire) (2 for unit A)

1шт.

14

380339R91

RIM

WHEEL ASSEMBLY, front (disc type 5.50 16-DC rim for 7.50-16 tire) (2 for Unit B)

1шт.

15

364343R92

WHEEL

ASSEMBLY, front (disc type 5.50 F-16DC rim for 7.50-16 tire) (2 for unit A)

1шт.

16

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul (consists of 1 each of ref. nos. 2 thru 5, 8 and 9) (2 for unit A)

1шт.

371418R91

PACKAGE

front wheel bearing overhaul (consists of 1 each of ref. nos. 2 thru 5, 8 and 9) (2 for unit B)

1шт.
