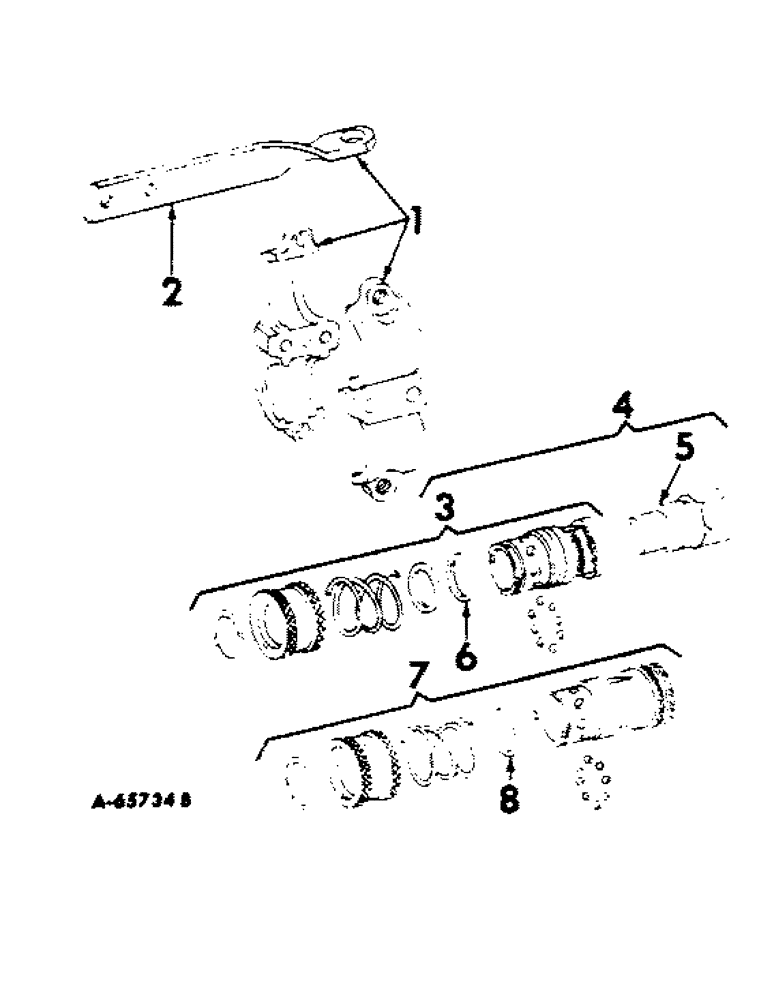

Запчасти Case IH 606 (157) - HYDRAULIC SYSTEM, FRAME AND SELF-SEALING COUPLING (07) - HYDRAULIC SYSTEM

1

379030R91

FUNNEL

FRAME ASSEMBLY, self-sealing coupling

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

379031R1

BRACKET

self-sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16 x 1-1/2" cd-pltd cap

2шт.

3

374793R92

COUPLING ASSEMBLY, female

1шт.

4

388986R91

COUPLING

UNION AND FEMALE COUPLING ASSEMBLY

1шт.

5

388988R91

UNION

ASSEMBLY

1шт.

6

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

female coupling (13/16 x 1-1/6 x 1/8")

2шт.

7

390831R91

COUPLING

ASSEMBLY, self-sealing

1шт.

8

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

self-sealing coupling (13/16 x 1-1/16 x 1/8")

1шт.
