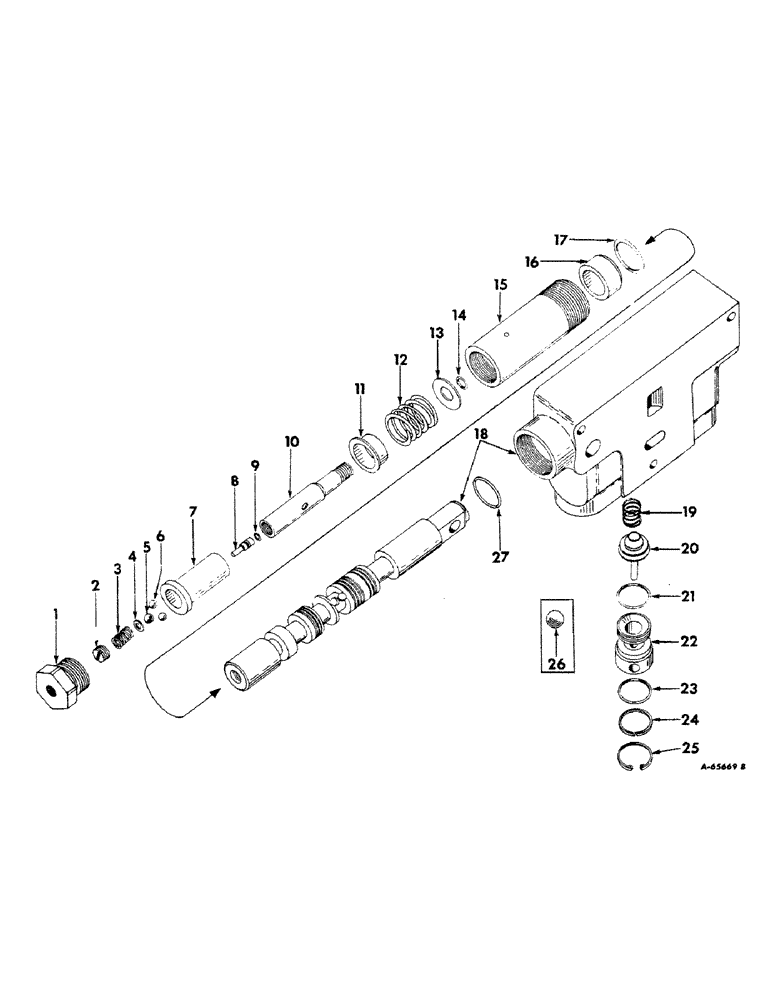

Запчасти Case IH 606 (153) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, WITH 7/8 INCH SPOOL (07) - HYDRAULIC SYSTEM

383267R91

VALVE

ASSEMBLY, hydraulic control (will work for 376385R95 valve)

1шт.

390826R91

VALVE

ASSEMBLY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, control valve cap

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel (detent) 1/4" Dia

3шт.

7

376426R1

SLEEVE

position control

1шт.

8

377804R1

PISTON

unlatching

1шт.

9

377805R1

GASKET

O-RING, unlatching piston (1/16 x 3/16 x 1/16")

1шт.

10

382659R1

BODY

ACTUATOR, centering spring

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R1

WASHER

centering spring-thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Actuator

1шт.

15

376430R1

SLEEVE

cap retaining

1шт.

16

382852R1

RETAINER, valve spool o-ring

1шт.

17

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

control valve spool lower (7/8 x 1-1/16 x 3/32")

1шт.

17

383548R91

PACKAGE

open center control valve (composed of (1) o-ring 253070R1, (1) o-ring 380839R1, (1) o-ring 359158R1, (1) o-ring 377805R1, (1) o-ring 362796R1, (1) o-ring 364879R1, (1) piston, unlatching 377804R1, (1) poppet assy 383279R11, (1) retainer 382852R1

1шт.

18

383274R11

BODY ASSEMBLY, control valve (used with 383267R91 valve)

1шт.

18

390827R11

BODY ASSEMBLY, control valve (used with 390826R91 valve)

1шт.

19

383190R1

SPRING

check poppet

1шт.

20

383279R11

VALVE POPPET

POPPET ASSEMBLY, check

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

check ball retainer-inner (7/8 x 1-1/16 x 3/32")

1шт.

22

383280R1

VALVE

RETAINER, check poppet

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

check ball retainer-outer (15/16 x 1-1/8 x 3/32")

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

25

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , check ball 1.188", Int, #118

1шт.

26

(Not used)

1шт.

27

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

control valve spool upper (7/8 x 1-1/8 x 1/8")

1шт.
