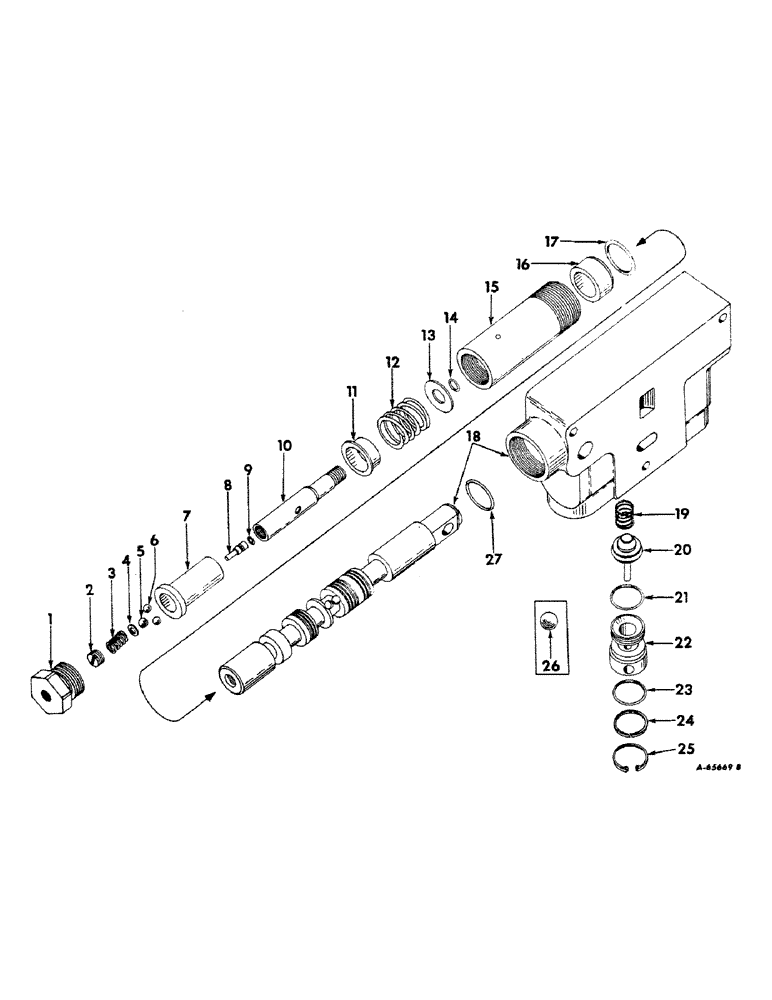

Запчасти Case IH 606 (151) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, WITH 1-INCH SPOOL (07) - HYDRAULIC SYSTEM

376385R95

VALVE

ASSEMBLY, hydraulic control (order 383267R91)

1шт.

1

376425R11

CAP

ASSEMBLY, control valve

1шт.

376429R1

SIEVE

PLUG, control valve cap

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel (detent) (2 used with actuator, 376413R1) 1/4" Dia

3шт.

7

376426R1

SLEEVE

position control

1шт.

8

377804R1

PISTON

unlatching

1шт.

9

377805R1

GASKET

O-RING, unlatching piston (1/16 x 3/16 x 1/16")

1шт.

10

376413R1

ACTUATOR

centering spring (order package, 382662R91)

1шт.

10

382659R1

BODY

ACTUATOR, centering spring

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R1

WASHER

centering spring-thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Actuator

1шт.

15

376430R1

SLEEVE

cap retaining

1шт.

16

376411R1

RETAINER, valve spool o-ring

1шт.

17

382137R1

O-RING,0.987" ID x 0.103" Width

control valve spool (1 x 1-3/16 x 3/32")

2шт.

Used only with valve body, 376109R1

1шт.

17

350818R1

O-RING,0.984" ID x 0.139" Width

control valve spool upper (1 x 1-1/4 x 1/8")

1шт.

Used only with valve body, 376109R2

1шт.

18

376109R22

BODY ASSEMBLY, control valve (order body 383274R11 and package 383548R91)

1шт.

19

383190R1

SPRING

check poppet

1шт.

20

383188R11

VALVE

POPPET ASSEMBLY, check

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

check ball retainer, inner (7/8 x 1-1/16 x 3/32")

1шт.

22

376432R1

RETAINER

check ball

1шт.

Used only with valve body, 376109R1

1шт.

22

381746R1

RETAINER

check ball (order poppet assembly, 383188R11, retainer, 383189R1 and spring, 383190R1)

1шт.

Used only with valve body, 376109R2

1шт.

22

383189R1

RETAINER, check poppet

1шт.

Used only with poppet, 383188R11 and spring, 383190R1

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

check ball retainer, outer (15/16 x 1-1/8 x 3/32")

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

25

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , check ball 1.188", Int, #118

1шт.

Used only with valve body, 376109R2

1шт.

26

376431R1

BALL, check (used with retainer, 376432R1 and 381746R1)

1шт.

27

382137R1

O-RING,0.987" ID x 0.103" Width

control valve spool lower (1 x 1-3/16 x 3/32")

1шт.

Used only with valve body, 376109R2

1шт.

382662R91

KIT

PACKAGE, actuator assembly (consists of (1) actuator 382659R1, (3) ball 17008R1, (1) ball 17010R1, (1) o-ring 359158R1, (1) o-ring 377805R1, (1) piston 377804R1, (1) plug 377803R1, (1) sleeve 376426R1, (1) spring 377802R1, (1) washer 377801R1)

1шт.
