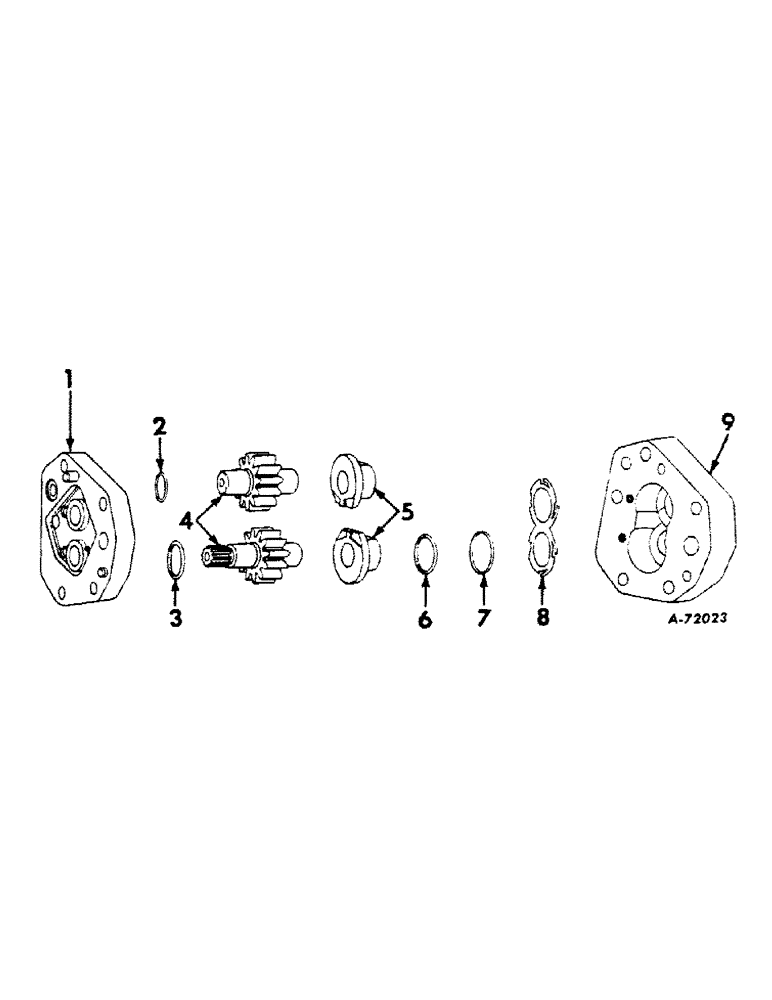

Запчасти Case IH 606 (147) - HYDRAULIC SYSTEM, HYDRAULIC GEAR PUMP, THOMPSON, 4.5 OR 7 G.P.M. (07) - HYDRAULIC SYSTEM

1

383201R92

COVER ASSEMBLY, pump front

1шт.

For service replacement also order o-ring and gasket package, 371542R92

1шт.

2

O-RING, pump cover pressure (9/16 x 11/16") (not serviced separately, order package, 371542R92)

1шт.

3

O-RING, pump cover (not serviced separately, order package, 371542R92)

1шт.

4

383202R91

PACKAGE, drive and driven gear (unit A)

1шт.

For service replacement also order o-ring and gasket package, 371542R92

1шт.

4

371806R91

PACKAGE, drive and driven gear (unit B)

1шт.

For service replacement also order o-ring and gasket package, 371542R92

1шт.

5

381156R91

PACKAGE, pressure bearing (unit A)

1шт.

For service replacement also order o-ring and gasket package, 371542R92

1шт.

5

381159R91

PACKAGE, pressure bearing (unit B)

1шт.

For service replacement also order o-ring and gasket package, 371542R92

1шт.

6

O-RING, pressure bearing (7/8 x 1-1/16 x 3/32") (not serviced separately, order package, 371542R92)

2шт.

7

373182R1

RETAINER

pressure bearing o-ring

2шт.

8

371531R1

SPRING, pressure plate

1шт.

9

BODY, pump (not serviced separately, order pump assembly)

1шт.

371542R92

PACKAGE, hydraulic pump o-ring and gasket service (composed of (1) gasket 371543R2, (2) o-ring 253070R1 (NSS), (2) o-ring 364879R1 (NSS), (2) o-ring 371544R1 (NSS), (1) o-ring 371545R1 (NSS), (2) washer 368635R1 (NSS)

1шт.
