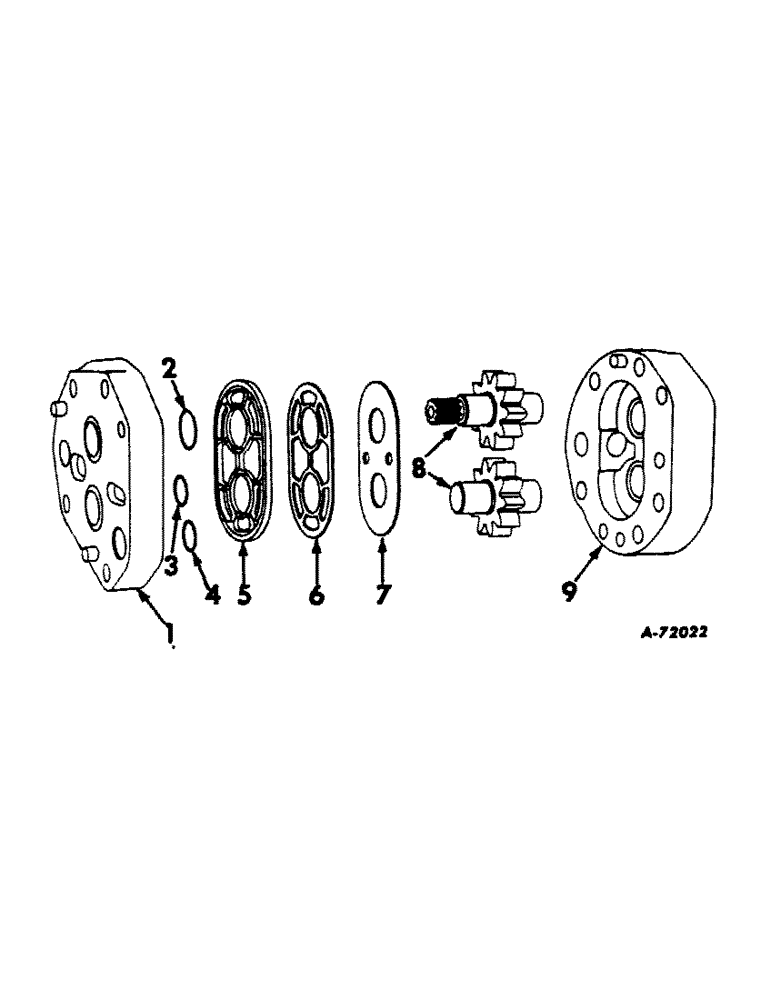

Запчасти Case IH 606 (146) - HYDRAULIC SYSTEM, HYDRAULIC GEAR PUMP, CESSNA, 4.5 OR 7 G.P.M. (07) - HYDRAULIC SYSTEM

1

381158R91

COVER ASSEMBLY, pump front

1шт.

For service replacement, also order o-ring and gasket package, 381154R91

1шт.

2

574069R1

O-RING,0.750" ID x .062"

pump cover (3/4 x 7/8 x 1/16")

1шт.

3

370920R1

O-RING,1/2" ID

pump cover (1/2 x 5/8 x 1/16")

1шт.

4

O-RING, pump pressure-internal (9/16 x 11/16 x 1/16") (not serviced separately, order package, 381154R91)

1шт.

5

SEAL, diaphragm (not serviced separately, order package, 381154R91)

1шт.

6

GASKET, back-up (not serviced separately, order package, 381154R91)

1шт.

7

DIAPHRAGM, pressure (not serviced separately, order package, 381154R91)

1шт.

8

381198R91

PACKAGE, drive and driven gear (unit A)

1шт.

For service replacement, also order o-ring and gasket package, 381154R91

1шт.

8

371813R91

PACKAGE, drive and driven gear (unit B)

1шт.

For service replacement, also order o-ring and gasket package, 381154R91

1шт.

9

381157R91

BODY W/BUSHINGS ASSEMBLY, pump (unit A)

1шт.

For service replacement, also order o-ring and gasket package, 381154R91

1шт.

9

381160R91

BODY W/BUSHINGS ASSEMBLY, pump (unit B)

1шт.

For service replacement, also order o-ring and gasket package, 381154R91

1шт.

381154R91

PACKAGE

hydraulic pump o-ring and gasket service (composed of (1) diaphragm 371551R1 (NSS), (1) gasket 371543R2, (1) gasket 371553R1 (NSS), (1) gasket 381155R1 (NSS), (1) o-ring 370920R1, (2) o-ring 371544R1 (NSS), (1) o-ring 574069R1, (1) seal 371552R1

1шт.
