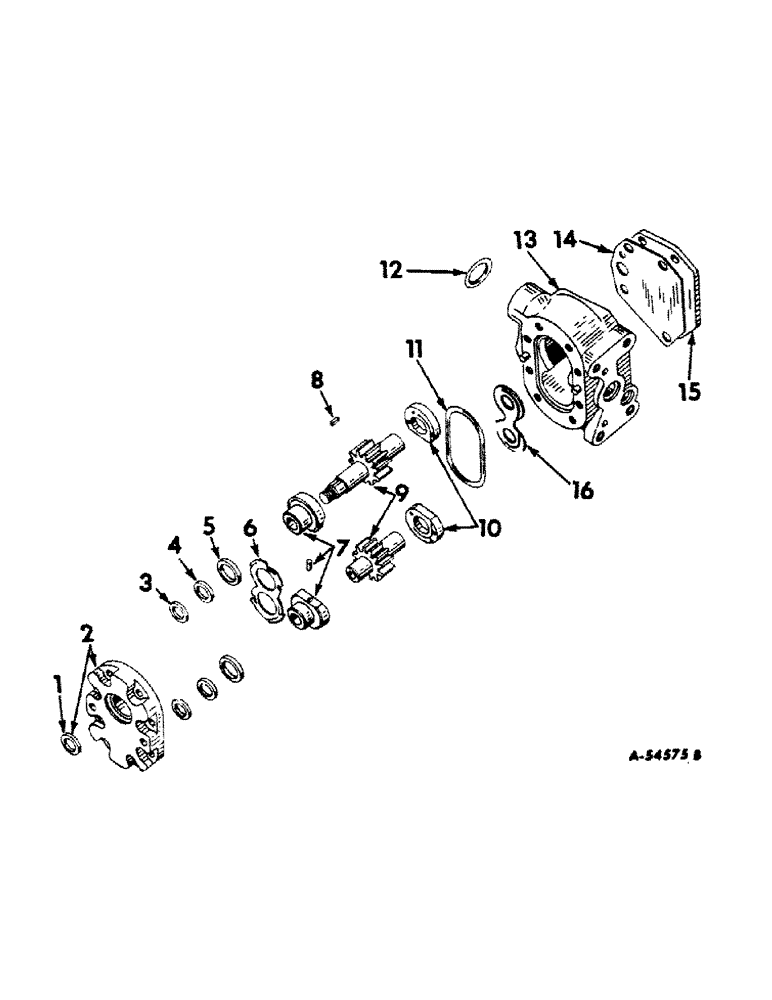

Запчасти Case IH 606 (145) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON, 12 OR 17 G.P.M (07) - HYDRAULIC SYSTEM

1

373157R91

OIL SEAL

OIL SEAL, pump shaft

1шт.

2

374542R91

COVER ASSEMBLY, pump

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

380617R1

SCREW, 12 point cap

8шт.

3

WASHER, back-up (not serviced separately, order package, 371549R93)

2шт.

4

O-RING, pressure bearing (not serviced separately, order package, 371549R93)

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

371807R91

BEARING

PACKAGE, pressure bearing

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

7

1949296C1

REMAN-HYD PUMP

Reman For New PN 371807R91

1шт.

7

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

370942R1

KEY

pump drive gear (5/32 sq. parallel)

1шт.

9

371804R91

PACKAGE, drive and driven gear (unit A)

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

9

371805R91

PACKAGE, drive and driven gear (unit B)

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

10

371810R91

PACKAGE, body bearing

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

19501R1

SCREW, no. 6 x 1" hex-soc-hd cap

6шт.

11

O-RING, pump cover (not serviced separately, order package, 371549R93)

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

suction port (1-1/4 x 1-1/2 x 1/8")

1шт.

13

374547R94

BODY W/BEARINGS ASSEMBLY, pump (unit A)

1шт.

For service replacement on 374547R92 or 373169R92

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

13

373169R94

BODY W/BEARINGS ASSEMBLY, pump (unit B)

1шт.

For service replacement on 374547R92 or 373169R92

1шт.

For service replacement also order o-ring and gasket package, 371549R93

1шт.

14

GASKET, implement pump rear cover (not serviced separately, order package, 371549R93)

1шт.

15

371532R1

COVER, implement pump rear

1шт.

16

383664R1

LARGE PLATE

PLATE, body wear

1шт.

371549R93

PACKAGE

hydraulic pump o-ring and gasket service (consists of (1) gasket 371547R1 (NSS), (1) oil seal 373157R91, (1) o-ring 252483R1, (1) o-ring 252739R1, (1) o-ring 254091R1 (NSS), (1) o-ring 254691R1, (2) o-ring 372764R1 (NSS), (1) o-ring 352221R1, (2)

1шт.
