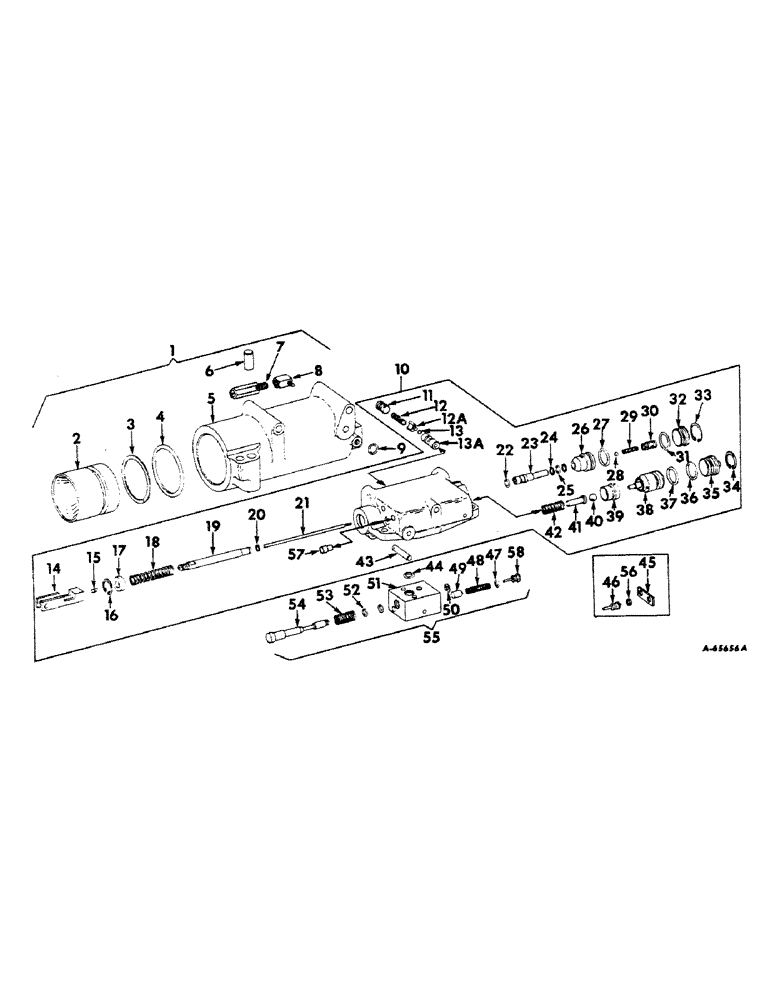

Запчасти Case IH 606 (142) - HYDRAULIC SYSTEM, DRAFT CONTROL CYLINDER AND VALVE (07) - HYDRAULIC SYSTEM

375991R93

VALVE

CYLINDER AND VALVE ASSEMBLY

1шт.

1

375935R11

CYLINDER ASSEMBLY, draft control

1шт.

SCREW, 3/8 x 1-1/4" cap

2шт.

SCREW, 3/8 x 4" cap

2шт.

WASHER, 3/8" lock

3шт.

2

375937R1

PISTON, draft control

1шт.

3

375936R1

BACK-UP RING

WASHER, piston o-ring back-up

1шт.

4

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

draft control piston

1шт.

5

375935R1

CYLINDER, draft control

1шт.

6

141283

SUPPORT,1/2" x 1"

PIN, 1/2 x 1" dowel

1шт.

7

379906R91

VALVE

ASSEMBLY, relief

1шт.

8

379912R1

ELBOW, relief valve

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

valve to cylinder (9/16 x 3/4 x 3/32")

1шт.

10

376750R92

VALVE

ASSEMBLY, draft control

1шт.

11

377795R1

SCREW, spring retaining

1шт.

12

376760R1

SPRING

draft flow control valve

1шт.

12a

379025R2

RETAINER

control valve check ball

1шт.

13

381009R1

BALL

control valve check

1шт.

13a

383011R1

VALVE, flow control

1шт.

14

376757R1

YOKE

ACTUATOR, main valve

1шт.

15

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

SCREW, drop valve adjusting

1шт.

16

303322R1

SNAP RING,1.00", Int, #100

Main valve 1.00", Int, #100

1шт.

17

376759R1

RETAINER

main valve spring

1шт.

18

376758R1

SPRING

main valve

1шт.

19

376756R11

DISTRIBUTOR

TUBE W/NUT, 114493 assembly, main valve actuator

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

20

376771R1

RING, SNAP

RING, main valve tube retaining

1шт.

21

376763R1

ROD

drop valve actuating

1шт.

22

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

pilot valve seat (5/16 x 7/16 x 1/16")

1шт.

23

392041R1

SEAT/SLOT

SEAT, drop pilot valve

1шт.

24

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet inner o-ring back-up

2шт.

25

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

drop poppet valve inner (3/8 x 1/2 x 1/16")

1шт.

26

376766R1

VALVE POPPET

VALVE, drop poppet

1шт.

27

350818R1

O-RING,0.984" ID x 0.139" Width

drop poppet valve outer (1 x 1-1/4 x 1/8")

1шт.

28

17006R1

BALL

3/16" dia cr-stl (pilot valve)

1шт.

29

376765R1

SPRING

pilot valve

1шт.

30

376768R1

SPRING

drop poppet valve

1шт.

31

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

drop valve plug (1-1/8 x 1-1/4 x 1/16")

1шт.

32

376770R1

PLUG

drop valve

1шт.

33

58102R1

SNAP RING,1.312", Int, #131

Drop valve 1.312", Int, #131

1шт.

34

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , unloading valve plug 1.188", Int, #118

1шт.

35

375954R1

RETAINER

PLUG, unloading valve piston

1шт.

36

362796R1

O-RING,0.924" ID x 0.103" Width

unloading valve plug (15/16 x 1-1/8 x 3/32")

1шт.

37

352024R2

O-RING,0.551" ID x 0.07" Width

unloading valve piston (55/64 x 1-1/8 x 9/64")

1шт.

38

376762R1

PISTON ASSEMBLY, unloading valve

1шт.

39

366665R2

FITTING

SEAT, unloading valve

1шт.

40

17015R1

BALL,15/32" Dia

cr-stl (unloading valve) 15/32" Dia

1шт.

41

378808R1

SHIM

RIDER, unloading valve ball

1шт.

42

381718R1

SPRING

unloading valve ball rider

1шт.

43

375940R1

PIN, linkage pivot

1шт.

44

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

drop control valve (1/2 x 5/8 x 1/16")

1шт.

45

380480R1

RETAINER, plug

1шт.

451603

SCREW, no. 8 x 5/16" cr-rec-truss-hd w/washer

2шт.

46

379755R11

PLUG ASSEMBLY, spring retainer

1шт.

19406R1

Pin, 3/32" x 1 1/8", Slotted, ESNA 3/32" x 1 1/8", Slotted

1шт.

47

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

spring retaining plug (1/4 x 3/8 x 1/16")

1шт.

48

378805R1

SPRING, drop control

1шт.

49

376815R1

PISTON, drop control valve

1шт.

50

392320R1

SNAP RING,#31, Ext, E-Type

Ring, Retaining, , variable orifice spool #31, Ext, E-Type

1шт.

51

BODY W/PLUGS ASSEMBLY, drop control valve (not serviced separately, order valve, 375959R92)

1шт.

52

355967R1

O-RING,0.364" ID x 0.003" Width

variable orifice spool (3/8 x 1/2 x 1/16")

2шт.

53

375962R1

SPRING

spool return

1шт.

54

375961R1

SPOOL, variable orifice

1шт.

55

375959R92

VALVE ASSEMBLY, drop control

1шт.

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, 1/4 x 1-1/2" hex-socket-hd cap

2шт.

56

381193R1

SPACER, drop control valve

1шт.

57

382547R1

PIN

retaining

1шт.

58

382548R1

PLUG ASSEMBLY, spring retainer

1шт.

Used with drop control valve, 375959R92

1шт.
