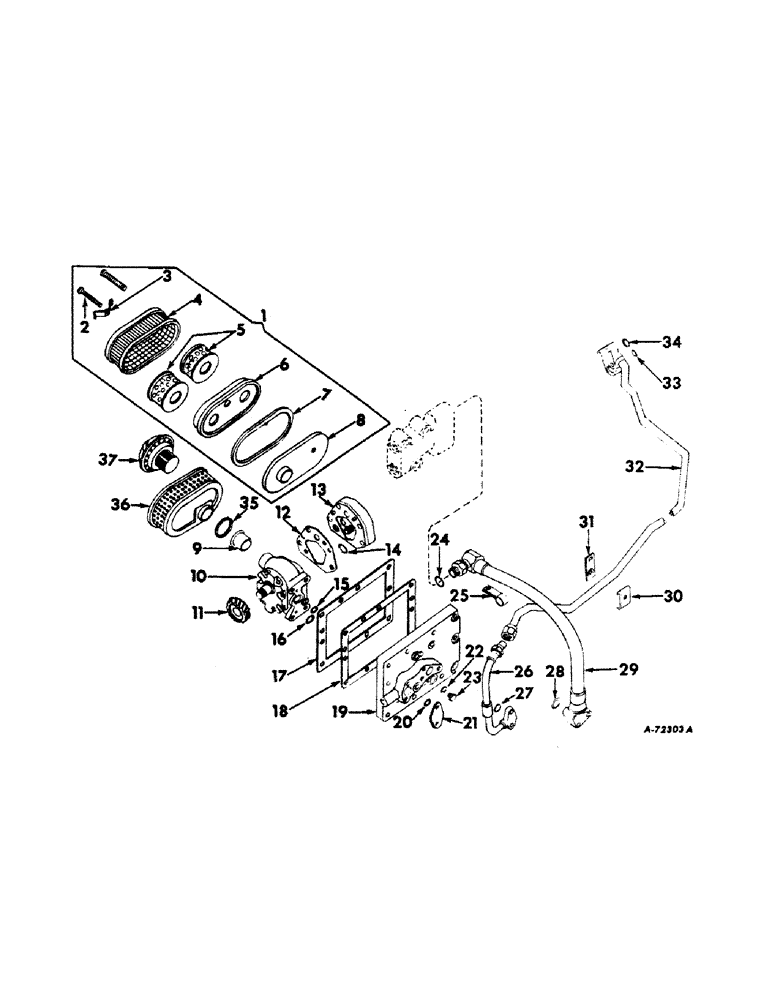

Запчасти Case IH 606 (136) - HYDRAULIC SYSTEM, HYDRAULIC POWER SUPPLY (07) - HYDRAULIC SYSTEM

1

374990R91

NO LONGER SERVICED

FILTER ASSEMBLY, tandem oil (less elements) (order package 388084R91 and valve 386121R92), up to serial no. 5102

1шт.

1

382854R91

FILTER ASSEMBLY, tandem oil (less elements) (Tractors with 17 GPM pump) (order package 388085R91 and six screws 179847), up to serial no. 5662

1шт.

2

375097R1

SCREW, oil filter with 12 GPM pump, up to serial no. 5102, with 17 GPM pump, up to serial no. 5662

1шт.

3

374997R1

SPRING, oil filter retainer, with 12 GPM pump, up to serial no. 5102, with 17 GPM pump, up to serial no. 5662

1шт.

4

374991R11

SCREEN ASSEMBLY, oil filter (order valve 386121R92, and package 388084R91) for tractors with 12 GPM pump - serial no. 501 to 5102 or package 388085R91 for tractors with 17 GPM pump- up to serial no. 5662)

1шт.

5

375085R91

FILTER

PACKAGE, oil filter element (consists of two elements, gasket 370801R1 and gasket 374996R1)

1шт.

6

374994R1

RETAINER, oil filter element (used with filter 374990R91), up to serial no. 5102

1шт.

6

382855R1

RETAINER, oil filter element (used with filter 382854R91), up to serial no. 5662

1шт.

7

374996R1

GASKET

oil filter element support with 12 GPM pump, up to serial no. 5102, with 17 GPM pump, up to serial no. 5662

1шт.

8

374995R11

SUPPORT ASSEMBLY, oil filter element with 12 GPM pump, up to serial no. 5102, with 17 GPM pump, up to serial no. 5662

1шт.

9

384021R91

PACKAGE

suction tube service, up to serial no. 2161

1шт.

9

384022R92

PACKAGE

suction tube service, serial no. 2162 and above

1шт.

10

374483R95

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear (12 GPM) (Thompson) (For components see list of parts under details of "Hydraulic Pump") (optional with 373964R93)

1шт.

For service replacement on 373964R92 and 374483R92 pumps also order package 384022R91

1шт.

10

373964R93

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear (12 GPM) (Cessna) (for components, see list of parts under details of "Hydraulic Pump") (optional with 374483R95)

1шт.

For service replacement on 373964R92 and 374483R92 pumps also order package 384022R91

1шт.

10

370880R94

PUMP

ASSEMBLY, hydraulic gear (17 GPM) (Thompson) (for components, see list of parts under details of "Hydraulic Pump") (optional with 373966R93)

1шт.

For service replacement on 373964R92 and 374483R92 pumps also order package 384022R91

1шт.

10

1949292C1

REMAN-HYD PUMP

Reman For New PN 370880R94

1шт.

10

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

373966R93

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear (17 GPM) (Cessna) (for components, see list of parts under details of "Hydraulic Pump") (optional with 370880R94)

1шт.

For service replacement on 373964R92 and 374483R92 pumps also order package 384022R91

1шт.

52999D

WASHER

GASKET, pump mounting screw

4шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8" hex-hd cap

4шт.

11

373711R1

PINION

GEAR, pump drive (15 teeth), serial no., Serial Range: 501-1015

1шт.

11

382902R1

GEAR

pump drive (17 teeth) serial no. 1016 and above

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8NF elastic stop

1шт.

12

371543R2

GASKET

hydraulic gear pump

1шт.

13

378865R92

PUMP

ASSEMBLY, hydraulic gear (4.5 GPM) (Thompson) (for components see list of parts under details of ("Hydraulic Pump") (optional with 378866R91)

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8 x 2-1/2" cap

4шт.

13

378866R91

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear (4.5 GPM) (Cessna) (for components see list of parts under details of "Hydraulic Pump") (optional with 378865R92)

1шт.

13

1949294C1

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

13

1949295C1

CORE-HYDRAULIC PUMP

Return Number\r\n, Hydraulic Pump

1шт.

354922R1

SCREW,Hex, 3/8"-16 x 2", G8

3/8 x 2" cap

4шт.

13

381115R92

PUMP

ASSEMBLY, hydraulic gear (7 GPM) (Thompson) (for components see list of parts under details of "Hydraulic Pump") (optional with 381116R91)

1шт.

20649R1

BOLT (SPREADER),Hex, 3/8" - 16 x 2 1/4", Gr 8

SCREW, 3/8 x 2-1/4" cap

4шт.

13

381116R91

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear (7 GPM) (Cessna) (for components see list of parts under details of "Hydraulic Pump") (optional with 381115R92)

1шт.

631449R1

RING, SNAP

SCREW, 3/8 x 2-1/2" cap

4шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

hydraulic gear pump (9/16 x 11/16 x 1/16")

1шт.

15

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

pressure port-small (1/2 x 11/16 x 3/32") (used only with pumps 374483R91, 373964R91, 370880R91 and 373966R91)

1шт.

15

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pump pressure port-small (9/16 x 3/4 x 3/32")

1шт.

16

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

pump pressure port-large (13/16 x 1-1/16 x 1/8")

1шт.

17

370892R2

GASKET

pump mounting flange - light (.011 - .019" thick)

1шт.

17

370893R2

GASKET

pump mounting flange-heavy (.016 - .024 thick)

1шт.

18

371043R1

SPACER

pump mounting flange (used with flange, 381719R11)

1шт.

Also order spacer, 371043R1 when used with gear, 382902R1

1шт.

19

381719R11

FLANGE ASSEMBLY, pump mounting (used with gear, 373711R1)

1шт.

Also order spacer, 371043R1 when used with gear, 382902R1

1шт.

19

383022R11

FLANGE ASSEMBLY, pump mounting (used with gear, 382902R1)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8 x 1-1/8" cap

3шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 x 1-3/8" cap (7 used with flange, 381719R11)

1шт.

NLS

NO LONGER SERVICED

(7 used with flange, 383022R11) Hex, 3/8"-16 x 1 1/2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

384116R1

PIN

pump mounting flange dowel

4шт.

20

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pressure port cover (9/16 x 3/4 x 3/32")

1шт.

21

378276R1

COVER

draft control pressure port (tractors without draft control)

1шт.

22

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, mounting flange plug

1шт.

23

9410358

PLUG

mounting flange

1шт.

24

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump pressure hose (59/64 x 1-1/16 x 7/64")

1шт.

25

381622R1

CLIP, pressure tube

1шт.

26

381120R92

TUBE

AND TUBE ASSEMBLY, pump pressure

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

27

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pressure hose flange (9/16 x 3/4 x 3/32")

1шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

pressure hose flange (13/16 x 1 x 3/32")

1шт.

29

379644R91

HOSE ASSY.,19.05mm ID x 539.75mm L, SAE 100R2

HOSE ASSEMBLY, pump pressure

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

30

381426R1

CLAMP, pressure tube, up to serial no. 2437

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

30

384972R1

CLAMP, pressure tube, serial no. 2438 and above

1шт.

31

381425R11

BRACKET ASSEMBLY, pressure tube

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 ga) 3/8"

1шт.

32

38118R21

TUBE ASSEMBLY, pump pressure

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

33

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

pressure tube flange (15/16 x 1-3/16 x 1/8)

1шт.

34

356005R1

O-RING,1.109" ID x 0.139" Width

pressure tube flange (1-1/8 x 1-3/8 x 1/8")

1шт.

35

388082R1

O-RING,1.424" ID x 0.099" Width

RING, oil filter seal with 12 GPM pump, serial no. 5103 and above, with 17 GPM pump, serial no. 5663 and above

1шт.

36

388084R92

FILTER

PACKAGE, oil filter element service (consists of element, gasket, 370801R1 and ring 388082R1), serial no. 5103 and above

1шт.

36

388084R93GV

HYDRAULIC OIL FILTER

Value, Hydraulic Oil Filter

1шт.

36

388085R91

FILTER

PACKAGE, oil filter element service (tractors with 17 GPM pump) (consists of element, gasket, 370801R1 and ring, 388082R1), serial no. 5663 and above

1шт.

37

386121R92

VALVE

ASSEMBLY, hydraulic filter relief with 12 GPM pump - serial no. 5103 and above, with 17 GPM pump, serial no. 5663 and above

1шт.

377250R91

PARTS ACCESSORY, 4.5 GPM pump (for tractors equipped with draft control) (consists of (1) bracket 381425R11, (1) clamp 381426R1, (1) clip 381622R1, (1) gasket 371543R2, (1) hose 381120R92, (1) o-ring 352221R1, (1) o-ring 355965R1, (1) o-ring 356005R1, (1)

1шт.

381378R91

PARTS ACCESSORY, 7 GPM pump (for tractors with backhoe or loader) (consists of (1) bracket 381425R11, (1) clamp 381426R1, (1) clip 381622R1, (1) gasket 371543R2, (1) flange 378030R2, (1) hose 381120R92, (1) o-ring 352221R1, (1) o-ring 355965R1, (1) o-ring

1шт.

377254R91

PARTS ACCESSORY, 17 GPM pump (for tractors equipped with auxiliary valves, independent power take-off or torque amplifier and not equipped with 4.5 GPM pump) (consists of pump, 373966R92)

1шт.
