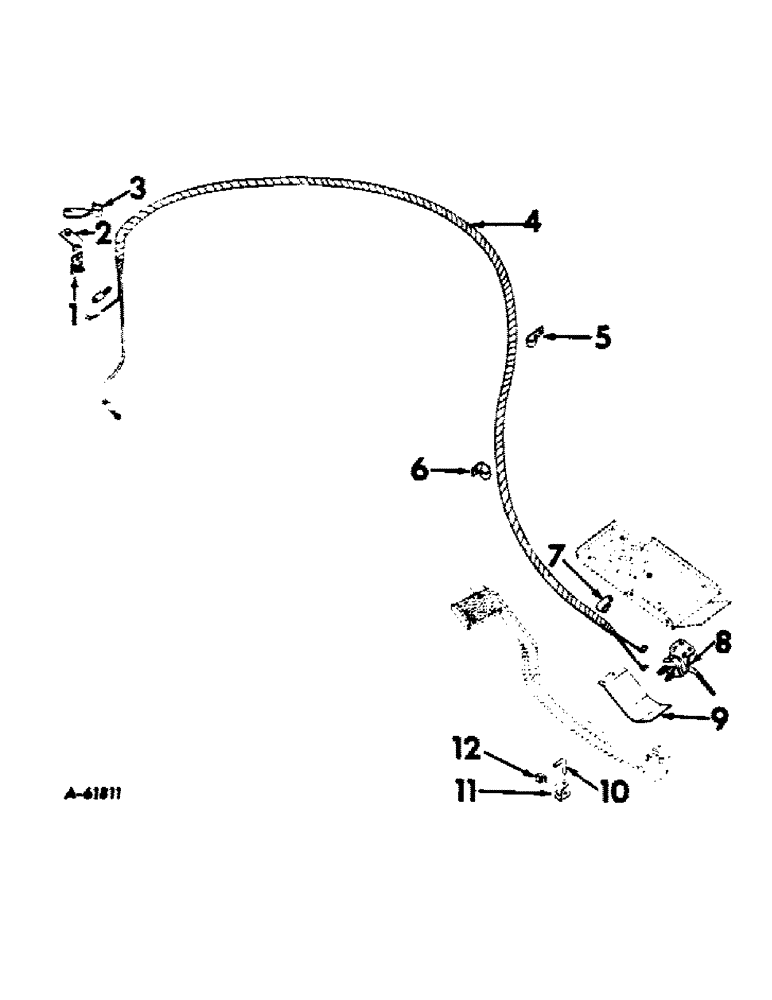

Запчасти Case IH 606 (095) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH (06) - ELECTRICAL SYSTEMS

379345R91

PARTS ACCESSORY, safety starting switch

1шт.

1

42915D

BLOCK

junction

1шт.

110633

NUT,#10-24

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10 x 1/2" slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

42916D

BRACKET, junction block

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

3

370740R1

CLAMP

CLIP, cable harness (on fuel tank support LH rear mounting bolt)

1шт.

4

375478R91

HARNESS ASSEMBLY, safety starting switch cable

1шт.

5

355097R1

CLIP, cable harness (on clutch housing top cover first LH mounting bolt)

1шт.

6

359526R1

CLIP, cable harness (on upper mounting bolt of Torque Amplifier lever ratchet)

1шт.

7

358431R1

CLIP, cable ahrness (on under side of platform LH rear mounting bolt)

1шт.

8

375477R91

SWITCH

ASSEMBLY, safety starting

1шт.

125981

SCREW, no. 10NF x 5/16" hex-hd mach

2шт.

9

NOT USED

1шт.

10

379343R91

ARM, safety starting switch control

1шт.

11

375473R1

BRACKET, safety starting switch control arm

1шт.

12

375474R1

NUT, safety starting switch control bracket

1шт.

SCREW, 1/4 x 5/8" cap

1шт.
