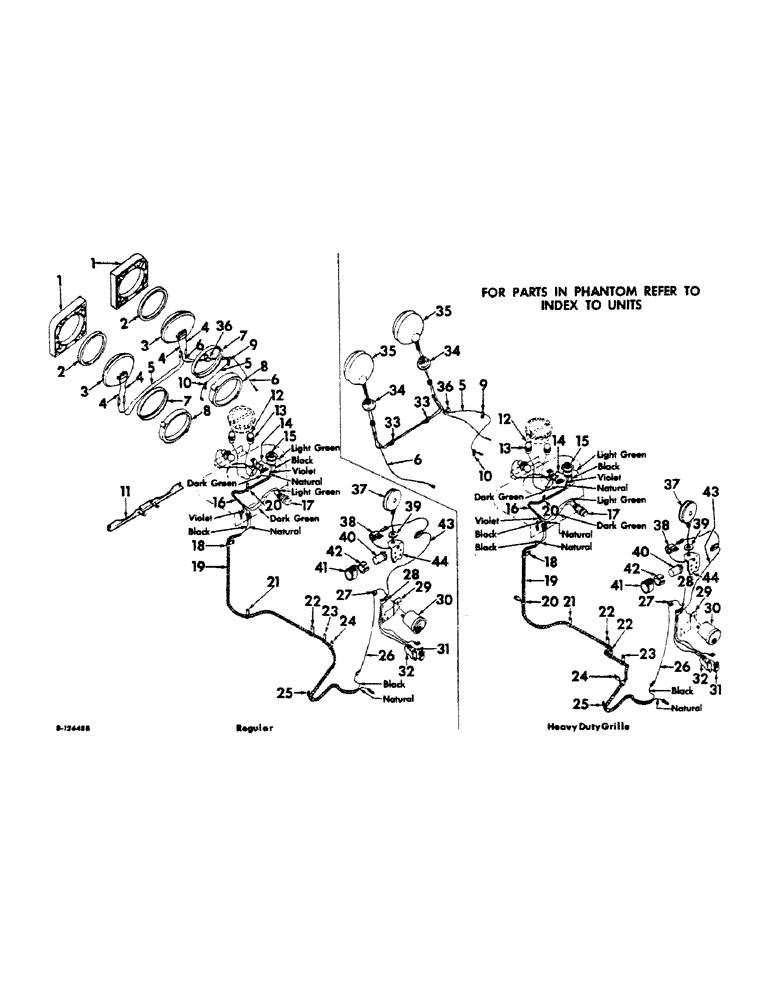

Запчасти Case IH 606 (092) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS

1

377302R1

HOUSING, headlight (2 for unit A)

1шт.

153797

SCREW, 1/4 x 1" cr-rec-fil-hd mach

6шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

no. 10 x 1-1/2" cr-rec-fil-hd mach

4шт.

2

377303R1

RING

headlight retaining-front (2 for unit A)

1шт.

3

373662R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam (2 for unit A)

1шт.

4

377300R91

CABLE ASSEMBLY, headlight junction (4 for unit A)

1шт.

5

377299R91

CABLE ASSEMBLY, harness to headlight junction

1шт.

6

377301R91

CABLE ASSEMBLY, headlight, Serial Range: junction-ground

1шт.

7

377304R1

SPECIAL RING

RING, headlight retaining-rear (2 for unit A)

1шт.

8

377305R1

RING

headlight clamping (2 for unit A)

1шт.

9

366460R1

CABLE CLIP

CLIP, headlight cable (on hood grille housing support lower mounting bolt)

1шт.

10

366460R1

CABLE CLIP

CLIP, headlight cable (on radiator brace RH side)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

377535R11

BRACE ASSEMBLY, headlight mounting (unit A)

1шт.

377536R91

NUT, 1/4" floating cage

2шт.

12

NLS

NO LONGER SERVICED

instrument light no. 57 (12 volt) (2 used on tractors without fuel gauge)

3шт.

13

376853R91

SOCKET

ASSEMBLY, instrument light bulb (2 used on tractors without fuel gauge)

3шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

14

376869R91

CABLE

ASSEMBLY, lighting switch to junction block

1шт.

15

376851R91

LIGHT SWITCH

SWITCH ASSEMBLY, lighting

1шт.

16

377298R91

HARNESS ASSEMBLY, lighting cable

1шт.

17

376852R91

HOUSING

ASSEMBLY, fuse

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable (on voltage regulator support LH mounting bolt)

1шт.

19

381543R91

HARNESS ASSEMBLY, rear light cable

1шт.

20

362123R1

CLIP

light cable harness (on upper mounting bolt of governor friction plate)

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable (on clutch housing top cover LH bolt)

1шт.

22

358986R1

CABLE CLIP

CLIP, rear light cable (on rear frame spacer LH side)

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable (on hydraulic housing LH side)

1шт.

24

362123R1

CLIP

rear light cable (on rear frame spacer Lh side mounting bolt)

1шт.

25

358986R1

CABLE CLIP

CLIP, rear light cable (on LH fender front Lh mounting bolt)

1шт.

26

377116R91

CABLE ASSEMBLY, breakaway connector socket junction

1шт.

27

363846R1

GROMMET

breakaway connector socket junction cable

1шт.

28

366460R1

CABLE CLIP

CLIP, tail light cable (on tail light bracket rear mounting bolt)

1шт.

29

379770R1

BRACKET, tail light

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4" cap

3шт.

30

379789R91

LAMP

LIGHT ASSEMBLY, tail (only serviceable item is no. 67 lamp, 142450)

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

362002R92

SOCKET

ASSEMBLY, electric breakaway connector

1шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

377119R91

CABLE ASSEMBLY, breakaway connector, Serial Range: socket-ground

1шт.

33

370383R1

CLIP

cable harness (on headlight mounting bracket bolts (2 for unit B)

1шт.

34

370307R1

SEAT

headlight mounting ball (2 for unit B)

1шт.

35

377866R91

LIGHT

HEADLIGHT ASSEMBLY, sealed beam (only serviceable item is sealed beam unit, 371443R91) (2 for unit B)

1шт.

25-118

NUT,1/2"-20, G5

1/2NF

2шт.

36

370383R1

CLIP

headlight cable (on oil cooler upper RH mounting bolt)

1шт.

377533R11

GRILLE ASSEMBLY, radiator (illustrated with "Hood and Radiator Grille")

1шт.

376787R1

WASHER

RETAINER, radiator grille screw

2шт.

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

radiator grille

2шт.

37

394129R91

LIGHT

ASSEMBLY, flashing warning (only serviceable item is lamp, 9417866)

1шт.

38

358986R1

CABLE CLIP

CLIP, flasher light cable

1шт.

39

394262R1

WASHER

GASKET, flasher warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

40

394132R91

FLASHER UNIT

FLASHER ASSEMBLY, warning light

1шт.

41

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

42

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

43

394340R91

CABLE ASSEMBLY, flasher to breakaway connector

1шт.

44

394330R1

BRACKET, rear fender flashing light

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

394473R91

CABLE ASSEMBLY, flashing warning light jumper (used to provide means of omitting flasher feature of warning light) (not part of parts accessory)

1шт.
