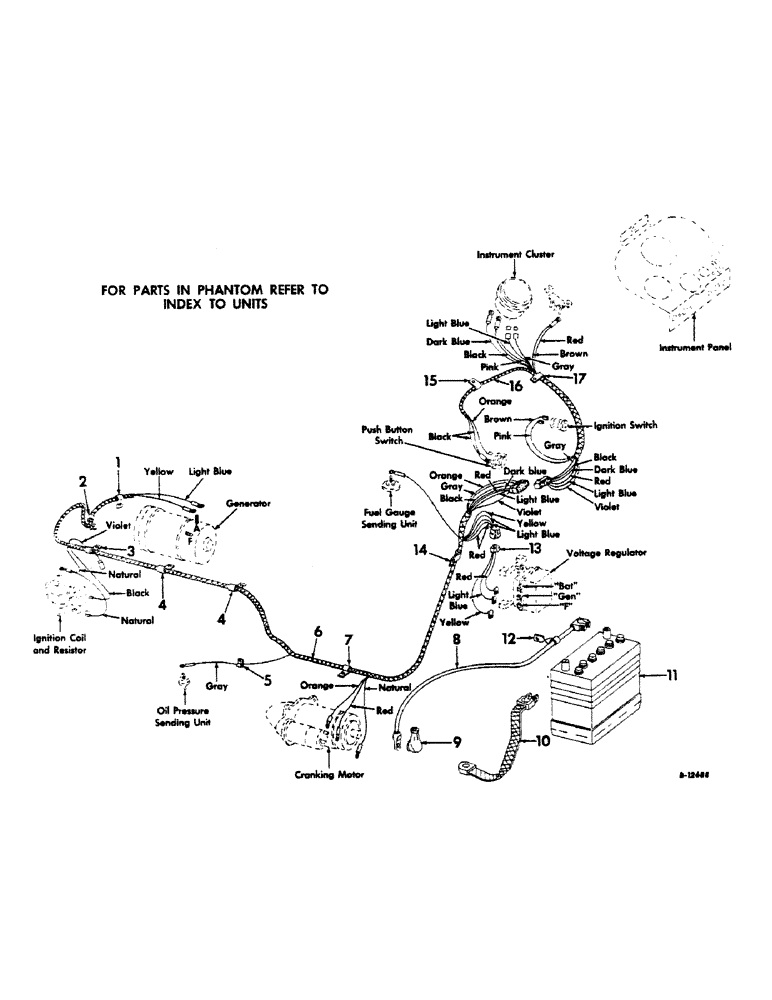

Запчасти Case IH 606 (088) - ELECTRICAL SYSTEM, IGNITION AND STARTING, CARBURETED ENGINE TRACTORS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on generator adjustment bolt)

1шт.

2

370383R1

CLIP

cable harness (on water outlet housing upper RH mounting bolt)

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on valve cover front mounting bolt)

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on center and rear valve cover bolt) (gasoline engine tractors)

2шт.

5

370535R1

CLIP

cable (on valve push rod cover lower screw)

1шт.

386871R1

WASHER, cable clip

1шт.

6

380398R91

HARNESS ASSEMBLY, cable

1шт.

7

362123R1

CLIP

cable harness (on fuel tank support LH front bolt)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

376867R91

CABLE

W/COVER AND BOLT ASSEMBLY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

9

364910R1

BOOT

COVER, solenoid terminal

1шт.

10

378326R91

CABLE

STRAP W/BOLT ASSEMBLY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

11

368879R91

BATTERY

Prestolite HS11-50 (12 volt) (gasoline engine tractors)

1шт.

11

365861R91

BATTERY, Prestolite HC11-60 (12 volt) (L.P. gas engine tractors)

1шт.

12

363660R1

CLIP

battery cable (on governor control balance spring anchor upper mounting bolt)

1шт.

13

376868R91

CABLE

ASSEMBLY, voltage regulator

1шт.

14

362123R1

CLIP

cable harness (on voltage regulator support RH mounting bolt)

1шт.

15

362121R1

CLIP

cable harness (on instrument cluster lower mounting stud)

1шт.

16

380400R91

HARNESS

ASSEMBLY, instrument panel

1шт.

17

370383R1

CLIP

cable harness (on governor control friction plate upper mounting bolt) WASHER, 17/64 x 5/8" x 18 ga

1шт.
