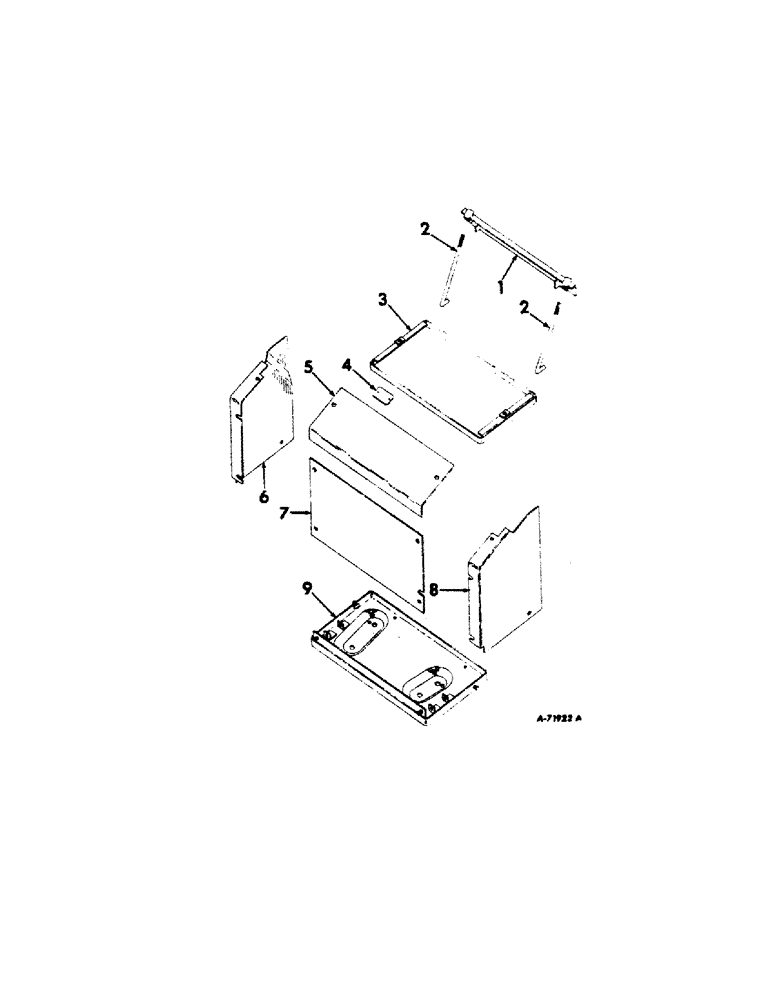

Запчасти Case IH 606 (086[A]) - ELECTRICAL SYSTEM, FRONT BATTERY HOLDER (06) - ELECTRICAL SYSTEMS

1

377836R11

CLAMP ASSEMBLY, battery hold-down

1шт.

2

377837R1

ROD

battery hold-down (carbureted engine tractors)

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x .065 ga

2шт.

3

NOT USED

1шт.

4

371372R1

PLATE, gear shift

1шт.

4

371371R1

PLATE, gear shift (tractors with torque amplifier)

1шт.

4

311270R1

PLATE, gear shift (tractors with forward and reverse drive)

1шт.

9402597

RIVET, 1/16 x 3/16" mushroom hd

2шт.

5

377841R1

COVER, battery housing top

1шт.

377681R1

SCREW, 5/16 x 3/8" slt-hex. washer-hd cap

2шт.

6

377839R11

PANEL ASSEMBLY, battery housing LH side

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 hex-washer hd cap

1шт.

7

384973R11

PANEL ASSEMBLY, battery housing rear

1шт.

120879

GROMMET,1/2" ID x 1 1/16" x .062", Diag Cut

rubber

1шт.

8

377840R11

PANEL ASSEMBLY, battery housing RH side

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd cap

1шт.

9

377833R11

BASE ASSEMBLY, battery support

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8

4шт.
